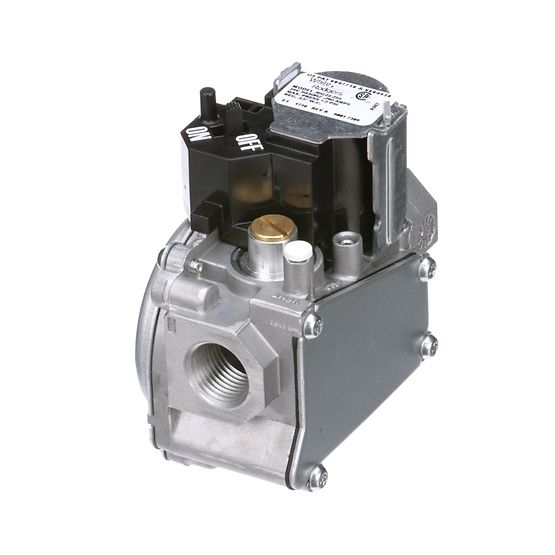

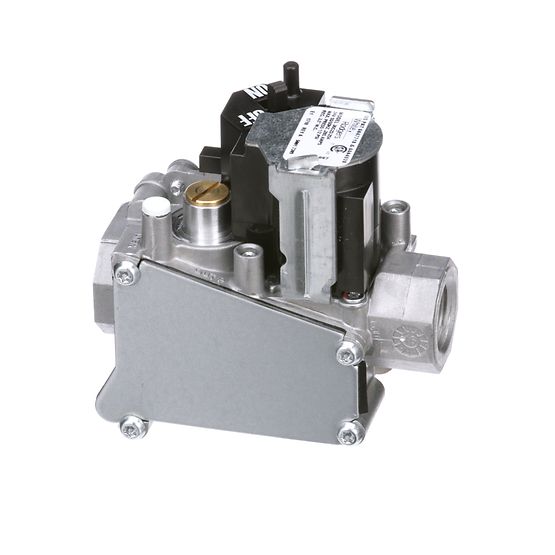

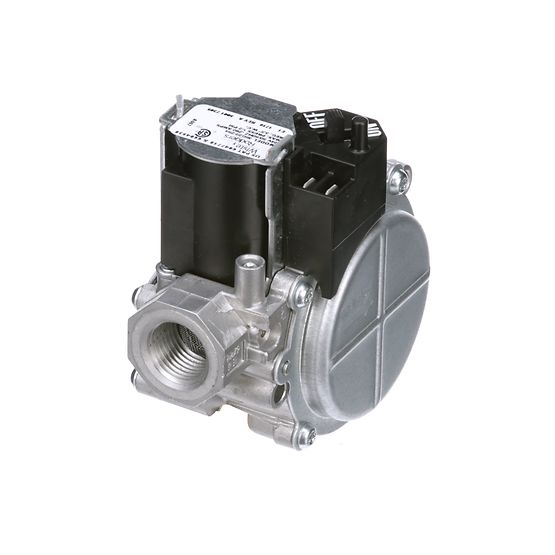

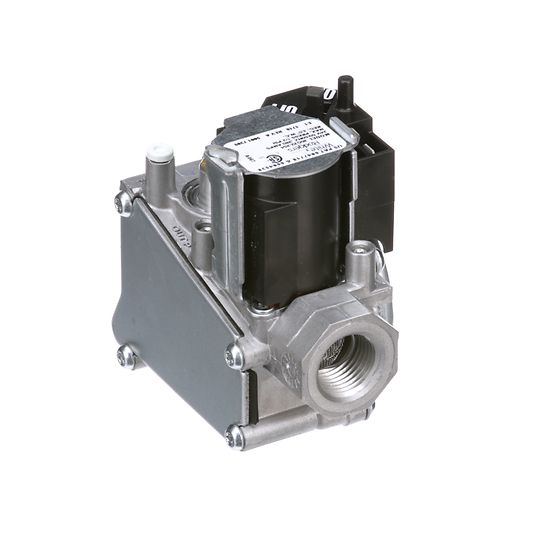

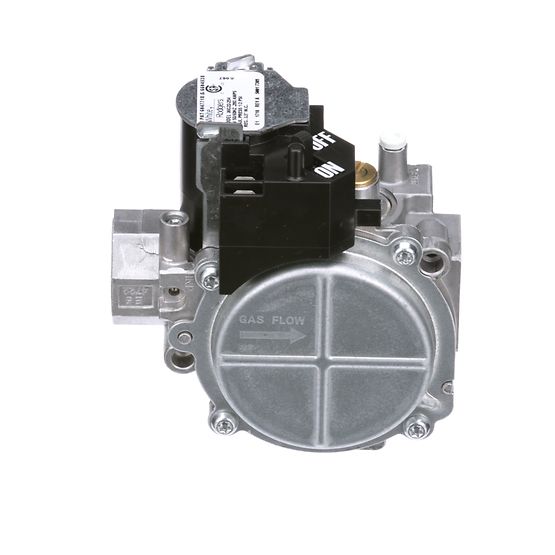

Copeland 36J55-214 Comfort Control (White Rodgers) 24v 1/2 inches Replaces 36G55-214

Product Description

The COPELAND 36J55-214 is a two-stage, slow opening gas valve designed for electronic ignition systems, including Hot Surface Ignition (HSI) and Direct Spark Ignition (DSI). This versatile combination gas valve operates on 24 Vac, 50/60Hz, and features 1/2 inch inlet and outlet connections. It is suitable for both natural gas and LP gas applications, with an LP conversion kit included for flexibility. The compact design allows for broad application use.

• Designed for Hot Surface and Direct Spark Ignition systems with a compact footprint.
• Features slow open, two-stage operation for precise control.
• Includes an LP conversion kit and reducer bushing kit for versatile installation.

Product Highlights

Compact two-stage gas valve for HSI/DSI systems, offering slow opening and LP conversion capability.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: 36J55-214
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: 36J55-214
• Brand: COPELAND
• Body Style: Straight Thru
• Nominal Capacity: LP: 226,800 BTU/hr @ 1" Pressure Drop, NG: 140,000 BTU/hr @ 1" Pressure Drop
• Electrical Rating: 24 Vac, 50/60Hz
• Ignition Type: Direct Spark (DSI), Hot Surface (HSI)
• Inlet x Outlet Size: 1/2" X 1/2"
• LP Conversion Kit Included: Yes
• Opening Style: Slow Opening
• Pressure Taps: Inlet / Outlet (Yes / Yes)
• Reducer Bushing Kit Included: Yes
• Regulator Adjustment Range: LP: 4.0 to 10.0" W.C. (Low), LP: 6.0 to 12.0" W.C. (High), NG: 1.0 to 4.0" W.C. (Low), NG: 2.0 to 5.0" W.C. (High)
• Regulator Setting: 1.5" W.C. (Low), 3.5" W.C. (High)
• Replacement Type: Universal Replacement
• Side Taps: No
• Stages: Two-Stage
• Replaces Models: 0002-42-169, 36E55-218, 36E55-221, 36E55-222, 36E55-223, 36E55-224, 36E55-254, 36E99-201, 36E99-202, 36G54-508, 36G55-214, 36G55-221, 36G55-222, 36G55-223, 36G55-224, 36G55-225, 36G55-226, 36G55-260, 36G55-501, 36G55-503, 36G55-521, 36G55-522, 36G55-523, 36G55-524, 36G55-503, 36G55-504, 60-101921-01, EF33CW184, EF33CW205, EF33CZ201
• Fuel Type: Natural LP
