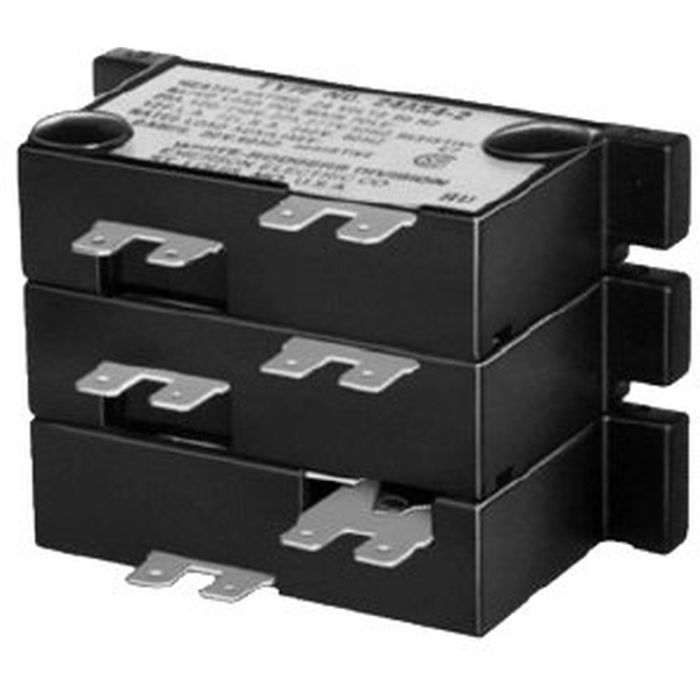

Copeland 24a55-1 Electric Heat Sequencer 2 Main 1 Aux Switch

Product Description

The Copeland 24a55-1 is an electric heat sequencer designed for use in electric furnaces and air handler systems that rely on staged electric resistance heating. This sequencer controls the order and timing in which electric heating elements are energized, helping to prevent voltage sags, tripped breakers, and excessive demand loads that occur when multiple high-draw elements activate at the same instant. The 24a55-1 features two main switches and one auxiliary switch, giving HVAC technicians the flexibility to manage multiple heating stages and auxiliary functions from a single, reliable component. Electric heat sequencers like the 24a55-1 are a critical part of any staged electric heating system. When a thermostat calls for heat, the sequencer receives a low-voltage signal and then uses a bimetal element or resistance heater to time the activation of each heating stage. This staged startup reduces inrush current, protects the electrical supply, and extends the service life of heating elements and contactors. The 24a55-1 is sold as an individual unit and is compatible with a wide range of electric furnaces and heat pump air handlers that use sequencer-based staging. HVAC technicians, heating contractors, and electrical service professionals rely on this type of sequencer for both new installations and replacement service work. Whether you are troubleshooting a no-heat call, replacing a failed sequencer, or building out a staged electric heat system, the Copeland 24a55-1 delivers consistent, repeatable switching performance. It is a direct-fit solution for systems requiring two main switch contacts and one auxiliary switch contact in a compact sequencer package.

• Two main switches plus one auxiliary switch for multi-stage electric heat control
• Staged element activation reduces inrush current and protects circuit breakers
• Sold individually, suitable for replacement or new installation applications

Product Highlights

The Copeland 24a55-1 electric heat sequencer provides reliable staged switching for electric furnace and air handler heating systems, featuring two main contacts and one auxiliary contact to manage multi-stage heat loads safely and efficiently.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: 24a55-1

Technical Specifications

• Product Type: Electric Heat Sequencer
• Switch Configuration: 2 Main Switches, 1 Auxiliary Switch
• Pack Size: 1 Each
• Unit of Measure: Each
