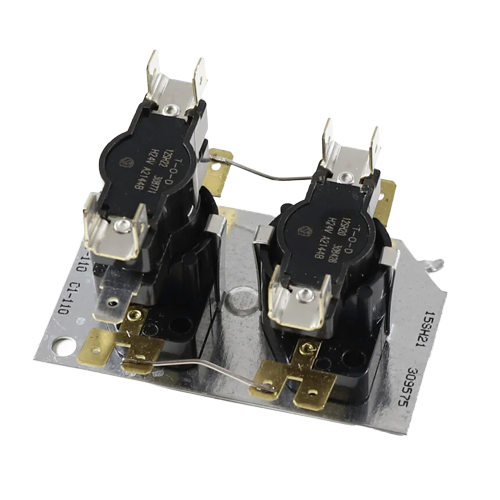

Copeland 24A34-5 electric heat sequencer 3 switch 24V 125 VA 110 sec on

Product Description

The COPELAND 24A34-5 is an electric heat sequencer designed for HVAC systems, specifically to control the staging of electric heating elements. This 3-switch device operates at 24V and features a 110-second on-delay, ensuring elements are energized and de-energized in a controlled sequence. It helps reduce electrical load spikes, improve system efficiency, and coordinate blower operation in electric furnaces and air handlers. With a 125 VA rating, it functions reliably within a temperature range of -50 to 165 Degree F.

• Controls staged energizing of electric heating elements in HVAC systems.
• Features 3 switches and a 110-second on-delay for precise operation.
• Operates within a temperature range of -50 to 165 Degree F.

Product Highlights

Reliable electric heat sequencer for HVAC system efficiency and load management.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: 24A34-5

Technical Specifications

• Brand: COPELAND
• MPN: 24A34-5
• Reference ID: COPELAND24A345
• Type: Electric Heat Sequencer
• Number of Switches: 3
• VA Rating: 125 VA
• Temperature Range: -50 to 165 Degree F
