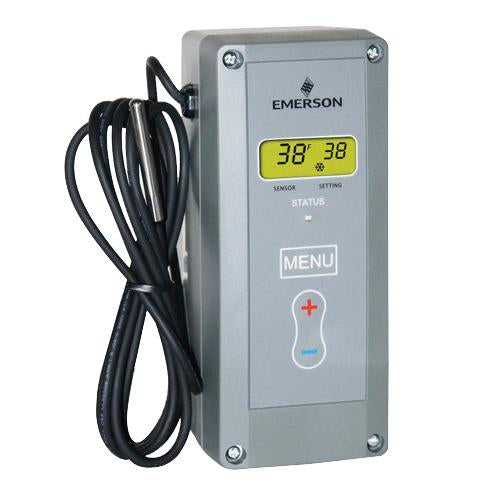

Copeland 16E09-101 Digital Refrigeration Temperature Control

Product Description

Copeland 16E09-101 is a digital refrigeration temperature control with an accompanying installation and operator instruction manual for the 241-2, 1605-64 and 1609 series. The documentation details parameters, configuration, settings, wiring guidelines, precautions and setup procedures. The controller supports multi-voltage operation (24/120/208/240 VAC), uses an NTC thermistor sensor, provides SPDT switching and contacts rated for 16 A at 120 VAC.

• Covers configuration, parameter settings, wiring guidelines, installation and operator instructions for refrigeration controllers
• Multi-voltage input 24/120/208/240 VAC with SPDT output and NTC thermistor sensing element; contacts rated 16 A at 120 VAC
• Temperature setpoint range -40 to 220 deg F with differential 1 to 30 deg F; enclosed in NEMA 1 housing

Product Highlights

Installation and operator manual for Copeland 16E09-101 digital refrigeration controller; multi-voltage SPDT control with NTC sensor and 16 A contact rating

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: 16E09 101

Technical Specifications

• Brand: Copeland
• Manufacturer: Copeland LP
• MPN: 16E09-101
• Product Type: Digital refrigeration temperature control
• Document Type: Installation and operator instruction manual
• Related Series: 241-2, 1605-64, 1609
• Language: English
• Input Voltage: 24/120/208/240 VAC
• Configuration: SPDT
• Switching Action: Close on rise / Open on rise
• Sensing Element: NTC thermistor
• Contact Rating: 16 A at 120 VAC non-inductive; 16 A full load; 96 A locked rotor at 120 VAC; 1 hp
• Differential Temperature Range: 1 - 30 deg F
• Temperature Setpoint Range: -40 to 220 deg F
• Enclosure Rating: NEMA 1
• Dimensions: 3 in L x 6-3/4 in H x 2-9/16 in W
• Operating Temperature: -29 to 140 deg F
• UPC: 786710530593
