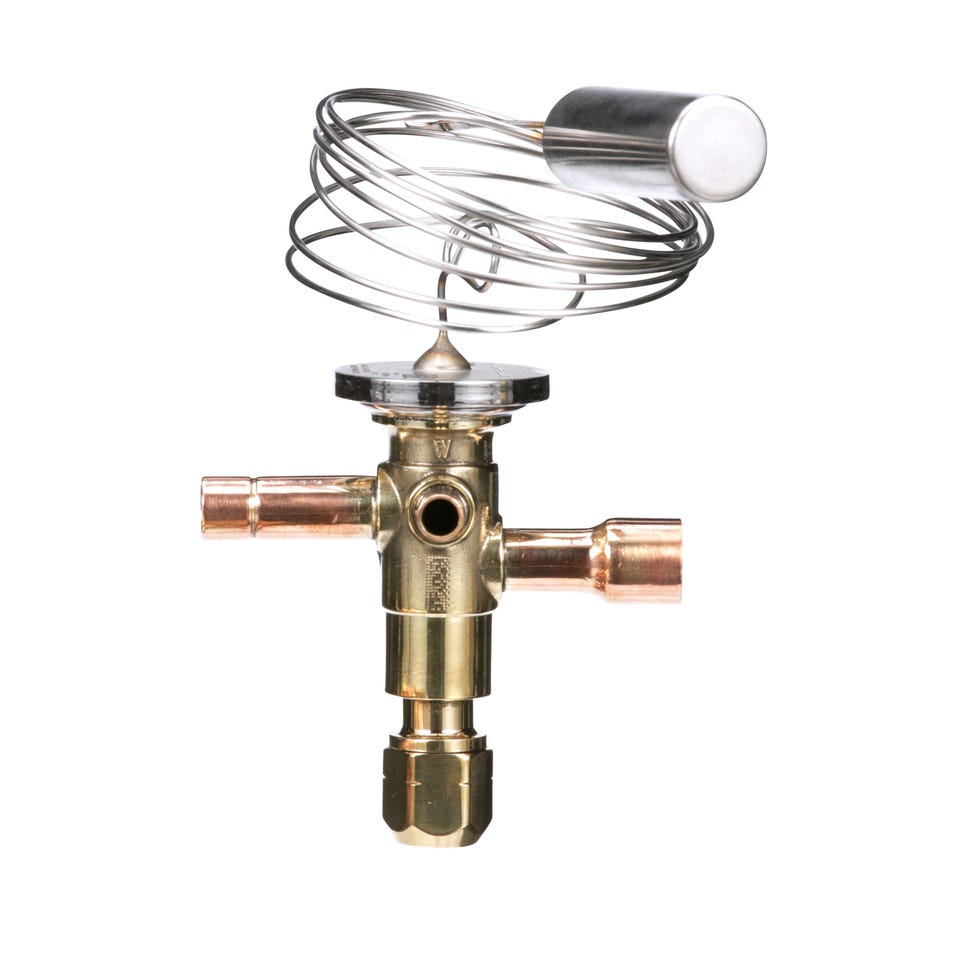

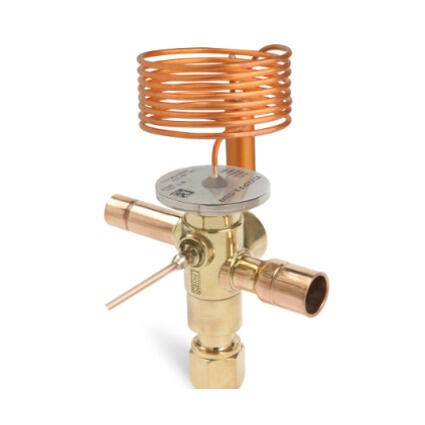

Copeland 091022 NXT Series Thermostatic Expansion Valve 3 Ton

Product Description

The Copeland 091022 NXT Series thermostatic expansion valve is designed for high-efficiency R-410A and R-454B air conditioning and heat pump applications. This balanced ported valve operates over a wide range of conditions, offering excellent performance and superior reliability. It features adjustable superheat and a straight-through body with a 1/4" ODF external equalizer.

• Optimized for R-410A systems and R-454B refrigerants.
• Stainless steel power element eliminates corrosion.
• Bi-directional capability for cooling and heating modes.

Product Highlights

The Copeland NXT Series valve provides precise superheat control and extended valve life, ensuring reliable performance in various applications.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: 091022

Technical Specifications

• Refrigerant Code: Z (R-410A)
• Inlet Connection: 3/8" ODF
• Outlet Connection: 1/2" ODF
• Equalizer: External (1/4” ODF)
• Product Family: NXT Series Thermostatic Expansion Valves
• Capillary Length [inches]: 60
• Body Material: Brass
• Model Number: NBE 3ZAA-11
• Operating Temperature Range [°F]: R-410A: -20 to 50
• Maximum Working Pressure MWP [psig]: 700
• Inlet Outlet X [in]: 3/8 x 1/2
• Body Style: Direct
• Superheat: Adjustable
• Warranty Period: 1 Year
• Charge Code: AA (extended range)
