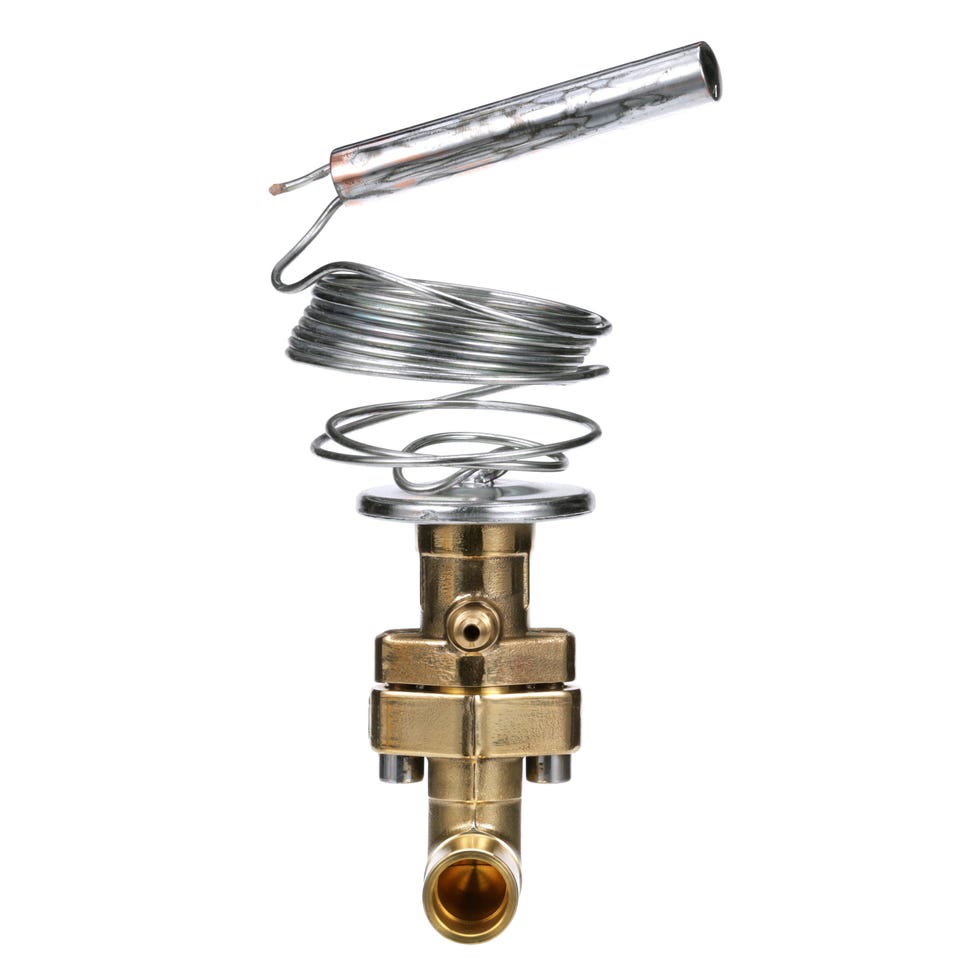

Copeland 061724 Tcle 2Hc-03, T-Series Take-Apart Thermostatic Expansion Valve

Product Description

The COPELAND 061724 Tcle 2Hc-03, T-Series Take-Apart Thermostatic Expansion Valve features adjustable superheat and replaceable, interchangeable components. It is suited for original equipment and field replacements in air conditioning, heat pump, and refrigeration applications. The valve has a maximum working pressure of 450 psig and a 60 inch capillary length.

• Take-Apart construction for easy field service
• External superheat adjustment
• Bi-directional capability
• Stainless steel power assembly

Product Highlights

This T-Series thermostatic expansion valve offers easy field service with its take-apart construction and external superheat adjustment.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: 061724

Technical Specifications

• Bleed: No
• Body Material: Brass
• Body Style: Valve Less Flange
• Capillary Length [in]: 60
• Equalizer: External
• Family: T-Series Take-Apart Thermostatic Expansion Valves
• Inlet Connection: Valve Less Flange
• Maximum Working Pressure MWP [psig]: 450
• Model Number: TCLE 2HC-03
• Outlet Connection: Valve Less Flange
• Product Family: T-Series Take-Apart Thermostatic Expansion Valves
• Superheat: Adjustable
