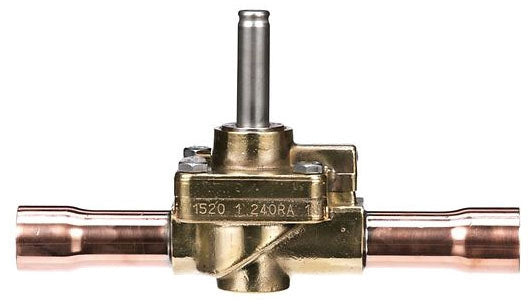

Copeland 043204 240RA-9-T-7-M Emerson Solenoid Valve

Product Description

The Copeland 043204, recognized as the 240RA-9-T-7-M Emerson Solenoid Valve, is a two-way diaphragm valve engineered to control refrigerant flow efficiently. Its design includes extended ends for straightforward installation. The valve is built with long-life molded coils, which enhance its durability and reliability in various applications.

• Diaphragm, two-way solenoid valve
• Suitable for liquid, suction, and hot gas service
• Features PTFE O-ring for superior sealing

Product Highlights

This solenoid valve is a reliable component for refrigeration and HVAC systems. It is versatile enough to handle liquid, gas, and pressure applications effectively.

Product Information

Standard Information

• Type: Diaphragm, 2-Way
• Applicable Standard: UL/CUL

Technical Specifications

• Application: Liquid, suction, and hot gas service
• Inclusions/Features: PTFE O-ring, long life molded coil, extended end
• Pressure Rating: 500 PSIG
• Temperature Rating: 250 Deg F
• Media Handled: Liquid, gas
• Port Connection: 9/16 inch
• Valve Position: NC
• Mounting Details: Manual stem
