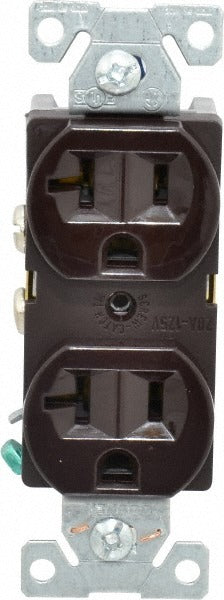

Cooper Wiring Devices BR20B Duplex Receptacle 20A Nema 5-20R

Product Description

The COOPER WIRING DEVICES BR20B is a specification-grade straight blade duplex receptacle rated for 20 amps at 125 volts AC. It is configured to NEMA 5-20R and features a self-grounding design that simplifies installation in metal device boxes by eliminating the need for a separate ground wire to the box. The flush-mount, 2-pole, 3-wire construction suits standard residential and light commercial electrical rough-in. Licensed electricians install this receptacle in branch circuits that serve higher-draw loads such as kitchen appliances, shop equipment, and office workstations where the T-slot 5-20R configuration is required by code.

The BR20B is appropriate for single-phase, 125-volt branch circuit applications requiring a 20-amp outlet. Back and side wiring options accommodate both push-in and screw-terminal field connections, giving installers flexibility across different wiring methods and panel schedules. The brown color finish suits environments where a neutral tone is preferred over standard ivory or white. This receptacle is suited for use in commercial offices, light industrial spaces, residential kitchens, and any location where a NEMA 5-20R outlet is specified on the electrical drawings.

Key Features

• NEMA 5-20R T-slot configuration accepts both 5-15 and 5-20 plugs
• Specification grade construction for demanding commercial and industrial installations
• Self-grounding design bonds to metal device box without a separate ground pigtail
• Back and side wiring method supports screw-terminal and quick-connect field installation
• Flush mount profile fits standard single-gang electrical boxes
• CSA Certified, UL Listed, and RoHS compliant for broad project compliance

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation duplex receptacle for standard single-gang flush-mount electrical boxes wired for 20-amp, 125-volt, single-phase branch circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before beginning work. Torque all screw terminals per the torque value marked on the device body or listed in the product documentation. Confirm the box grounding path is intact before relying on the self-grounding feature.
