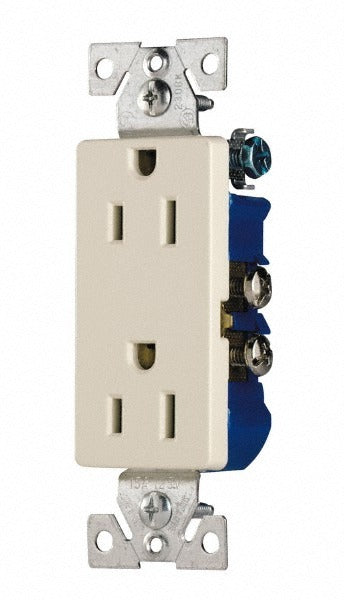

Cooper Wiring Devices 1107W Duplex Receptacle Nema 5-15R 15A

Product Description

The COOPER WIRING DEVICES 1107W is a straight blade duplex receptacle rated for 15 amps at 125 volts AC with a NEMA 5-15R configuration. Built for residential-grade applications, it features a self-grounding design and a flush-mount thermoplastic body rated for impact resistance and tamper resistance. The 1107W accepts both push-in and side-wiring terminations, giving installers flexibility during rough-in or device swap-outs. Licensed electricians performing residential service or new construction installs will find this a straightforward drop-in for standard single-gang boxes.

This receptacle is suited for residential electrical installations including bedroom, living room, kitchen, and utility outlet circuits operating on standard 120-volt single-phase branch circuits. The white finish blends with common wall plate colors used in residential construction. Its single-phase, two-pole, three-wire design covers the vast majority of standard 15-amp household outlet applications.

Key Features

• NEMA 5-15R configuration rated at 15 amps and 125 volts AC
• Self-grounding design eliminates need for a separate grounding clip during install
• Accepts push-in and side-wiring termination methods
• Impact-resistant and tamper-resistant thermoplastic body
• Flush-mount profile fits standard single-gang wallboxes
• cULus Listed and NOM 426 compliant

Compatibility

Designed as an OEM-style replacement or new-construction duplex receptacle for residential 15-amp, 125-volt AC single-phase branch circuits wired to NEMA 5-15R outlet requirements.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the branch circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before beginning work. Push-in terminations are acceptable for solid or stranded wire within the device rating; side-screw terminations are generally preferred for code compliance in many jurisdictions. Do not exceed the 15-amp amperage rating of the device.
