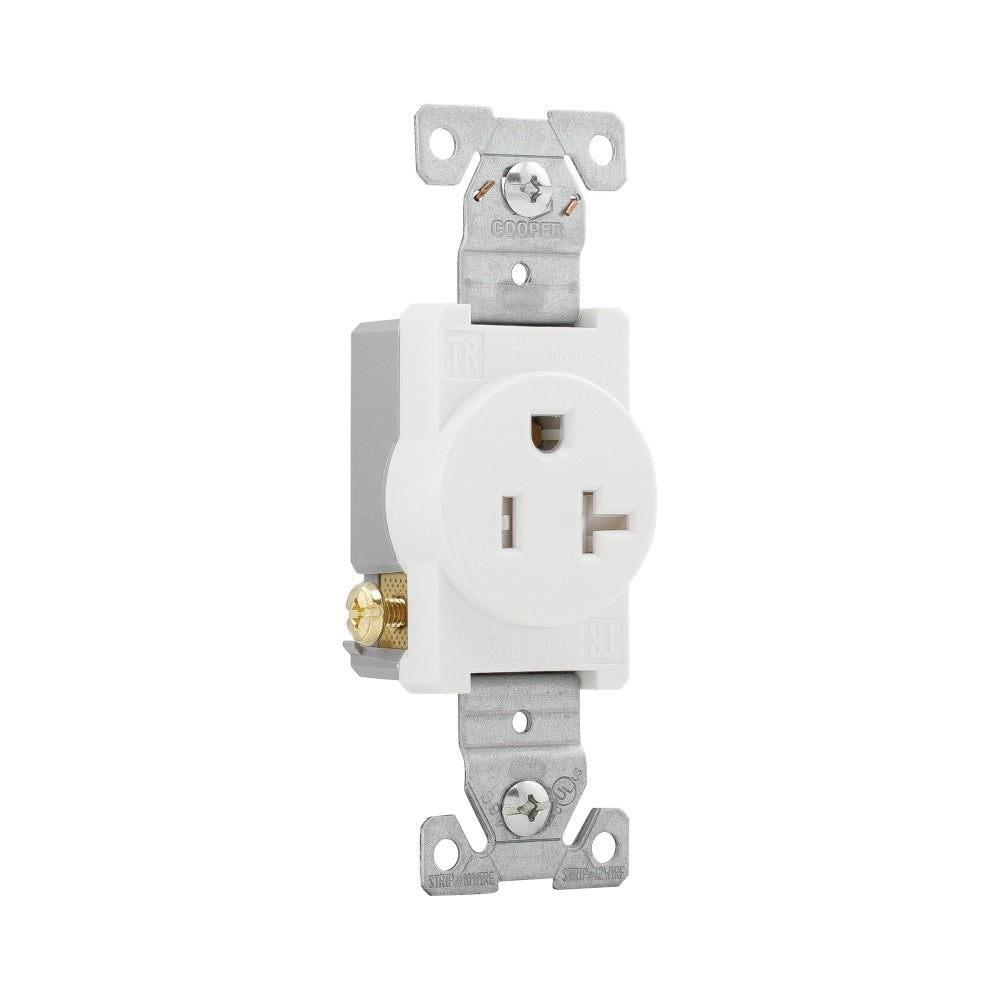

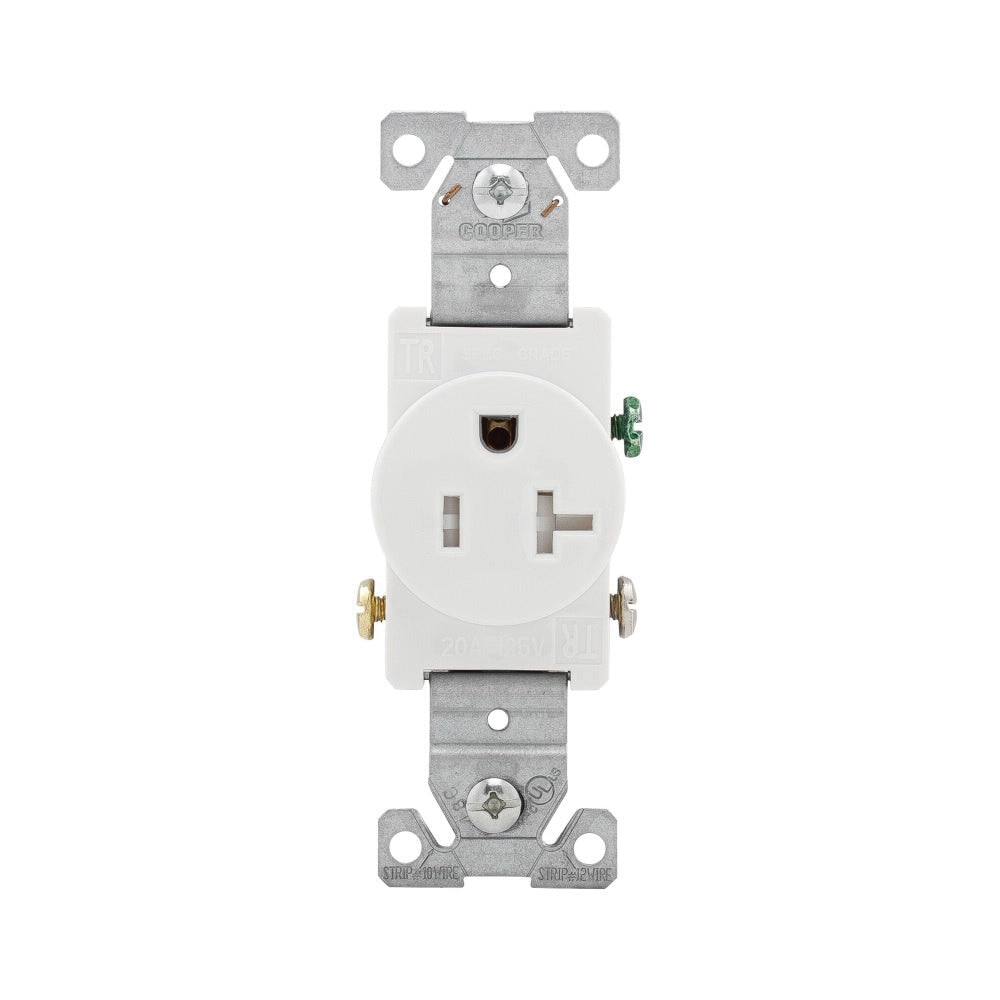

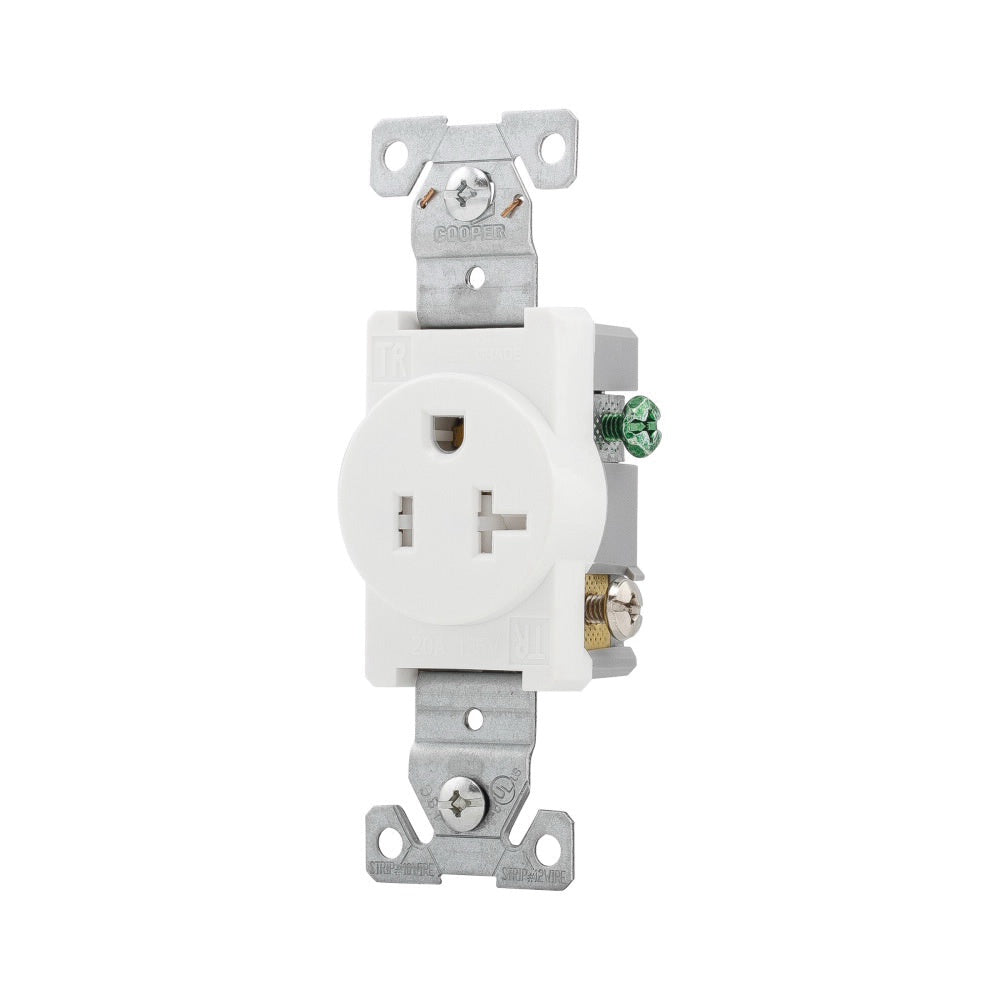

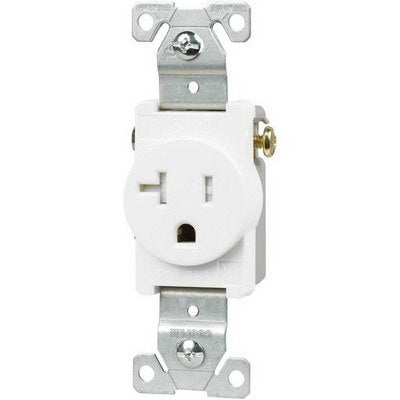

Cooper Wiring Device TR1877W-BXSP Commercial Grade Tamper-Resistant Straight Blade Single Receptacle 20-Amp 125-Volt AC NEMA 5-20R

Product Description

The Cooper Wiring Device TR1877W-BXSP is a commercial grade tamper-resistant straight blade single receptacle. It is rated for 20 amps and operates at 125 volts AC. This receptacle is designed for reliable use in various commercial settings.

• Tamper-resistant design for increased safety
• Durable thermoplastic body and face for longevity
• Meets UL E15058 standards for quality assurance

Product Highlights

This receptacle is compliant with 2008 NEC Article 406.11, ensuring that all receptacles installed in dwelling units must be tamper-resistant. It features a galvanised steel mounting strap for secure installation.

Product Information

Standard Information

• Brand: Cooper Wiring Device
• Manufacturer Part Number: TR1877W-BXSP

Technical Specifications

• Voltage Rating: 125 Volt AC
• Amperage Rating: 20 Amp
• Temperature Rating: -20 to 70 degrees Celsius
• Dielectric Strength: 2000 Volt
• NEMA Configuration: NEMA 5-20R
• Number of Wires: 3
• Dimensions: 1.3 inches in width, 1.1 inches in depth, and 4.19 inches in height
• Grounding: Grounding
• Strap Material: Galvanized Steel
• Contact Material: Brass Alloy
