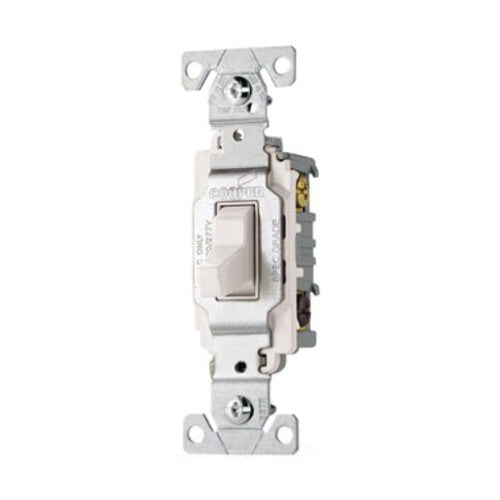

Cooper Wiring Device CS320W 3-Pole 120/277-Volt AC 20-Amp 3-Way Commercial/Specification Grade AC Toggle Quiet Switch White

Product Description

The Cooper Wiring Device CS320W is a 3-pole, 3-way AC toggle quiet switch. It is rated for 120/277 volts AC and can handle up to 20 amps. The switch is designed with a nylon toggle and a PVC body to ensure durability. Its dimensions are one point three inches wide, zero point nine zero two inches deep, and four point two inches high. The switch features a side wired terminal connection and can accommodate terminal sizes of fourteen to ten AWG.

• Dielectric strength of fifteen hundred volts.
• Maximum load capacity of one horsepower at 120 volts AC and two horsepower at 277 volts.
• UL/cULus listed, RoHS compliant, and meets various federal specifications.

Product Highlights

This switch is ideal for fluorescent lighting fixtures in commercial settings. Operating temperature ranges from negative twenty to sixty degrees Celsius. It is rated V-0 according to UL94 for flammability, which means it can withstand harsh environments.

Product Information

Standard Information

• Manufacturer: Cooper Wiring Device
• Country of Origin: United States of America

Technical Specifications

• MPN: CS320W
• Amperage Rating: 20 Amp
• Voltage Rating: 120/277 Volt AC
• Dimensions: 1.3 Inch Width x 0.902 Inch Depth x 4.2 Inch Height
• Environmental Conditions: V0 Flammability Rated Per UL94
• Maximum Load Capacity: 1 hp at 120 Volt AC, 2 hp at 277 Volt
• Material: PVC Body, Nylon Toggle
• Grounding: Grounding
