Cooper Wiring Device AHDS30AC 3-Pole Non-Fused Motor Control Disconnect Switch 600-Volt AC 30-Amp NEMA 4X Arrow Hart

Product Description

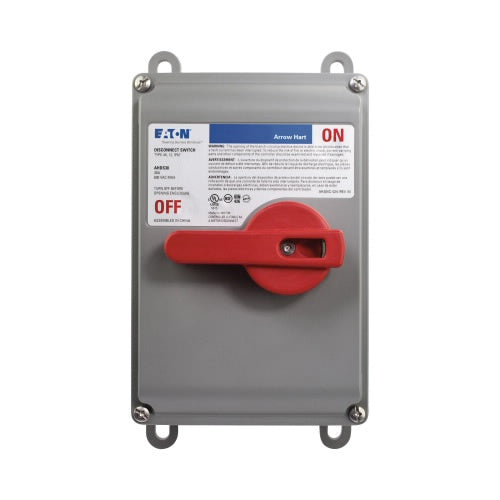

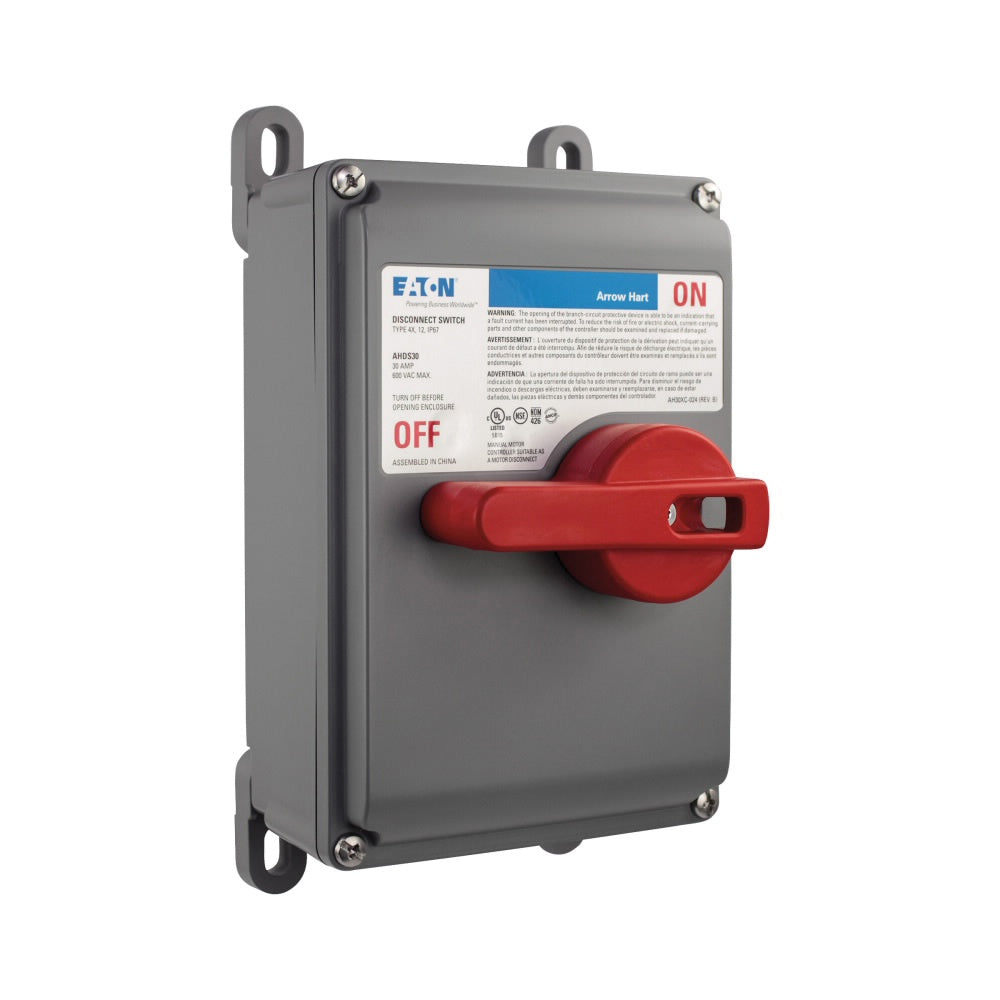

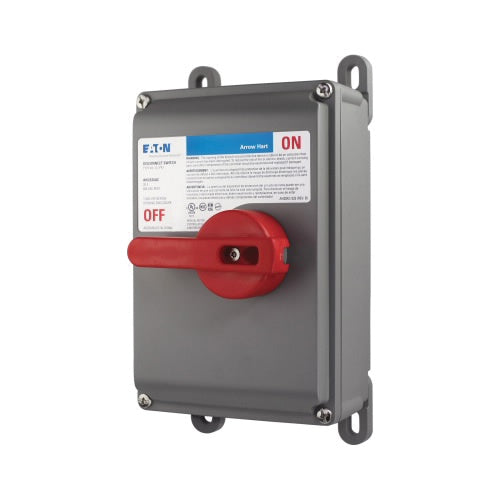

The Cooper Wiring Device AHDS30AC is a 3-pole non-fused motor control disconnect switch. It has a voltage rating of six hundred volts AC and a current rating of thirty amps. This switch features a thermoplastic enclosure made from VALOX resin for high impact strength and corrosion resistance.

• Non-fusible type with a size of six point eighteen inches width by four point seventy-four inches width by nine point seventy-six inches height
• High-visibility red handle that can be padlocked for OSHA compliance
• Designed for industrial applications with NEMA 4X enclosure rating

Product Highlights

This disconnect switch is suitable for various industrial applications. Its thermoplastic construction allows for durability under harsh conditions.

Product Information

Standard Information

• Brand: Cooper Wiring Device
• Country of Origin: China

Technical Specifications

• Voltage Rating: 600 Volt AC
• Amperage Rating: 30 Amp
• Number of Poles: 3
• Enclosure: NEMA 4X
• Operating Temperature Range: -50 to 60 deg C
• Dimensions: 8-3/4 Inch Length x 5 Inch Width x 5.68 Inch Height
• Degree of Protection: IP67
• Mounting: Offset/Flush
