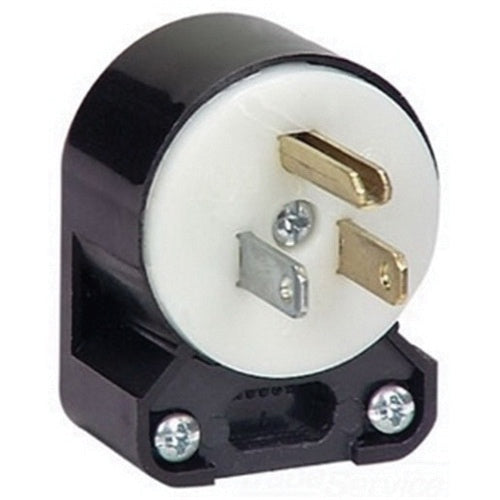

Cooper Wiring Device 5266AN 3-Wire 2-Pole Angled Industrial Specification Grade Straight Blade Plug 125 Volt AC 15 Amp

Product Description

The Cooper Wiring Device 5266AN is a 3-wire, 2-pole angled industrial specification grade straight blade plug designed for durability and high performance. This plug is rated for 15 amps and operates at 125 volts AC. It features a screw terminal connection, accepting conductors sized between eighteen and twelve AWG, and cords ranging from point twenty-five to point sixty-nine inches.

• Thermoplastic housing with easy-grip grooves
• Dielectric strength rated at 1000 volts
• NEMA 5-15P configuration for standard applications

Product Highlights

This angled plug is made from high-impact resistant thermoplastic and is designed for heavy-duty use.

Product Information

Standard Information

• Brand: Cooper Wiring Device
• Country of Origin: Mexico

Technical Specifications

• Dimensions: 1.42 inches width x 1.25 inches depth x 1.95 inches height
• Amperage Rating: 15 amps
• Voltage Rating: 125 volt AC
• Conductor Size: 18-12 AWG
• Cord Size: 0.25 - 0.69 inches
• Dielectric Strength: 1000 volts
• NEMA Configuration: NEMA 5-15P
• Temperature Range: -40 to 75 degrees Celsius
