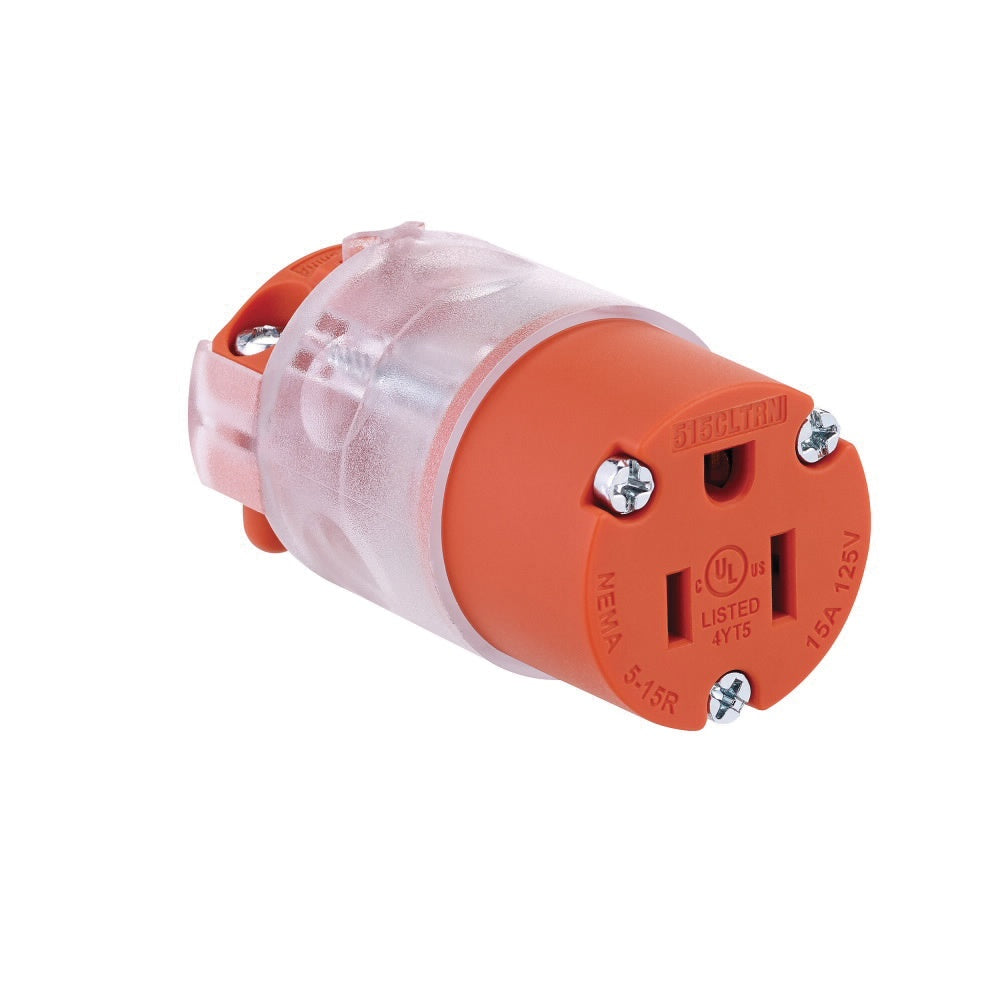

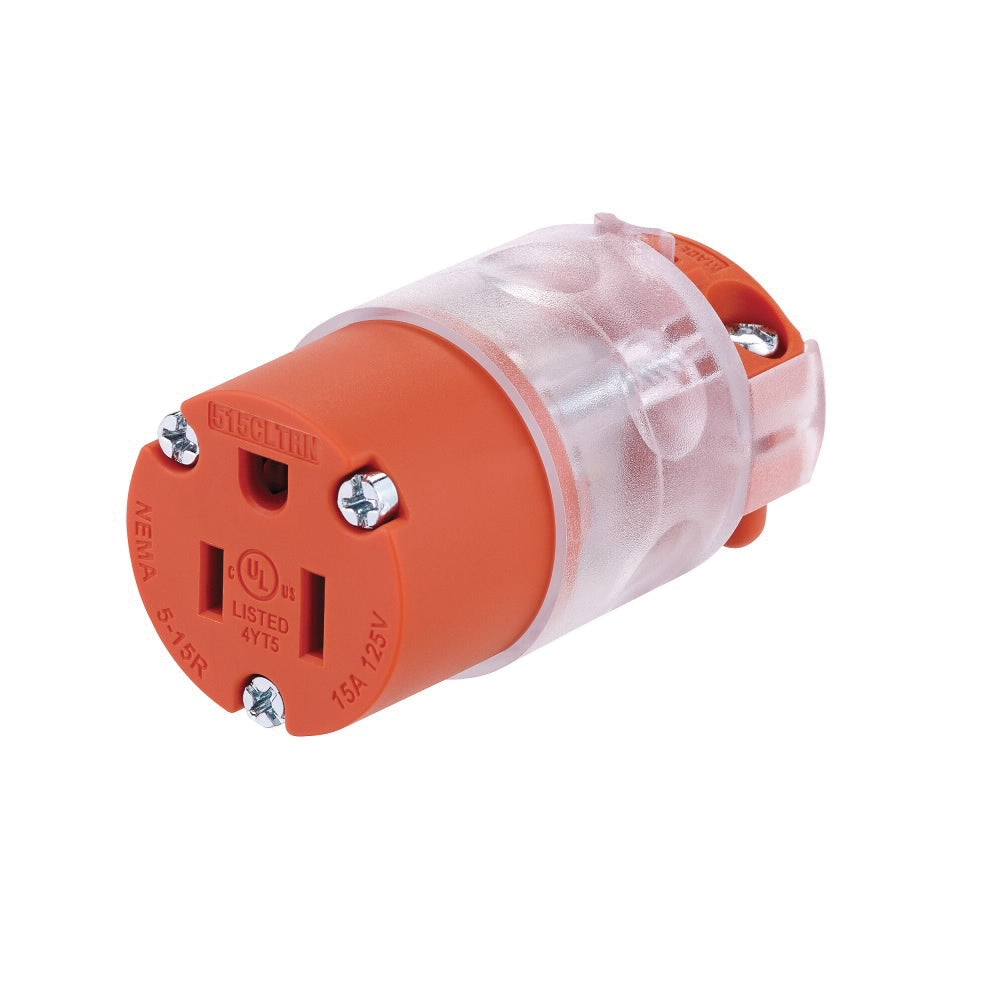

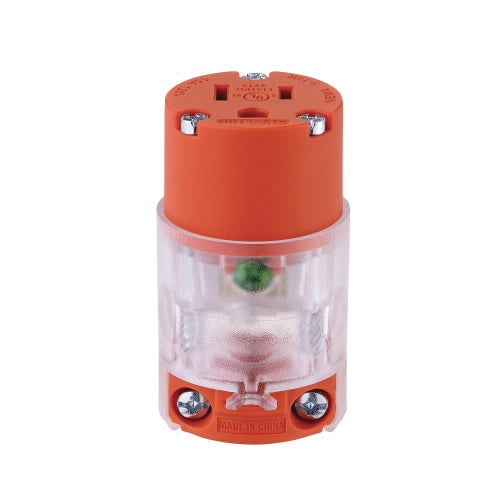

Cooper Wiring Device 515CLTRN 3-Wire 2-Pole Commercial and Residential Grade Lighted/Power Indicating Straight Blade Connector 125-Volt AC 15-Amp NEMA 5-20R

Product Description

The Cooper Wiring Device 515CLTRN is a lighted power indicating straight blade connector designed for both commercial and residential applications. This unit provides visual feedback when power is flowing, thanks to its built-in LED indicator.

• LED lights up when devices are properly wired and powered.
• Features embedded cord grips for secure clamping and retention.
• Accepts various screw types for installation ease.

Product Highlights

This connector is ideal for creating reliable extension cords or as a safe replacement in existing systems.

Product Information

Standard Information

• Brand: Cooper Wiring Device
• Part Number: 515CLTRN

Technical Specifications

• UPC: 03266476658
• Number of Wires: 3
• Number of Poles: 2
• NEMA Configuration: NEMA 5-20R
• Material: Nylon Body and Face
• Dimensions: 1.52 inches diameter by 2.71 inches length
• Contact Material: Brass
• Conductor Size: 18-12 AWG
• Amperage Rating: 15 Amp
• Voltage Rating: 125 Volt AC
• Standards: cULus Listed, RoHS Compliant
