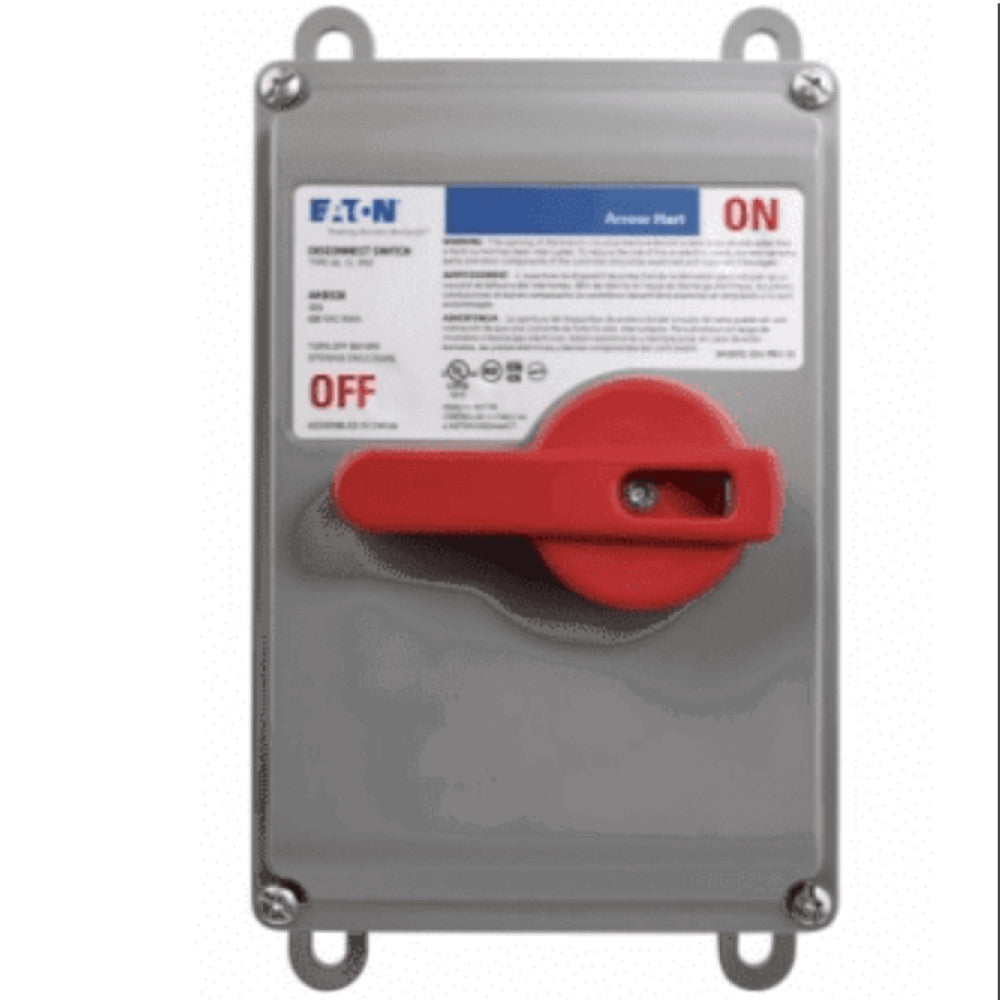

Cooper Wiring AHDS30 Motor Control Disconnect Switch 30A

Product Description

The COOPER WIRING AHDS30 motor control disconnect switch is designed for industrial applications. Rated at 30A and 600V, this three-pole, three-phase rotary switch features a VALOX thermoplastic enclosure with NEMA 4X protection for washdown environments. It supports #14-10 AWG wiring and offers flush or DIN rail mounting options.

• Rated for 30A and 600V
• NEMA 4X enclosure for washdown environments
• Suitable for industrial applications

Product Highlights

Industrial motor control disconnect switch with NEMA 4X protection and versatile mounting options.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AHDS30
• Country of Origin: United States

Technical Specifications

• Catalog Number: AHDS30
• UPC: 032664741326
• Product Length/Depth: 8.75 in
• Product Height: 5 in
• Product Width: 5.68 in
• Compliances: RoHS Compliant
• Certifications: cULus Listed
• Product Type: Motor control disconnect switch
• NEMA Rating: NEMA 4X
• Enclosure: NEMA 4X
• Type: Motor control disconnect switch
• Amperage Rating: 30A
• Voltage rating: 600 V
• Number of poles: Three-pole
• Phase: Three-phase
• Enclosure material: VALOX thermoplastic
• Application: Industrial
• Device grade: Industrial
• Environmental conditions: Complex Washdown
• Switch type: Rotary switch
• Mounting method: Flush or 1/4 in spacing Mounting feet/DIN rail
• Allowable wire size: #14-10 AWG
• Material: Thermoplastic
• Manufacturer Part Number: AHDS30
• Manufacturer: Eaton
• Product Series: AHDS
• Family Series: Eaton Disconnect Switches, AHDS Series
• Poles: 3
• Current Rating: 30 A
• AC Voltage: 600 VAC
• Operator Type: Pistol - Red
• Fusible: No
• Enclosure Composition: Non-Metallic
• Approvals: cULus
• Flammability rating: UL 94 5VA2
• Temperature rating: Max continuous +60C (+140F) _ Min continuous (without impact) -50C (-58F)
• Horsepower rated: See catalog numbers table
• Conductors: #10 to #14 AWG, solid or stranded 75C Cu
• UV resistance: Ennclosure materials are UV stabilized
• Dielectric voltage: 2.2kA AC minimum
• Manufacturer-Brand: Cooper
• Brand: COOPER wiring
• Country of Origin: United States
• MODEL: AHDS30
• SKU: 2848145
