Cooper Wiring AH460P9WDR Eaton Arrow Hart pin and sleeve plug 60/63A

Product Description

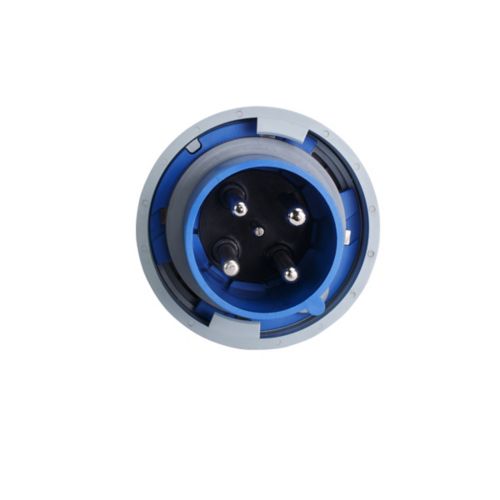

The COOPER WIRING AH460P9WDR is an Eaton Arrow Hart pin and sleeve plug. Rated IP69K, this three-pole, 4-wire plug supports 60A at 250V and 63A at 200-250V. It accommodates cable diameters from 0.66-1.5in (1.68-3.81cm) and wire sizes from #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot).

• IP69K Rated
• Nickel plated brass contacts
• Nylon face/body material

Product Highlights

The AH460P9WDR pin and sleeve plug is ideal for industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH460P9WDR

Technical Specifications

• Product Name: Eaton Arrow Hart pin and sleeve plug
• Catalog Number: AH460P9WDR
• UPC: 032664007026
• Product Length/Depth: 9.26 in
• Product Height: 4.45 in
• Product Width: 4.45 in
• Product Type: Pin and Sleeve plug
• Special features: IP69K Rated
• Type: Plug
• Amperage Rating: 60/63A
• Voltage rating: 60A 250V/63A 200-250V
• Contact material: Nickel plated brass
• Number of wires: 4
• Grounding: Grounding
• Number of poles: Three-pole
• Cable diameter: 0.66-1.5in (1.68-3.81cm)
• Environmental resistance: IP69K IP67
• Allowable wire size: #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot)
• Design type: Pin and sleeve plug
• Face/body material: Nylon
