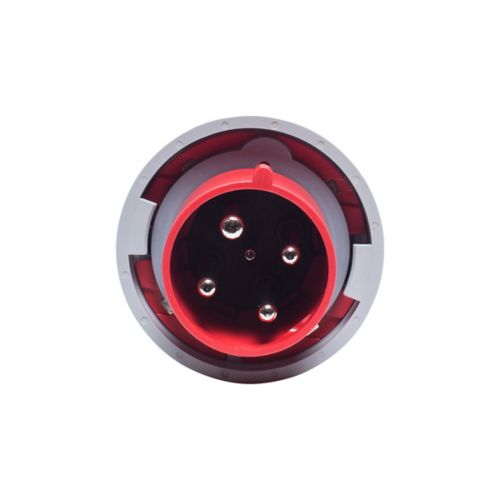

Cooper Wiring AH460P7W Pin and Sleeve Plug 60A 480V

Product Description

The COOPER WIRING AH460P7W is an Eaton Arrow Hart pin and sleeve plug. Rated IP69K, it supports #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), 60A, 3 480V, and features back wire connection. Constructed with nickel-plated brass and nylon, this 3-pole, 4-wire male plug is suitable for industrial, food and beverage, and wastewater treatment applications.

• IP69K and IP67 environmental resistance ratings
• Nickel plated brass contacts for corrosion resistance
• Nylon face and body material for durability

Product Highlights

This pin and sleeve plug offers reliable performance in demanding environments, with watertight sealing and corrosion-resistant components.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH460P7W

Technical Specifications

• Type: Plug
• Amperage Rating: 60A
• Voltage rating: 480 V
• Contact material: Nickel plated brass
• Application: Industrial, food and beverage, wastewater treatment
• Number of wires: 4
• Number of poles: 3
• Cord diameter: 0.66-1.5in (1.68-3.81cm)
• Phase: Three-phase
• Environmental resistance: IP69K IP67
• Gender: Male
• Horsepower: 15 hp
• Allowable wire size: #8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot)
• Torque rating: 28 lbf-inch
• Design type: Pin and sleeve plug
• Face/body material: Nylon
• Material: Nylon
• Brand: Eaton Cooper Wiring Devices
• Manufacturer: Eaton Cooper Wiring Devices
• Part No: AH460P7W
• Product Series: IEC 309 Watertight
• Family Series: Eaton Plugs & Receptacles, IEC 309 Watertight Series
• Description: Plug, 3P-4W, 60A, 480V, Red, Watertight
• Connection Type: Plug
• Connection Description: Water Resistant
• Current Rating: 60 A
• Voltage: 480 V
• Number of Poles: 3
• Number of Wires: 4
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Protection Rating: IP67, IP69K
• Color Code: Red
• Approvals: cULus
• MODEL: AH460P7W
