Cooper Wiring AH430R7W Receptacle 30A 480V

Product Description

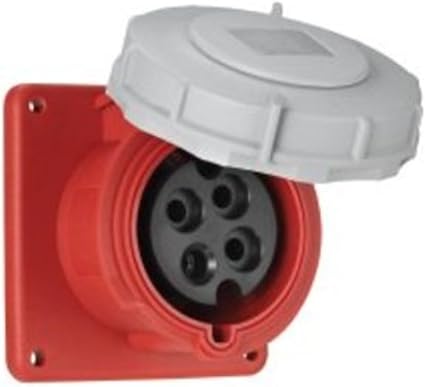

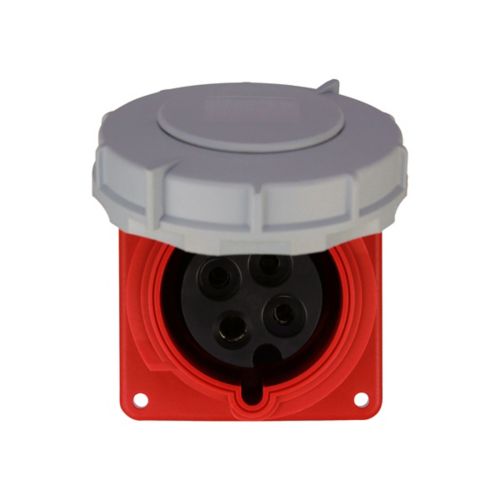

The COOPER WIRING AH430R7W is an Eaton Arrow Hart pin and sleeve receptacle. Rated IP69K and constructed from sturdy nylon, this receptacle offers reliable connectivity and durability. Ideal for industrial, food and beverage, and wastewater treatment applications. It features nickel-plated brass contacts and is designed for grounding with a three-pole, four-wire configuration.

• Designed to address high pressure, high temperature wash-down applications
• Spring-loaded self-closing cap with silicone gasket protects contacts when not in use
• Rugged materials selected for use in wet locations; provides corrosion resistant

Product Highlights

This receptacle features watertight sealing that provides IP69K protection for use in severe washdown environments.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH430R7W

Technical Specifications

• Type: Receptacle
• Amperage Rating: 30A
• Voltage rating: 480 V
• Contact material: Nickel plated brass
• Application: Industrial, food and beverage, wastewater treatment
• Number of wires: 4
• Number of poles: Three-pole
• Phase: Three-phase
• Environmental resistance: IP67
• IP69K: None
• Gender: Female
• Horsepower: 10 hp
• Allowable wire size: #10-2 AWG
• Torque rating: 10 lbf-inch
• Design type: Pin and sleeve receptacle
• Face/body material: Nylon
• Material: Nylon
• Brand Name: Eaton
• Model: AH430R7W
• Global Trade Identification Number: 00032664731976
• Manufacturer: Eaton
• Part Number: AH430R7W
• Included Components: Mounting screws
• Unit Count: 1.0 Count
• Item Type Name: Pin & Sleeve Devices
• Product Series: IEC 309 Watertight
• Family Series: Eaton Plugs & Receptacles, IEC 309 Watertight Series
• Description: Receptacle Pin&Sleeve 30A 480V 3PH 3P4W WT RD
• Connection Type: Receptacle
• Connection Description: Water Resistant
• Current Rating: 30 A
• Voltage: 480 V
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Protection Rating: IP67, IP69K
• Color Code: Red
• Approvals: cULus
