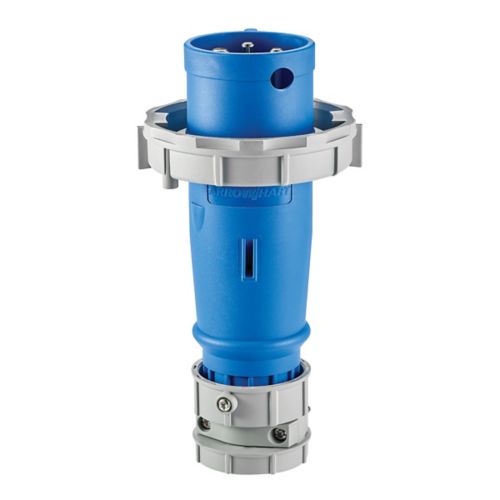

Cooper Wiring AH430P9WDR Eaton Arrow Hart pin and sleeve plug 30/32A

Product Description

The COOPER WIRING AH430P9WDR Eaton Arrow Hart pin and sleeve plug is IP69K Rated and designed for 30A 250V/32A 200-250V applications. This three-pole, 4-wire grounding plug accommodates #10 -#2 AWG wire and cable diameters of 0.433-0.985in (1.10-2.5cm). It is constructed with nickel-plated brass contacts and a durable nylon face/body material.

• IP69K Rated for harsh washdown environments
• Nickel plated brass contacts for corrosion resistance
• Accommodates #10 -#2 AWG wire

Product Highlights

The AH430P9WDR pin and sleeve plug is ideal for industrial applications requiring a robust and watertight connection.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH430P9WDR

Technical Specifications

• Product Name: Eaton Arrow Hart pin and sleeve plug
• Catalog Number: AH430P9WDR
• UPC: 032664006944
• Product Length/Depth: 7.32 in
• Product Height: 3.87 in
• Product Width: 3.87 in
• Product Type: Pin and Sleeve plug
• Special features: IP69K Rated
• Type: Plug
• Amperage Rating: 30/32A
• Voltage rating: 30A 250V/32A 200-250V
• Contact material: Nickel plated brass
• Number of wires: 4
• Number of poles: Three-pole
• Cable diameter: 0.433-0.985in
• Environmental resistance: IP69K IP67
• Allowable wire size: #10 -#2 AWG
• Design type: Pin and sleeve plug
• Face/body material: Nylon
• Grounding: Grounding
• Material: Nylon
• Maximum Amperage: 30 Amp, 32 Amp
• Maximum Voltage: 200V-250V
• Control Style: 3-Pole
