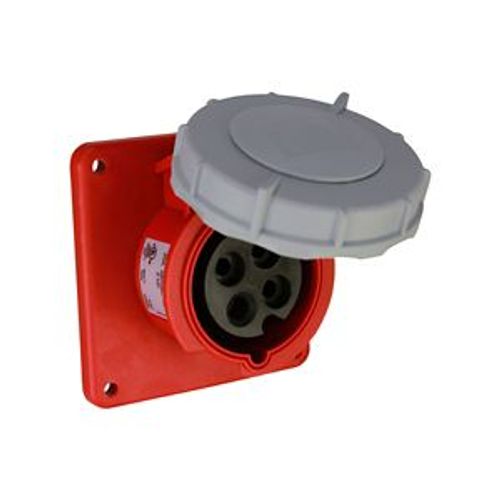

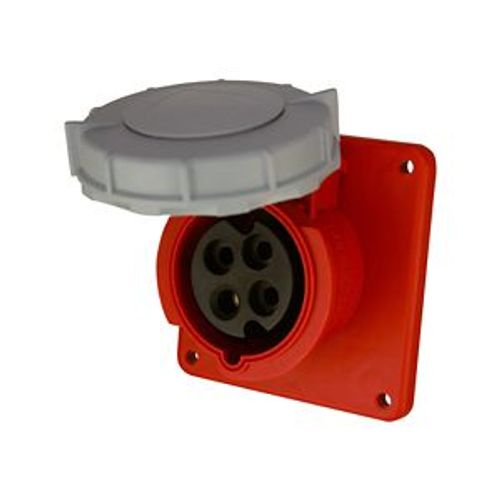

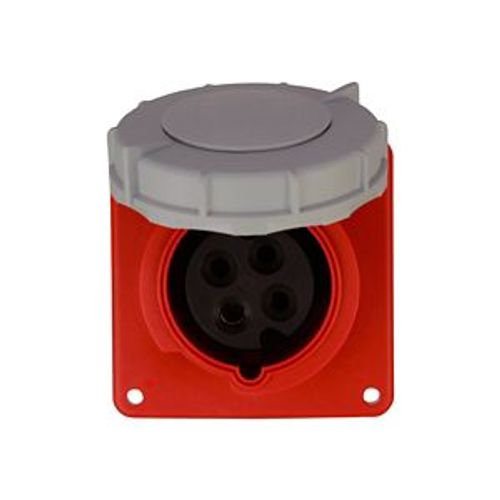

Cooper Wiring Ah420r7w Arrow Hart pin & sleeve receptacle 480V

Product Description

The COOPER WIRING AH420R7W Arrow Hart pin and sleeve receptacle features sturdy nylon construction and a rugged design with corrosion-resistant components for lasting electrical performance. Watertight sealing provides IP69K protection for severe washdown environments. It is ideal for industrial, food and beverage, and wastewater treatment applications.

• Watertight sealing provides IP69K protection
• Nickel plated pins offer long life corrosion protection
• Threaded NPT cable entry provides efficient means of attaching flexible conduit or wire mesh grips

Product Highlights

The receptacle offers reliable connectivity and durability for industrial, food and beverage, and wastewater treatment applications.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH420R7W

Technical Specifications

• Product Type: Pin and Sleeve Receptacle
• Amperage: 20A
• Application: Industrial, Food and Beverage, Wastewater Treatment
• AWG: 12-10
• Horse Power: 5 hp
• Voltage: 480V
• Connection Type: Female
• Poles: 3
• Phase: Three-phase
• Material: Nylon
• Catalog Number: AH420R7W
• UPC: 032664733505
• Product Length/Depth: 3.75 in
• Product Height: 3.125 in
• Product Width: 3.43 in
• Certifications: cRUus, UL Listed
• Type: Receptacle
• Number of wires: 4 Grounding
• Environmental resistance: IP69K IP67
• Gender: Female
• Allowable wire size: #12-10 AWG
• Torque rating: 10 lbf-inch
• Design type: Pin and sleeve receptacle
• Face/body material: Nylon
• Maximum Amperage: 20 Amp
• Maximum Voltage: 480V
• Outlet Type: 420R7W (IEC 60309)
• Wire AWG Compatibility: 10 AWG to 14 AWG
• IP Rating: IP67
• Control Style: 3-Pole
• Applications: Mounts into a wall and is compatible with 420P7W plug
