Cooper Wiring AH420P7W Arrow Hart Pin & Sleeve Plug 480V 5 HP

Product Description

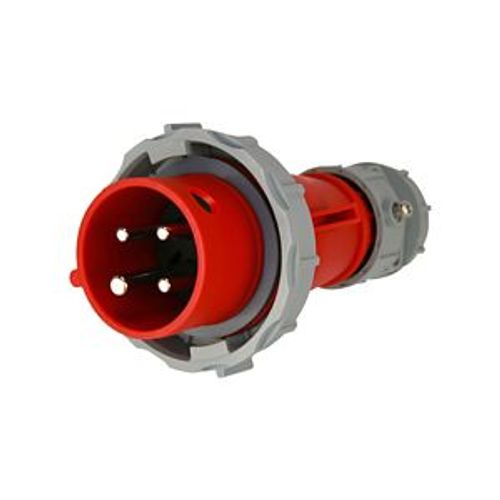

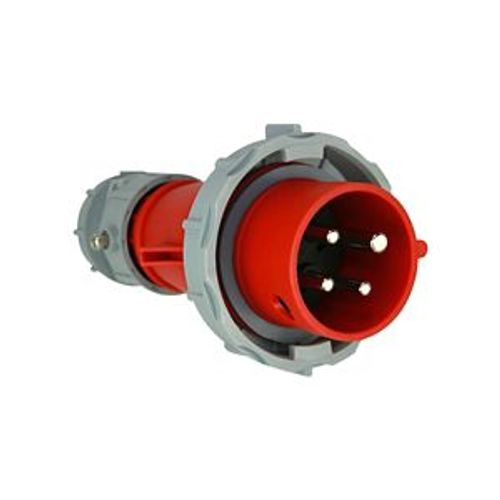

The COOPER WIRING AH420P7W Arrow Hart pin and sleeve plug is IP69K rated and designed for industrial, food and beverage, and wastewater treatment applications. It supports #12 - #10 AWG, 20A, 3 480V, and three-phase power. The plug features sturdy nylon construction and corrosion-resistant components for lasting electrical performance.

• Male Connection
• Nylon construction
• Rated for 480V and 5 HP

Product Highlights

This pin and sleeve plug offers reliable performance in demanding environments, with watertight sealing and corrosion protection.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH420P7W

Technical Specifications

• Connection Type: Male
• Material: Nylon
• Application: Food and Beverage, Industrial, Wastewater Treatment
• Poles: 3
• Voltage: 480V
• Horse Power: 5
• AWG: 12-10
• Amperage: 20
• Product Type: Pin and Sleeve plug
• Phase: 3
• Type: Plug
• Amperage Rating: 20A
• Contact material: Nickel plated brass
• Number of wires: 4
• Cord diameter: 0.333-0.775in (0.85-1.97cm)
• Environmental resistance: IP69K IP67
• Gender: Male
• Allowable wire size: #12-10 AWG
• Torque rating: 10 lbf-inch
• Design type: Pin and sleeve plug
• Face/body material: Nylon
• Product Length/Depth: 8.5 in
• Product Height: 4.375 in
• Product Width: 4.375 in
• Certifications: cRUus
• MODEL: AH420P7W
• BRAND: Cooper Wiring
• Manufacturer Part Number: AH420P7W
• Manufacturer: Eaton
• Product Series: IEC 309 Watertight
• Description: Plug Pin&Sleeve 20A 480V 3PH 3P4W WT RD
• Connection Description: Water Resistant
• Current Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Protection Rating: IP67, IP69K
• Color Code: Red
• Approvals: cULus
