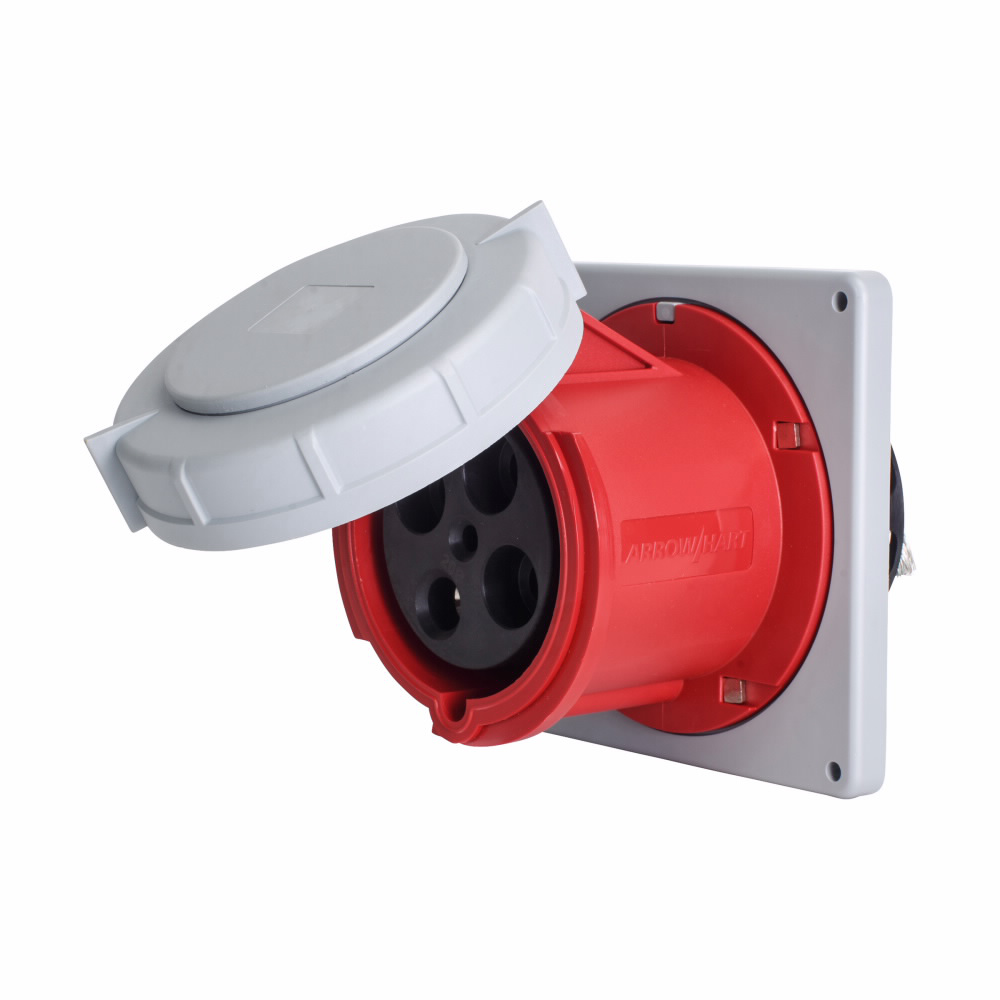

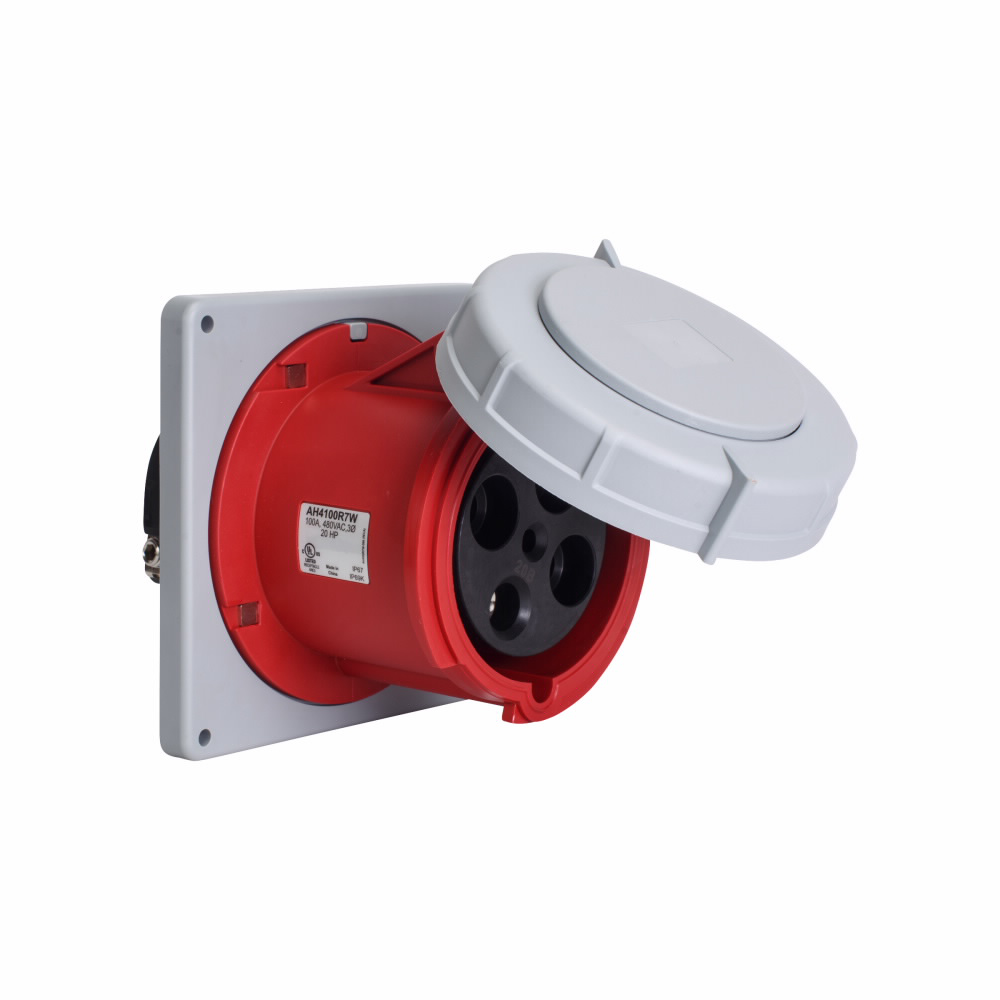

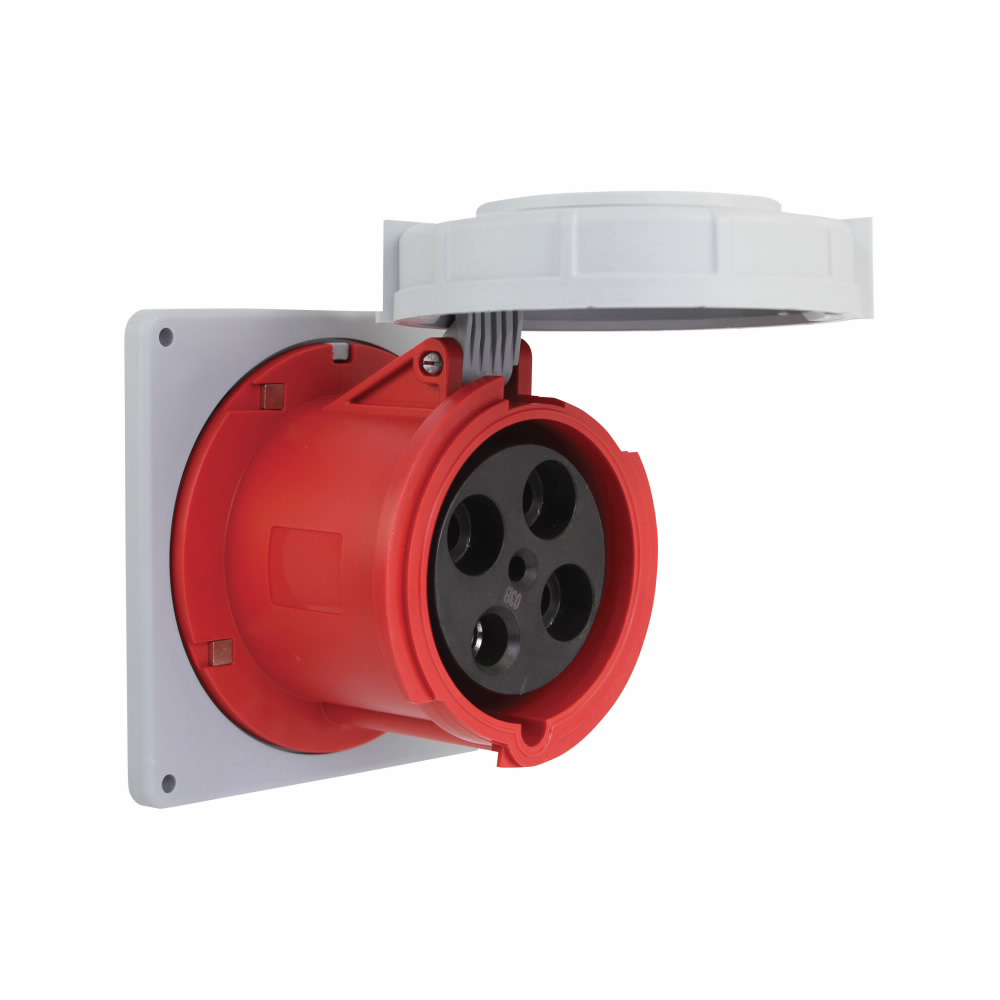

Cooper Wiring AH4100R7W Arrow Hart Pin and Sleeve Receptacle 100A 480V

Product Description

The COOPER WIRING AH4100R7W is an Eaton Arrow Hart pin and sleeve receptacle. It is IP69K rated and designed for extra heavy-duty applications. Suitable for industrial, food and beverage, and wastewater treatment environments. The receptacle features a back wire connection and is constructed from sturdy nylon for lasting electrical performance.

• IP69K Rated
• Extra Heavy-Duty
• Nickel Plated Contacts with Self-Cleaning Field-Proven Pressure Bands for Smooth Pin Insertion, Low Heat Rise, Corrosion Resistance, and Quality Electrical Performance

Product Highlights

This pin and sleeve receptacle offers reliable performance in demanding industrial settings, with watertight sealing and corrosion-resistant components.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH4100R7W

Technical Specifications

• Product Name: Eaton Arrow Hart pin and sleeve receptacle
• Catalog Number: AH4100R7W
• UPC: 032664732140
• Product Length/Depth: 7.375 in
• Product Height: 6.25 in
• Product Width: 7.375 in
• Certifications: cRUus
• Product Type: Pin and Sleeve receptacle
• Special features: IP69K Rated
• Type: Receptacle
• Amperage Rating: 100A
• Voltage rating: 480 V
• Contact material: Nickel plated brass
• Application: Industrial, food and beverage, wastewater treatment
• Device grade: Extra Heavy-Duty
• Wiring method: Back wire
• Number of wires: 4
• Number of poles: 3
• Back box style: AHBB100
• Phase: Three-phase
• Environmental resistance: IP67 IP69K
• Gender: Female
• Horsepower: 20 hp
• Allowable wire size: #4 -1/0 AWG, #12 - #16 AWG (pilot)
• Torque rating: 70 lbf-inch
• Design type: Pin and sleeve receptacle
• Face/body material: Nylon
• Material: Nylon
• Manufacturer: Eaton
• Product Series: IEC 309 Watertight
• Family Series: Eaton Plugs & Receptacles, IEC 309 Watertight Series
• Description: Receptacle Pin&Sleeve 100A 480V 3PH 3P4W WT RD
• Connection Type: Receptacle
• Connection Description: Water Resistant
• Current Rating: 100 A
• Voltage: 480 V
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Protection Rating: IP67, IP69K
• Color Code: Red
• Approvals: cULus
• Actuator: Lever
• Applications: IEC 309 Products
• Number of Phases: 3 Phase
• Standard: UL
• TC Connection: Pin & Sleeve
• Temperature Rating: -30 degrees C
• Brand: Crouse-Hinds
• Sub Brand: ArrowHart Series
• 12-Digit UPC: 032664732140
