Cooper Wiring AH4100P7W pin and sleeve plug 100A 480V

Product Description

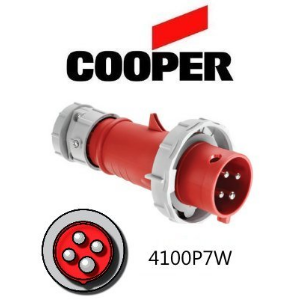

The COOPER WIRING AH4100P7W is an Eaton Arrow Hart pin and sleeve plug. Rated IP69K, it supports #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 3 480V, and back wire. Constructed with nickel-plated brass and nylon, this 3-pole, 4-wire male plug is designed for industrial, food and beverage, and wastewater treatment applications.

• IP69K Rated
• Nickel Plated Contacts with Self Cleaning Field Proven Pressure Bands for Smooth Pin Insertion, Low Heat Rise, Corrosion Resistance, and Quality Electrical Performance
• Individual Silicone Sealing Grommets with Cord Diameter Range Makes for Faster, Easier Assembly

Product Highlights

The AH4100P7W pin and sleeve plug offers reliable performance in demanding environments with its watertight sealing and corrosion-resistant components.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH4100P7W

Technical Specifications

• Product Name: Eaton Arrow Hart pin and sleeve plug
• Catalog Number: AH4100P7W
• UPC: 040893620848
• Product Length/Depth: 13.375 in
• Product Height: 5.625 in
• Product Width: 5.5 in
• Certifications: cRUus, cULus, UL Listed
• Product Type: Pin and Sleeve plug
• Special features: IP69K Rated
• Type: Plug
• Amperage Rating: 100A
• Voltage rating: 480 V
• Contact material: Nickel plated brass
• Application: Industrial, food and beverage, wastewater treatment
• Device grade: Extra Heavy-Duty
• Wiring method: Back wire
• Number of wires: 4
• Grounding: Four-wire
• Number of poles: 3
• Phase: Three-phase
• Environmental resistance: IP67
• IP69K: IP69K
• Gender: Male
• Horsepower: 20 hp
• Allowable wire size: #4 -1/0 AWG, #12 - #16 AWG (pilot)
• Torque rating: 70 lbf-inch
• Design type: Pin and sleeve plug
• Face/body material: Nylon
• Material: Nylon
• Manufacturer: Eaton
• Product Series: IEC 309 Watertight
• Family Series: Eaton Plugs & Receptacles, IEC 309 Watertight Series
• Description: Plug Pin&Sleeve 100A 480V 3PH 3P4W WT RD
• Connection Type: Plug
• Connection Description: Water Resistant
• Current Rating: 100 A
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Protection Rating: IP67, IP69K
• Wire: 3-Pole, 4 Wire
• Wire AWG Compatibility: 2 AWG to 4 AWG
• Plug Type: 4100P7W (IEC 60309)
• Amperage: 100 Amp
• Voltage: 480 Volt
• Number of Phases: 3 Phase
• Actuator: Lever
• Applications: For IEC 309 Products
• Conductor Size: 4-1/0 AWG
• Mounting Type: Cable
• Standard: ANSI/IEEE,CUL,IEC,UL
• TC Connection: Pin & Sleeve
• Brand: Crouse-Hinds
• Sub Brand: Arrow Hart
• 12-Digit UPC: 040893620848
