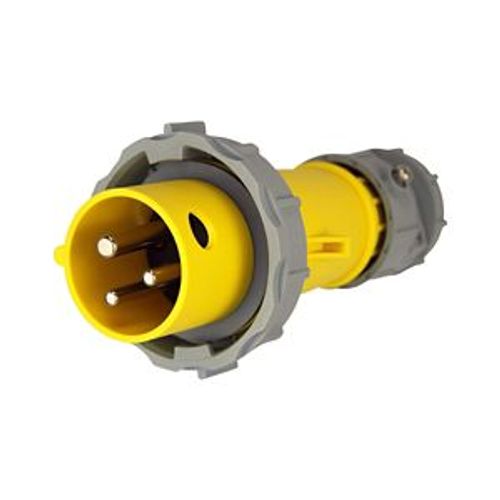

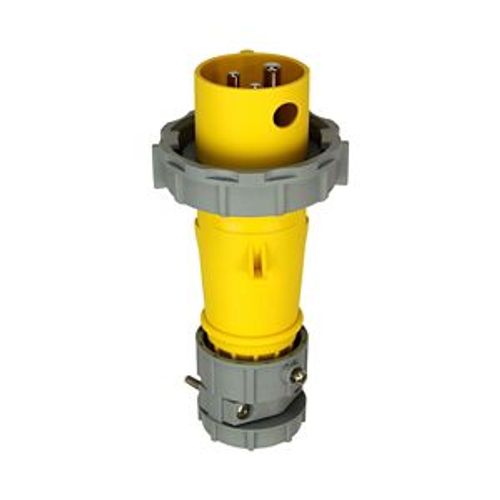

Cooper Wiring AH320P4W Arrow Hart Pin & Sleeve Plug 20A 125V

Product Description

The COOPER WIRING AH320P4W is an Eaton Arrow Hart pin and sleeve plug. It features sturdy nylon construction and a rugged design with corrosion-resistant components for lasting electrical performance. Watertight sealing provides IP69K protection for severe washdown environments. The threaded NPT cable entry efficiently attaches flexible conduit or wire mesh grips.

• Watertight sealing provides IP69K protection
• Threaded NPT cable entry for attaching flexible conduit or wire mesh grips
• Nickel-plated pins offer long life corrosion protection

Product Highlights

This pin and sleeve plug offers reliable connectivity and durability for industrial, food and beverage, and wastewater treatment applications.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: AH320P4W

Technical Specifications

• Material: Nylon
• Poles: 2
• Application: Wastewater Treatment, Industrial, Food and Beverage
• Connection Type: Male
• Amperage: 20A
• Voltage: 125V
• Color: Yellow
• Product Type: Pin and Sleeve plug
• AWG: #12 - #10 AWG
• Grade: Extra Heavy-Duty
• Wiring: Back wire
• Catalog Number: AH320P4W
• UPC: 032664732225
• Product Length/Depth: 8.5 in
• Product Height: 4.375 in
• Product Width: 4.375 in
• Certifications: cRUus, UL Listed
• Special features: IP69K Rated
• Type: Plug
• Contact material: Nickel plated brass
• Device grade: Extra Heavy-Duty
• Number of wires: Grounding 3 Three-wire
• Cord diameter: 0.333-0.775in (0.85-1.97cm)
• Environmental resistance: IP69K IP67
• Gender: Male
• Torque rating: 10 lbf-inch
• Design type: Pin and sleeve plug
• Face/body material: Nylon
• Maximum Amperage: 20 Amp
• Maximum Voltage: 125V
• Plug Type: 320P4W (IEC 60309)
• Wire: 2-Pole, 3 Wire
• Wire AWG Compatibility: 10 AWG to 14 AWG
• IP Rating: IP67
• Phase: Single Phase
