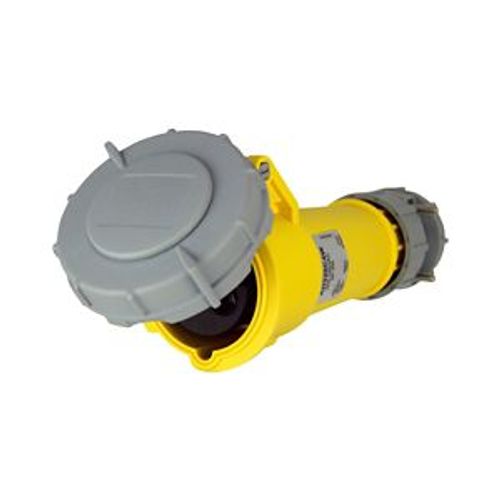

Cooper Wiring AH320C4W Arrow Hart Pin & Sleeve Connector 20A 125V

EATON
Brand: EATON
SKU: AH320C4W
Availability: Out Of Stock
$115.57
$115.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The COOPER WIRING AH320C4W is an Eaton Arrow Hart pin and sleeve connector, IP69K Rated, designed for industrial, food and beverage, and wastewater treatment applications. It features sturdy nylon construction and corrosion resistant components for lasting electrical performance. Watertight sealing provides IP69K protection for severe washdown environments.

  • IP69K Rated
  • Extra Heavy-Duty
  • Nickel plated pins offer long life corrosion protection

Product Highlights

This pin and sleeve connector offers reliable connectivity and durability, ideal for industrial, food and beverage, and wastewater treatment applications.

Product Information

Standard Information

  • Brand: COOPER WIRING
  • Manufacturer Part Number: AH320C4W
Technical Specifications
Amperage
20
Grade
Extra Heavy-Duty
Wiring
Back Wire
Material
Nylon
Application
Wastewater Treatment, Industrial, Food and Beverage
Product Type
Pin And Sleeve Connector
Connection Type
Female
Poles
2
Voltage
125 V
AWG
12-10
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH320C4W
UPC
032664732607
Product Length/Depth
8.5 in
Product Height
4.375 in
Product Width
4.375 in
Certifications
cRUus
Special features
IP69K Rated
Type
Connector
Amperage Rating
20A
Contact material
Nickel plated brass
Device grade
Extra Heavy-Duty
Wiring method
Back wire
Number of wires
3
Grounding
Three-wire
Number of poles
Two-pole
Cord diameter
0.333-0.775in (0.85-1.97cm)
Environmental resistance
IP69K
IP67
IP67
Allowable wire size
#12 - #10 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Maximum Amperage
20 Amp
Maximum Voltage
125V
Product Dimensions
8.50-in X 4.40-in X 4.40-in
Part Number
AH320C4W
Manufacturer
Eaton
Product Series
IEC 309 Watertight
Family Series
Eaton Plugs & Receptacles, IEC 309 Watertight Series
Description
Connector, 20A, 125V, 2P-3W, Wt/Yl
Connection Description
Water Resistant
Current Rating
20 A
Number of Wires
3
Lockout-Tagout
No
Auxiliary Contact
None
Built-In Strain Relief
No
Protection Rating
IP67, IP69K
Color Code
Yellow
Approvals
cULus
