Cooper Wiring 84-6BK-BOX Straight Blade Angled Plug 15A 125V

Product Description

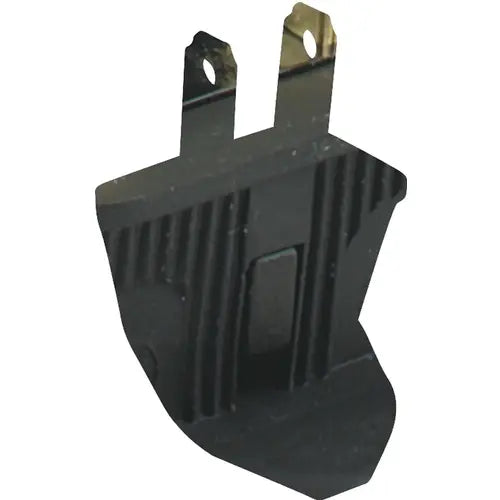

The COOPER WIRING 84-6BK-BOX is an Eaton straight blade angled plug designed for commercial and residential applications. It supports #18-16 AWG wiring and operates at 125V with a 15A amperage rating. The plug features back wire connection and is constructed from thermoplastic rubber with brass contacts.

• Polarized
• Non-grounding
• Commercial/residential

Product Highlights

This straight blade angled plug is ideal for commercial and residential use.

Product Information

Standard Information

• Brand: COOPER WIRING
• Manufacturer Part Number: 84-6BK-BOX

Technical Specifications

• SKU: 84-6BK-BOX
• Product Name: Eaton straight blade angled plug
• Catalog Number: 84-6BK-BOX
• UPC: 032664206504
• Product Length/Depth: 6.5 in
• Product Height: 1.5 in
• Product Width: 3.5 in
• Certifications: UL NOM Federal Specification Classification 6221 02
• Product Type: Straight blade angled plug
• Device type: Plug
• Special features: PolarizedNon-grounding
• Type: Rubber plug
• Amperage Rating: 15A
• Voltage rating: 125V
• Contact material: Brass
• Features: Polarized Non-grounding
• Application: Commercial/residential
• Device grade: Standard grade
• Wiring method: Back wire
• Number of wires: 2
• Number of poles: Two-pole
• Style type: Angled body
• Cord range: 0.33" in diameter
• Material: Thermoplastic rubber
• Connection type: Screw
• Allowable wire size: #18-16 AWG
• NEMA configuration: 1-15P
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Thermoplastic rubber
• Receptacle type: Two-pole, two-wire, non grounding
• Manufacturer Part Number: 84-6BK-BOX
• Manufacturer: Eaton
• Product Series: Rubber Plugs
• Family Series: Eaton Plugs & Receptacles, Rubber Plugs Series
• Current Rating: 15 A
• Number of Poles: 2
• Number of Wires: 2
• Voltage: 125 VAC
• Body Type: Angled
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Polarized
• MODEL: 84-6BK-BOX
• BRAND: Cooper Wiring
• UOM: each
• NEMA Configuration: NEMA 5-15
• Mounting Type: Screw
• Cable/Wire Size: 21/64"
• Grounding Type: Non-Grounded
