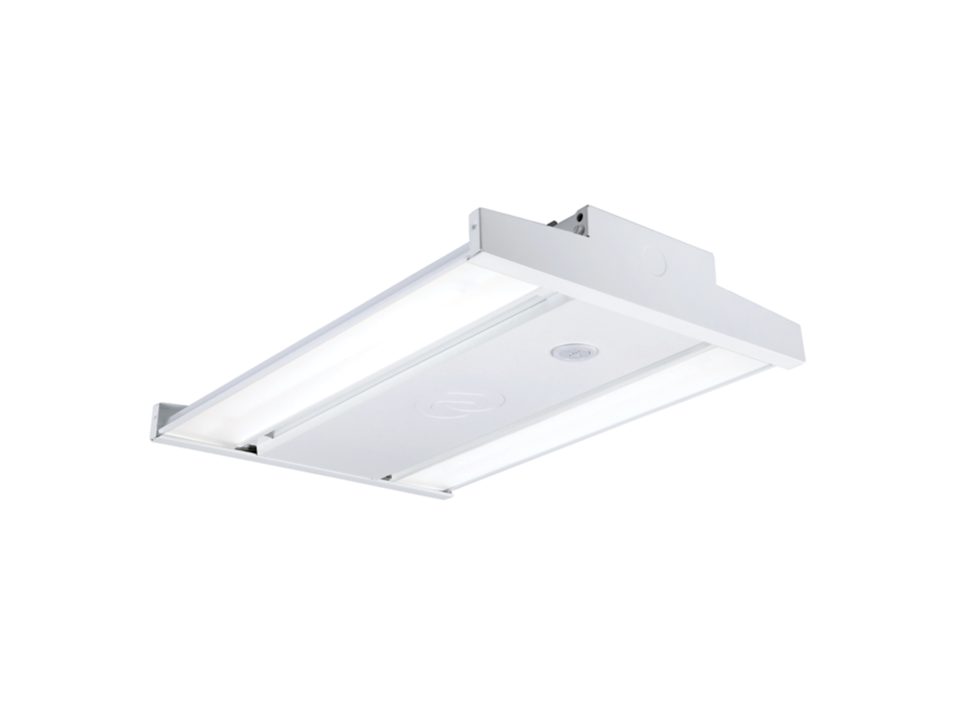

Cooper SPHB-1224SE-M-UNV-L84050-CD-SP1-U SPHB LED Selectable Linear High Bay 164 W

Product Description

The COOPER SPHB-1224SE-M-UNV-L84050-CD-SP1-U SPHB LED Selectable Linear High Bay is a compact linear high bay designed for easy installation. This Metalux high bay features selectable CCT and delivers high-performance efficacy up to 157 lm/W. It operates on 120-277V and consumes 164W. The optimized medium distribution and sensor-ready port enhance its functionality.

• Compact linear design for easy install
• High Performance efficacy up to 157 lm/W
• Optimized medium distribution

Product Highlights

This high bay is ideal for industrial settings, offering efficient and customizable lighting solutions with its selectable CCT and lumen options.

Product Information

Standard Information

• Brand: COOPER
• Manufacturer Part Number: SPHB-1224SE-M-UNV-L84050-CD-SP1-U
• Country of Origin: China

Technical Specifications

• Brand Name: Metalux
• Family: SPHB LED Selectable Linear High Bay
• Lamp Type: LED
• UPC: 080083289264
• Amperage Rating: 0.59A at 277V
• Color Temperature Max: 5000K
• Mounting: Surface/Pendant
• Voltage Rating: 120-277V
• Wattage: 164 W
• Lumens: Selectable Lumens, 12000 Lumen, 18000 Lumen, 24000 Lumen
• CRI: 80+
• Dimming: 0-10V dimming, 10% with dim-to-off standard
• Distribution: Medium
• Length: 17.81"
• Width: 12.25"
• Height (no Sensor): 2.5"
• Estimated Life: L70 at 173,000 Hours
• Labels and Listings: cULus listed for damp locations, Qualifies as State of California Title 24 nonresidential high efficiency luminaire, FCC part 15 class A compliant, DesignLights Consortium Qualified and classified for both DLC Standard and DLC Premium
• Manufacturer: Cooper Lighting Solutions
• Type: Compact Linear High Bay
• Series: SPHB, Metalux
• Color Temperature: Selectable CCT, 4000K, 5000K
• Color Rendering Index (CRI): 80 CRI
• Enclosure Type: Damp Location
• Mounting Type: Surface Mount, Pendant Mount
• Special Features: Now offering fully configurable
• Standard: RoHS Compliant;UL Listed
• GTIN: 00080083289264
• Item Type: Industrial
• Lighting Technology: LED
• Fixture Wattage: 164 W
• Ballast Type: Dims to 10% (0 to 10 V Dimming)
• Housing Finish: White
• Lens Type: Polycarbonate
• Light Output: Up to 157 Lumens/W
