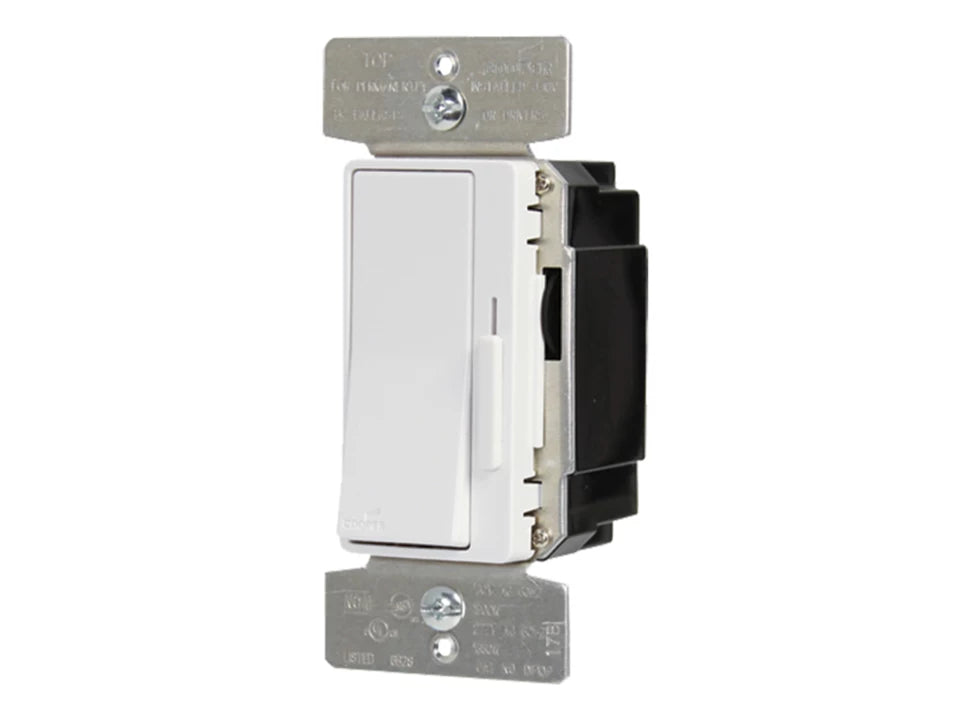

Cooper Lighting Solutions WBSD-010DEC-C2 Controls 3-Way All Load Decorator Greengate Dimmer Wallstation 120/277 VAC, 6/10 A, 1 Poles

Product Description

The COOPER LIGHTING SOLUTIONS WBSD-010DEC-C2 is a Greengate dimmer wallstation. This 3-way all load decorator operates at 120/277 VAC with 6/10 A and 1200/1660 W power at 60 Hz. Designed for both 1-pole and 3-way applications, it features a preset ON/OFF switch. Ideal for light commercial applications.

• Full range classic linear slide dimming for 0 to 10 VDC compatible dimmable light sources
• Preset ON/OFF switch returns controlled lights to a preset level
• Includes 3-color faceplate kit

Product Highlights

The WBSD-010DEC-C2 dimmer wallstation is suitable for 1-pole and 3-way applications. It provides full-range dimming and includes a 3-color faceplate kit.

Product Information

Standard Information

• Brand: COOPER LIGHTING SOLUTIONS
• Manufacturer Part Number: WBSD-010DEC-C2
• Country of Origin: CN

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 6/10 A
• Number of Poles: 1
• Type: Wall Switch No Sensor - 120/277V
• Power Rating: 1200/1660 W
• Frequency Rating: 60 Hz
• Mounting Type: Surface
• Temperature Rating: -4 to 158 deg F
• Manufacturer: Cooper Lighting Solutions
• Mounting: Surface Mount
• Standards: California Title 20
• Category: Lighting Controls
• Application: Lighting
• Brand Name: Controls
• Special Features: Allows user to return to previous light level when turning lights ON
• Standard: UL Listed
• Sub Brand: WBSD-010DEC - Decorator 0-10V Wallswitch Slide Dimmer
• UNSPSC: 39122206
• Color: Light Almond, Ivory, White
• 0-10V Dimming: 0-10V Dimming
