Cooper Lighting Solutions nffld-a40-s Led Floodlight 129W

Product Description

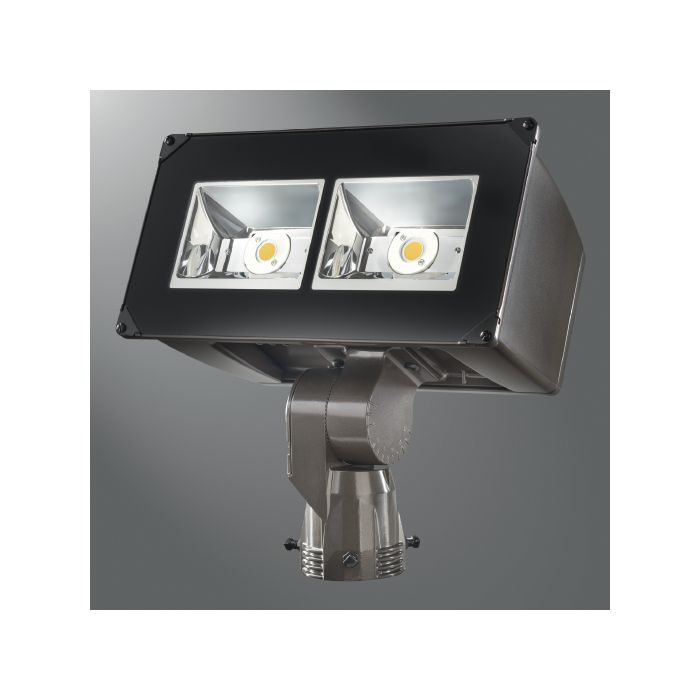

The COOPER LIGHTING SOLUTIONS nffld-a40-s is a high-output LED floodlight fixture designed for demanding outdoor environments. Rated at 129 watts and delivering 14683 lumens at 4000K color temperature, this fixture delivers efficient, high-quality illumination for commercial and industrial applications. The aluminum housing carries an IP66 enclosure rating, making it fully protected against dust ingress and powerful water jets. A separate driver compartment promotes heat dissipation, extending both LED and fixture service life to a rated average of 72000 hours. Licensed electricians and lighting contractors handle installation on new construction and retrofit projects alike.

This floodlight is suited for area lighting, building facade illumination, security lighting, accent lighting, and signage lighting in commercial and industrial settings. The slip fitter mounting system allows for straightforward pole or arm installation. The tempered glass lens and clear shade maintain optical output integrity in outdoor exposures. With a 120/277 VAC dual-voltage rating, the fixture is compatible with standard commercial distribution voltages, reducing the need for additional transformers in most installations.

Key Features

• 129-watt LED lamp with 14683-lumen output for high-intensity area coverage
• 4000K color temperature with 70 CRI for clear, neutral-white illumination
• IP66-rated aluminum housing for full dust and water ingress protection
• Separate driver compartment design supports thermal management and long fixture life
• 72000-hour average LED life reduces maintenance frequency
• Slip fitter mounting for compatible pole and arm installations
• Dual-voltage rated at 120/277 VAC for flexible commercial wiring configurations

Compatibility

Designed as an OEM-style outdoor LED floodlight for commercial and industrial area lighting applications requiring slip fitter pole or arm mounting.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Disconnect and lock out all power at the breaker before wiring or mounting the fixture. The slip fitter mount must be secured to a structurally rated pole or arm capable of supporting the fixture weight and wind load. The IP66 rating requires that all conduit entries and fittings be properly sealed to maintain enclosure integrity.

Technical Specifications

• Fixture Wattage: 129 watts
• Lumens: 14683 lumens
• Color Temperature: 4000K
• Color Rendering Index (CRI): 70
• Voltage Rating: 120/277 VAC
• Amperage Rating: 0.503 amps
• Lamp Type: LED
• Average Life: 72000 hours
• Enclosure Type: IP66
• Mounting Type: Slip Fitter
• Lens Type: Tempered Glass
• Shade Type: Clear
• Housing Material: Aluminum
• Housing Finish: Bronze
• Dimensions: 15-5/16 inches H x 15-5/16 inches W x 8-11/16 inches D
• Series: NFFLD

Standard Information

• Brand: COOPER LIGHTING SOLUTIONS
• Manufacturer Part Number: nffld-a40-s
