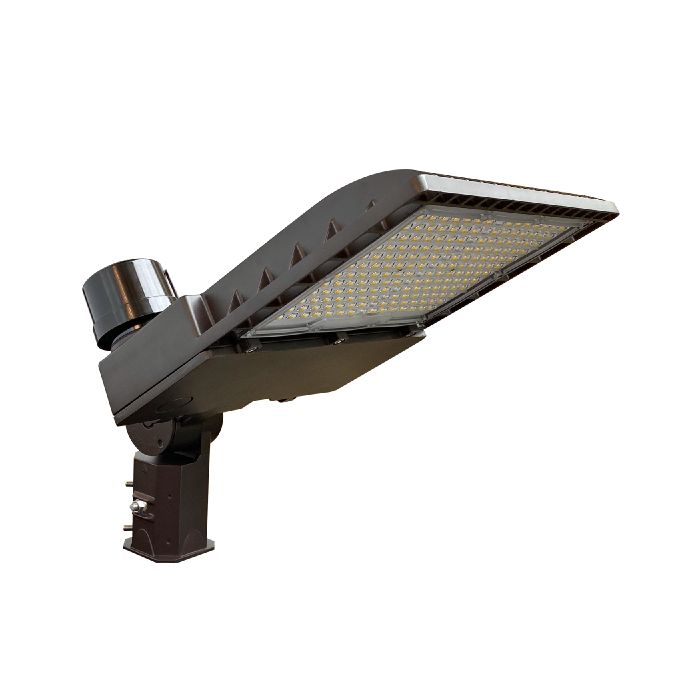

Cooper Lighting Solutions las45s-t3 Led Area Luminaire 150W

Product Description

The COOPER LIGHTING SOLUTIONS las45s-t3 is a 150-watt LED area and site luminaire designed for outdoor commercial and municipal lighting applications. Built around a die cast aluminum housing with a standard bronze finish, it delivers 4000 K correlated color temperature with a 70 CRI output through a UV-resistant polycarbonate lens. The fixture operates across a wide voltage range of 120 to 277 VAC and supports 0 to 10 V dimming for integrated controls. An IP65-rated enclosure protects internal components against dust and water ingress. Licensed electricians and lighting contractors install this luminaire as a primary source of area illumination where energy efficiency and reduced maintenance intervals are required.

The las45s-t3 is suited for parking lots, walkways, building perimeters, and other outdoor sites requiring reliable dusk-to-dawn coverage. The Type III optical distribution directs light laterally and forward, making it appropriate for roadway edges, lot boundaries, and similar asymmetric lighting zones. The adjustable slipfitter arm accommodates both horizontal and vertical pole mounting configurations, giving installers flexibility on standard round tenon poles. The fixture ships with an adjustable slipfitter mounting arm and a 3-PIN NEMA Twistlock photocontrol receptacle with photocontrol included.

Key Features

• 150W LED source with 4000 K color temperature and 70 CRI output
• Wide voltage input range: 120 to 277 VAC at 0.58 A
• 0 to 10 V dimmable ballast for compatibility with common lighting control systems
• IP65-rated enclosure with UV-resistant polycarbonate lens for outdoor durability
• Adjustable slipfitter mount supports horizontal or vertical pole installation
• Includes 3-PIN NEMA Twistlock photocontrol receptacle and photocontrol for automatic dusk-to-dawn operation

Compatibility

Designed for use with standard round tenon slipfitter pole mounts in commercial outdoor area and site lighting installations. Compatible with 0 to 10 V dimming control systems and 3-PIN NEMA Twistlock photocontrol accessories.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local ordinances. Disconnect and lock out all power at the panel before wiring or mounting the fixture. Verify pole tenon diameter is compatible with the slipfitter arm before final mounting. Do not exceed the fixture voltage rating or attempt to use incompatible photocontrol receptacle formats.

Technical Specifications

• Fixture Wattage: 150 W
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 0.58 A
• Lamp Type: LED
• Color Temperature: 4000 K
• Color Rendering Index (CRI): 70
• Ballast Type: 0 to 10 V Dimmable
• Optical Type: Type III
• Dimensions: 24.25 inches L x 15.188 inches W x 5.938 inches H
• Housing Material: Die Cast Aluminum
• Housing Finish: Standard Bronze
• Lens Type: UV-Resistant Polycarbonate
• Enclosure Rating: IP65
• Insulation Class: Class P
• Mounting Type: Slipfitter
• Series: LAS

Standard Information

• Brand: COOPER LIGHTING SOLUTIONS
• Manufacturer Part Number: las45s-t3
