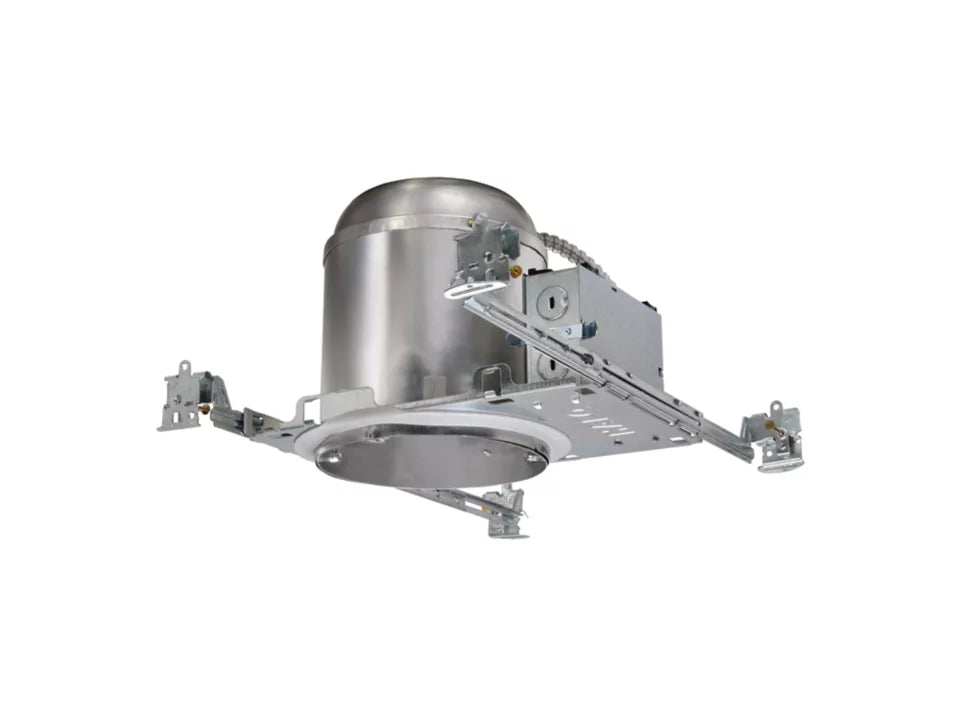

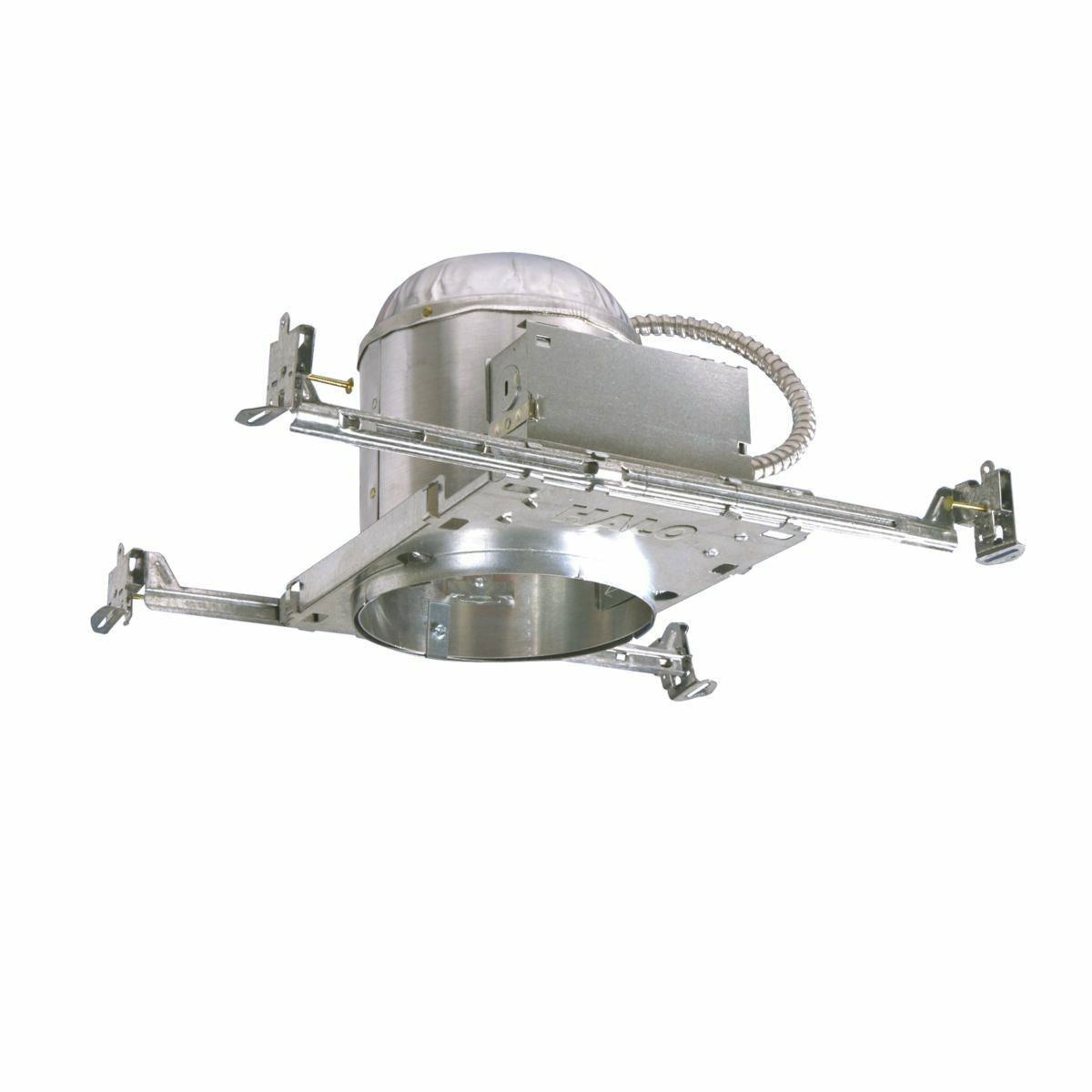

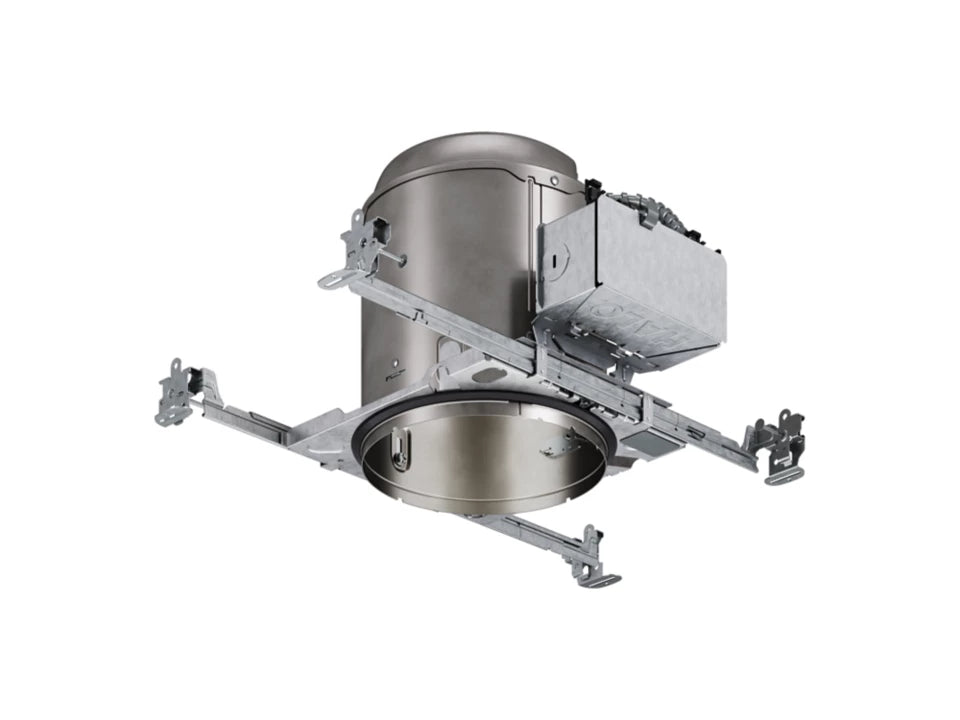

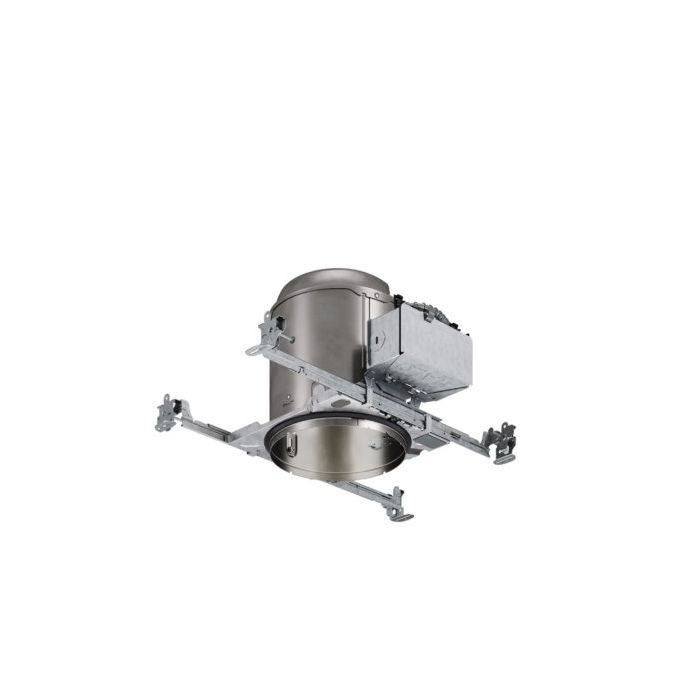

Cooper Lighting Solutions H7ICATNB 6 inches Housing IC Air-Tite No Socket Bracket 120V

Product Description

The COOPER LIGHTING SOLUTIONS H7ICATNB is a 6" Housing IC Air-Tite designed without a socket plate, saving installation time. The wide variety of trims allow for different lighting effects from one housing. It can be in direct contact with insulation and the AIR-TITE design meets restricted air flow requirements.

• Saves installation time due to no socket plate
• Wide variety of trims allow for different lighting effects
• Can be in direct contact with insulation

Product Highlights

This housing is IC rated for direct contact with insulation and AIR-TITE to reduce airflow. Ideal for residential, mixed-use, and commercial downlight applications.

Product Information

Standard Information

• Brand: COOPER LIGHTING SOLUTIONS
• Manufacturer Part Number: H7ICATNB
• Country of Origin: MX

Technical Specifications

• Housing: No socket bracket, 120V line voltage housing
• Insulation: Insulated Ceiling (IC) rated to be in direct contact with insulation
• Bar Hangers: Got Nail! bar hangers, Slide-N-Side wire traps
• Bar Hanger Adjustment: Pass-N-Thru tool-less shortening of bar hangers
• Trim Compatibility: For use with socket supporting trims
• Air Tightness: AIR-TITE reduces airflow between unconditioned and conditioned spaces
• Wiring: Quick Connect wiring connectors included in junction box
• Thermal Protection: Thermally protected protects against overheating from over-lamping
• Construction: Die-formed housing and plaster frame
• Junction Box Access: Housing may be removed from plaster frame for junction box access
• Lamp Type: E26 Socket
• Voltage Rating: 120 V
• Housing Material: Aluminum
• Insulation Type: IC Rated
• Type: New Construction, Air-Tite
• Series: Halo
• Mounting Type: Recessed
• Suitable For Use With: Supports multiple traditional trims for use with incandescent lamp types as well as HALO LED Trims
• Diameter: 6 Inch
• Height: 7.2 Inch
• Width: 7.3 Inch
• Depth: 11.5 Inch
• Manufacturer: Cooper Lighting Solutions
• Aperture: 6 Inch
