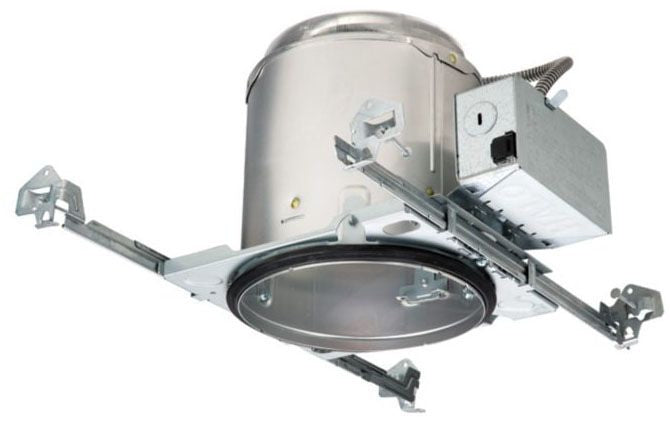

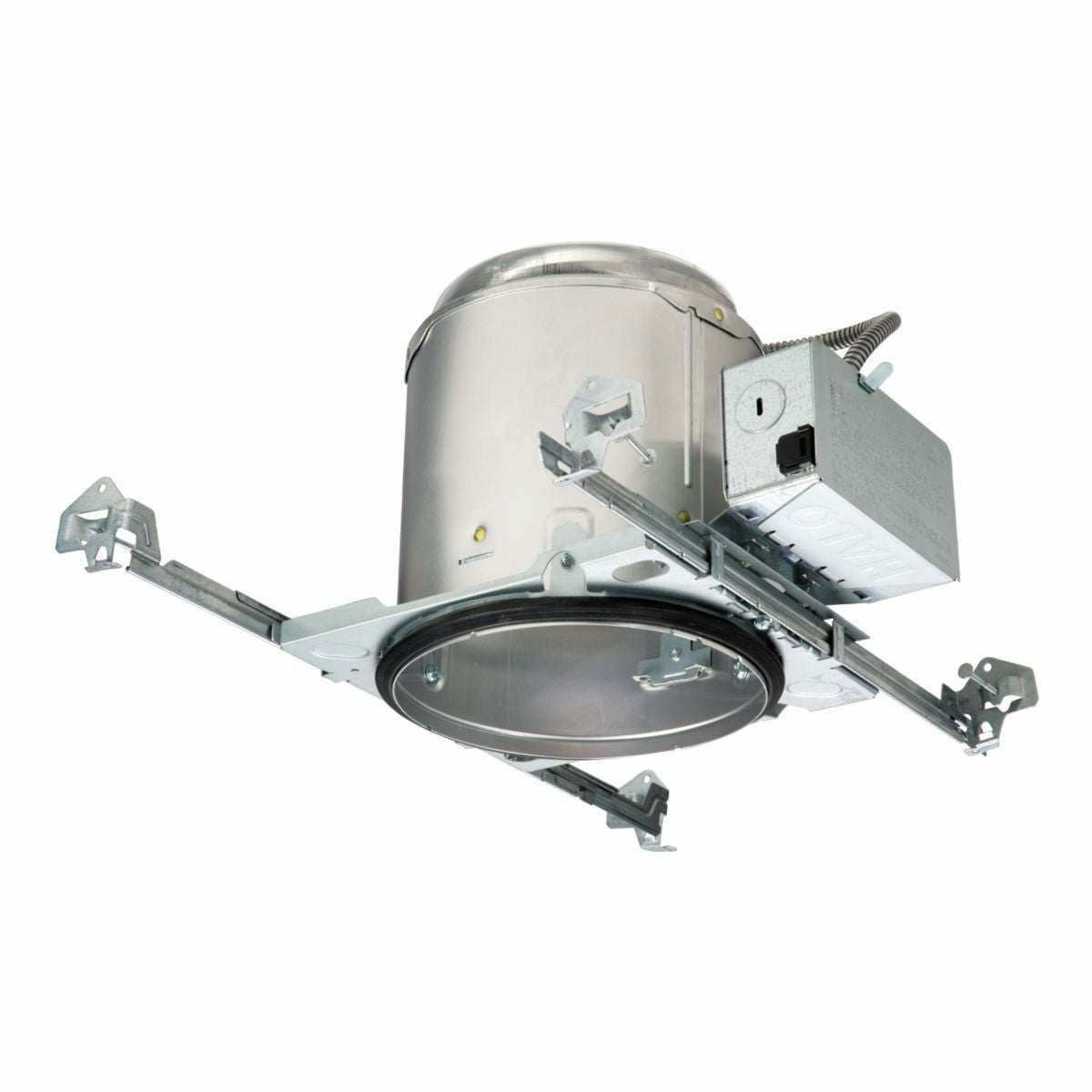

Cooper Lighting Solutions E7ICATNB 6-inch IC Airtite New Construction No Socket Bracket Housing 120V

Product Description

The COOPER LIGHTING SOLUTIONS E7ICATNB is a 6-inch IC-rated, airtight recessed housing designed for new construction, operating at 120V. This housing is suitable for residential or light commercial applications and is compatible with E26 screwbase incandescent lamps, as well as EISA compliant tungsten-halogen, CFL, and LED integrated lamps. It is engineered for installation in insulated and non-insulated ceilings with airtight code-compliant construction, featuring a design without a socket bracket for use with socket supporting trims.

• IC Rated and Airtight for energy efficiency and safety in ceiling installations.
• Designed for new construction with a 6-1/2 inch ceiling opening for easy integration.
• Features a no socket bracket design for use with socket supporting trims, simplifying installation.

Product Highlights

Versatile recessed housing for various lamp types in new construction applications.

Product Information

Standard Information

• Brand: COOPER LIGHTING SOLUTIONS
• Manufacturer Part Number: E7ICATNB
• Country of Origin: Mexico

Technical Specifications

• Size: 6 in
• Type: IC Rated
• Feature: Airtight
• Construction Type: New Construction
• Housing Type: No Socket Bracket
• Input Voltage: 120V
• Lamp Type: E26 Screwbase Incandescent Lamp
• Ceiling Opening: 6-1/2 in
• Housing Material: Aluminum
• Usage Application: Residential or light commercial
• Installation Environment: Insulated ceilings and non-insulated ceilings with airtight code compliant construction
• Depth: 10-3/8 in
• Height: 7-3/8 in
• Includes: Bar Hangers, q-Channel Bars, Hinged Junction Box, Push Wire Nuts and Clear Caps
• Lamp Wattage: 90 W
• Mounting Type: Ceiling
• Number of Lamps: 1
• Series: E7
• Standards/Approvals: RoHS Compliant, ASTM E283, cULus 1598, cULus Listed for Damp and Wet Listed, EISA Compliant, AIR-TITE Certified, UL/cUL Listed for Insulation Contact
• Suitable For Use With: Halo LED Lighting System, Insulated Ceiling and Trim
• Width: 12 in
• Country of Origin: Mexico
• Socket Type: E26
