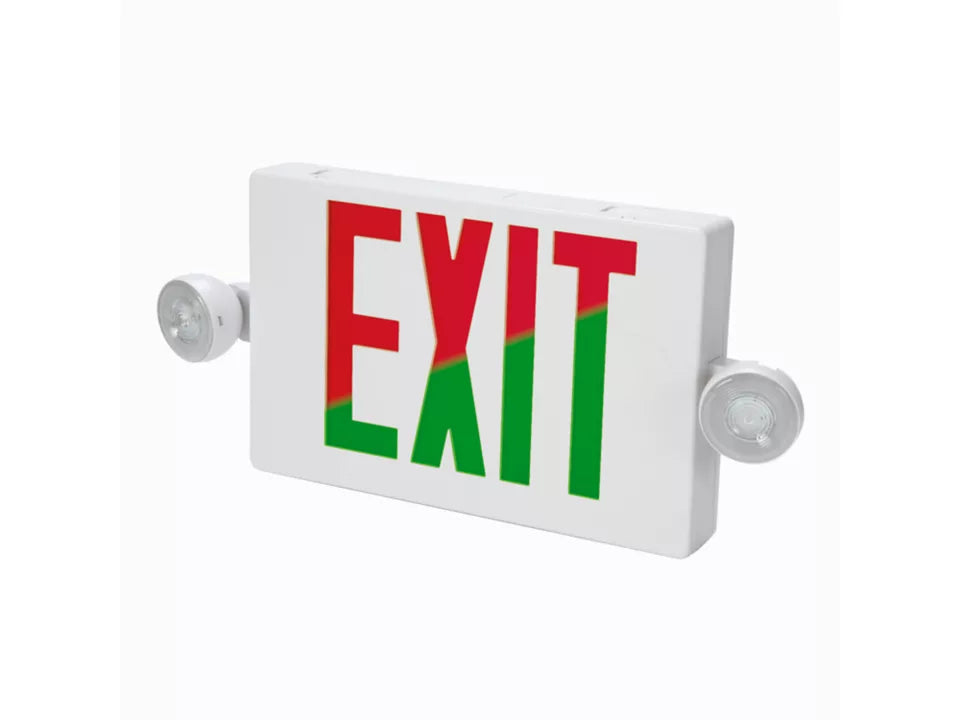

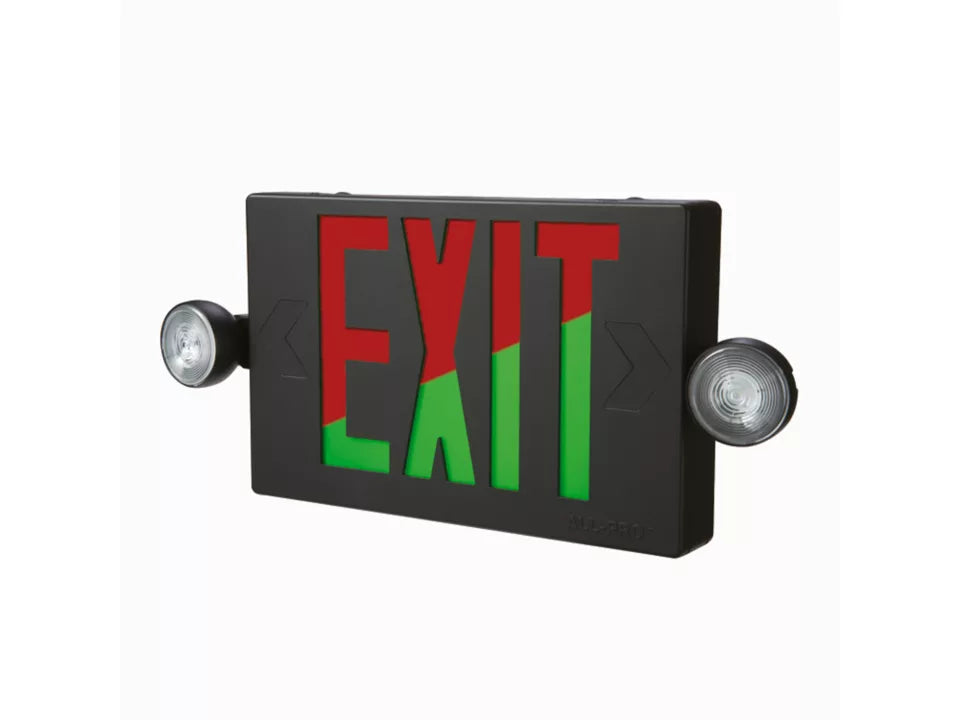

Cooper Lighting Solutions APC7RGBK All-Pro Combination Exit and Emergency Light 4.04W (Ceiling/Wall/End Mount)

Product Description

Cooper Lighting Solutions APC7RGBK is an All-Pro combination exit and emergency light featuring selectable red/green LED legend, integrated LED emergency heads, and a nickel-cadmium backup battery. The unit operates at 4.04 W on dual-voltage input (120/277 V) and mounts to ceiling, wall, or end with a universal J-box pattern. It provides a minimum 90 minutes of emergency runtime and UL damp location listing.

• Selectable red or green LED legend and field-changeable face inserts with snap-in/snap-out chevrons
• Integrated LED emergency heads (3.6 V, 0.78 W) providing up to 17 ft of egress coverage and minimum 90-minute runtime
• Dual-voltage input 120/277 V, nickel-cadmium battery, 5VA flame resistant thermoplastic housing, ceiling/wall/end mounting

Product Highlights

Selectable red/green LED legend; 4.04 W LED operation; minimum 90-minute emergency runtime; UL 924 damp location listed

Product Information

Standard Information

• Brand: COOPER LIGHTING SOLUTIONS
• Manufacturer Part Number: APC7RGBK

Technical Specifications

• Manufacturer: Cooper Lighting Solutions
• Model Number: APC7RGBK
• Product Type: Combination exit and emergency lighting
• Series: APC7RG, APCH7RG
• Lamp Type: LED
• Power Consumption: 4.04 W
• Input Voltage: 120/277 V
• Frequency: 60 Hz
• Input Current: 0.01 A at 277 V
• Emergency Runtime: Minimum 90 minutes
• Battery Type: Nickel cadmium
• Emergency Head Output: 3.6 V, 0.78 W
• Emergency Head Coverage: Up to 17 ft egress coverage
• Mounting Type: Ceiling, wall, end (universal J-box pattern)
• Housing Material: 5VA flame resistant thermoplastic, UV resistant
• Housing Finish: Black
• Legend Options: Selectable red or green
• Face Options: Field selectable single- or double-face; snap-in/snap-out directional chevrons
• Listings: UL 924 damp location listed
• Remote Capability: Remote-capable (H series powers up to two APWR LED heads)
• Type: Combination Exit and Emergency Lighting
