Cooper Lighting Solutions 8apvtld-sl3c3 Led Vapor Tight 8ft

Product Description

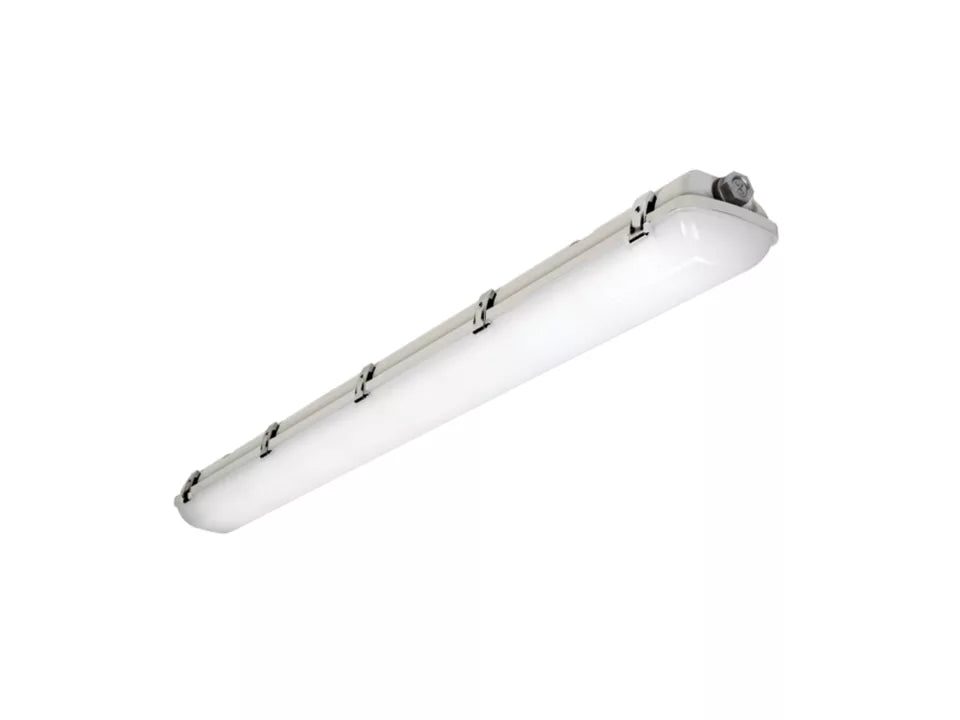

The COOPER LIGHTING SOLUTIONS 8apvtld-sl3c3 is an 8-foot selectable LED vapor tight fixture designed for demanding commercial and industrial environments. It offers field-selectable CCT settings of 3500K, 4000K, and 5000K, along with lumen output selection across 8,000, 10,000, and 12,000 lumens, allowing a single SKU to cover multiple project requirements. The multi-volt driver accepts 120-277V input and supports 0-10V dimming. Efficacy reaches up to 147 lumens per watt, meeting DLC qualification standards. Licensed electricians and electrical contractors are the primary installers for this fixture class.

This fixture is suited for wet and damp locations in commercial, industrial, and institutional settings such as parking garages, warehouses, food processing facilities, manufacturing floors, and covered outdoor areas. The IP65 rating and IK07 impact-rated optical lens make it appropriate for environments with airborne particulates, wash-down exposure, or physical impact risk. Stainless steel latches, a single conduit hub, and mounting hardware are included. The fixture is also enabled for integration with the WaveLinx integrated wireless sensor and control platform, supporting sensor and emergency back-up commercial options.

Key Features

• Selectable CCT: 3500K, 4000K, or 5000K field-adjustable at installation
• Lumen select: 8,000, 10,000, or 12,000 lumens for flexible specification
• Multi-volt input: 120-277V with 0-10V dimming driver
• Durable polycarbonate housing with integral metal gear tray and IK07 impact-rated optical lens
• UL wet location listed and IP65 rated for harsh environment use
• DLC qualified with efficacy up to 147 lumens per watt
• WaveLinx wireless sensor and control platform compatible; sensor and emergency back-up options available
• Stainless steel latches with single conduit hub and mounting hardware included

Compatibility

The 8apvtld-sl3c3 is the 8-foot configuration of the APVT-S Selectable Vaportite product line. It is designed as an OEM LED vapor tight replacement or new-installation fixture for commercial and industrial wet or damp location applications requiring multi-voltage input.

Installation Notes

This fixture must be installed by a licensed electrician in accordance with applicable NEC requirements and local codes. Disconnect and lock out all power before beginning installation or servicing. The single conduit hub entry and included mounting hardware support standard surface or suspended mounting configurations. Verify the driver voltage selector and CCT and lumen settings prior to closing the fixture to avoid reopening after energizing.

Technical Specifications

• Fixture Length: 8 feet
• Lumen Output (Selectable): 8,000 / 10,000 / 12,000 lumens
• CCT (Selectable): 3500K / 4000K / 5000K
• Input Voltage: 120-277V multi-volt
• Dimming: 0-10V
• Efficacy: Up to 147 lumens per watt
• Housing Material: Polycarbonate with integral metal gear tray
• Lens Impact Rating: IK07
• IP Rating: IP65
• Location Rating: UL Wet Location Listed
• Latch Material: Stainless steel
• Controls Compatibility: WaveLinx wireless sensor and control platform
• Certification: DLC Qualified
• Warranty: 5-year limited

Standard Information

• Brand: COOPER LIGHTING SOLUTIONS
• Manufacturer Part Number: 8apvtld-sl3c3
