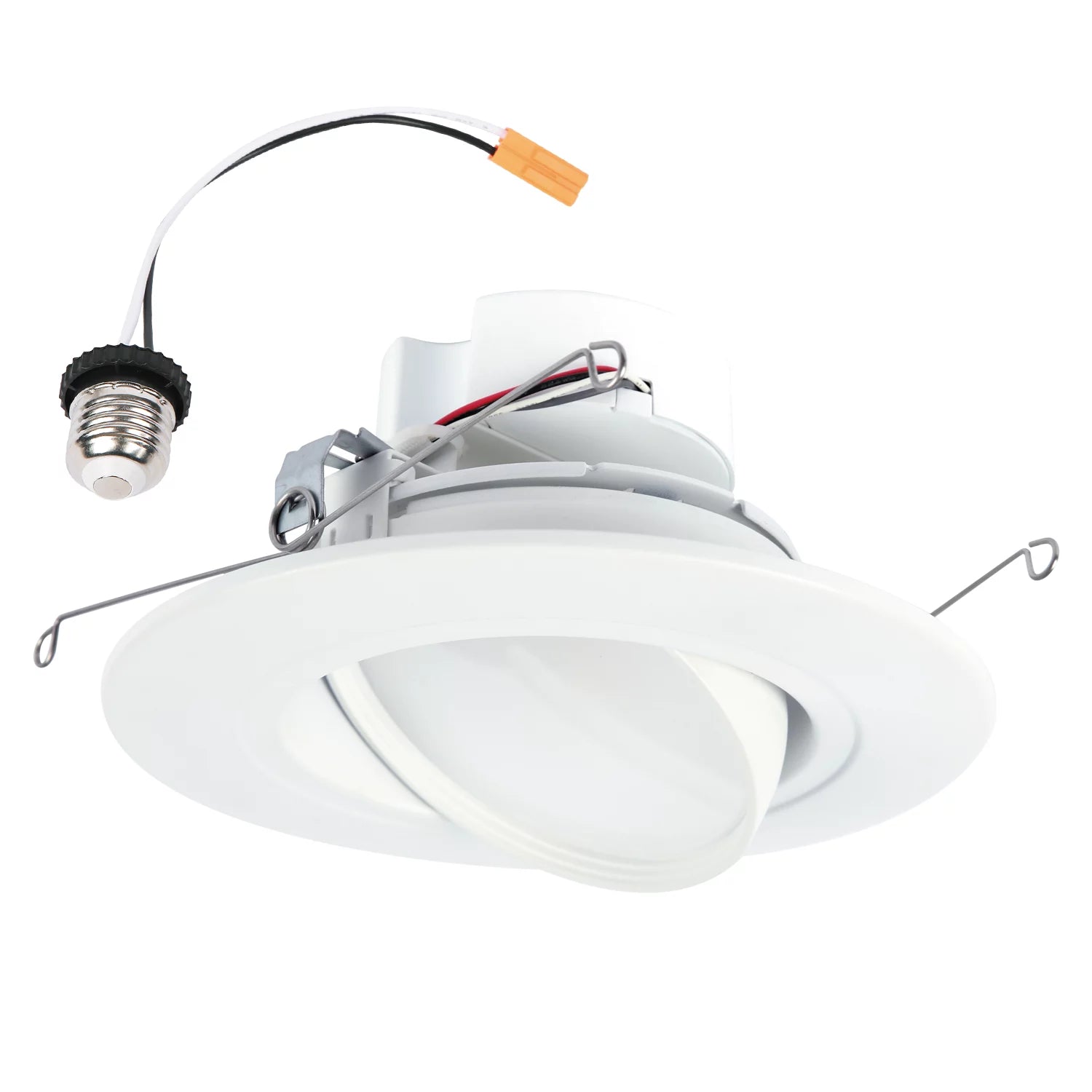

Cooper Lighting RA56LS9FSD2W1EWH Ra56 5-To-6-Inch Adjustable Led Trim

Product Description

The COOPER LIGHTING RA56LS9FSD2W1EWH is a 5/6-inch adjustable recessed LED retrofit module. It features selectable lumens (600/1000), a 90 CRI, and a 6-color field-selectable CCT (2700K, 3000K, 3500K, 4000K, 5000K) with a Dim-to-Warm option. This LED trim is designed for new construction, remodel, and retrofit applications.

• Installs in most 5" or 6" IC (insulation contact) or non-IC housings
• Adjustable gimbal tilts up to 35 degree and rotates 360 degree to aim light where it's needed
• 6-Position Switch: 5-color Field-SeleCCTable (2700K, 3000K, 3500K, 4000K, 5000K) + Dim-to-Warm (3000K dims to 1800K), 90+ CRI

Product Highlights

This adjustable recessed LED trim is ideal for task lighting, sloped ceilings, or wall washing applications. It is AIR-TITE, IC-rated, and ENERGY STAR certified.

Product Information

Standard Information

• Brand: COOPER LIGHTING
• Manufacturer Part Number: RA56LS9FSD2W1EWH
• Country of Origin: CN

Technical Specifications

• Brand Name: Halo
• Family: RA Recessed Adjustable LED Trims
• Lamp Type: LED
• UPC: 080083282999
• Amperage Rating: 0.07A at 120V
• Aperture: 5/6 Inch
• Color Temperature Max: 5000K
• Mounting: Recessed
• Voltage Rating: 120V
• Wattage: 8.8 W
• ARRA: No
• Made In: US
• UNSPSC Code: 39111821
• Category: 5"/6" LED Trims
• Size: 5"/6"
• Style: Gimbal
• Weight: 1.37 lb
• Color Temperature: Selectable, 2700K, 3000K, 3500K, 4000K, 5000K CCT
• Correlated Color Temp: 5000 K
• Lumens: Selectable, 600, 900 Lumens
• Mounting Type: Recessed
• Type: Baffle Adjustable Recessed
• Voltage: 120 Volt
• Fixture Type: Retrofit Kit
• GTiN: 00080083282999
• Product UPC: 08008328299
• Diameter: 5/6 Inch
• Fixture Wattage: 8.8 W
• Series: RA
• Lighting Technology: LED
• Recessed Trim Type: Baffle
• Color Rendering Index (CRI): 90 CRI
• Lens Type: Impact-Resistant Polycarbonate
• Enclosure Type: Air-tite, IC-rated, damp rated, and ENERGY STAR certified
