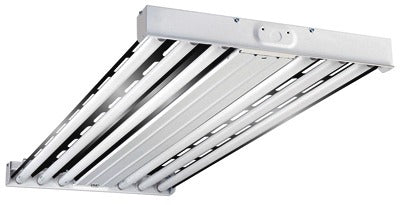

Cooper Lighting HBL654T5HORT1 High Bay T5 Fluorescent Fixture

Product Description

The COOPER LIGHTING HBL654T5HORT1 is a commercial high bay fluorescent fixture from the Metalux F Bay Series, designed for large-volume spaces that require broad, high-intensity illumination. Built to accept six F54WT5 lamps (not included), this fixture operates on a universal electronic ballast rated for 120V to 277V, making it adaptable to a wide range of commercial power configurations. The unit is rated for operation at 0 degrees F, qualifying it for cold-storage and low-temperature environments. UL Listed. Intended for installation by licensed electricians in commercial and industrial applications.

This fixture is suited for commercial and industrial high bay installations such as warehouses, distribution centers, manufacturing floors, gymnasiums, and cold storage facilities. The 2-foot by 4-foot housing accommodates six T5 lamps in a parallel configuration. For optimal light distribution across the floor plane, the manufacturer specifies mounting at 25 feet above grade. The universal voltage ballast simplifies installation in facilities with varying supply voltages from 120V through 277V without requiring ballast substitution.

Key Features

• Six-lamp T5 configuration using F54WT5 lamps for high-output fluorescent illumination
• Universal electronic ballast accepts 120V to 277V supply voltage
• Rated for operation at 0 degrees F, suitable for cold-storage environments
• Optimal mounting height of 25 feet for designed light distribution
• UL Listed for commercial and industrial use
• Lamps sold separately — requires six F54WT5 lamps

Compatibility

Designed as an OEM-style high bay fluorescent fixture within the Metalux F Bay Series, compatible with six F54WT5 T5 fluorescent lamps. Lamps are not included with the fixture.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the circuit at the breaker panel and verify zero voltage before making any wiring connections. Mounting hardware and structural support must be rated for the fixture weight and appropriate for the ceiling or beam structure at the target mounting height. Lamps must be sourced and installed separately prior to commissioning.

Technical Specifications

• Series: Metalux F Bay Series
• Lamp Type: T5 Fluorescent (F54WT5)
• Number of Lamps: 6 (not included)
• Ballast Type: Universal Electronic
• Voltage: 120V to 277V
• Minimum Operating Temperature: 0 degrees F
• Fixture Dimensions: 2 inches x 4 inches nominal housing
• Recommended Mounting Height: 25 feet
• Weight: 17.5 pounds
• Listing: UL Listed
• Package Quantity: 1

Standard Information

• Brand: COOPER LIGHTING
• Manufacturer Part Number: HBL654T5HORT1
