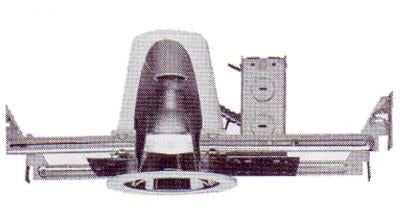

Cooper Lighting H99TAT 4 Inch Recessed Air Tight Housing

Product Description

The COOPER LIGHTING H99TAT is a 4-inch recessed air tight new construction housing designed for non-insulated ceiling applications. It is built for use in 2-inch x 6-inch framing and includes an integral thermal protector for added safety. The housing ships with pre-installed nailless captive bar hangers that span up to 24 inches and fit T-bar spline systems. Hangers reposition to 90 degrees without tools, which speeds up rough-in on framing crews. Junction box is listed for through circuit wiring. Rated for damp locations and carries UL and CSA listings.

This housing is intended for new construction residential and light commercial ceiling installations where air tight performance is required. The 4-inch opening accommodates standard 4-inch recessed trim kits. Knockouts include four 1/2-inch KOs and four non-metallic KOs, with pry-out slots providing strain relief for wiring. Electricians working on wood-frame or metal T-bar ceiling systems in damp-rated environments will find this housing suited to those conditions.

Key Features

• Air tight construction rated for non-insulated ceilings
• Designed for 2-inch x 6-inch framing
• Integral thermal protector for overcurrent protection
• Pre-installed nailless captive bar hangers with up to 24-inch joist span
• Hangers reposition to 90 degrees without tools
• Junction box listed for through circuit wiring
• UL listed, CSA certified, and rated for damp locations

Compatibility

Designed as an OEM-style new construction recessed housing for standard 4-inch recessed lighting trim and fixture assemblies in non-insulated residential and light commercial ceiling applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local jurisdiction codes. De-energize the branch circuit at the panel before making any wiring connections. Use the integral bar hanger system to secure the housing to joists or T-bar spline before trim and fixture installation. Verify the ceiling assembly qualifies as a non-insulated application before installing this housing, as it is not rated for insulated ceiling contact.

Technical Specifications

• Housing Size: 4 inches
• Opening Size: 4.5 inches
• Housing Height: 5.5 inches
• Construction Type: New Construction, Air Tight
• Ceiling Rating: Non-Insulated
• Framing Compatibility: 2 inches x 6 inches construction
• Joist Span: Up to 24 inches
• Knockouts: 4 x 0.5 inch metallic KOs, 4 x non-metallic KOs
• Location Rating: Damp Locations
• Certifications: UL, CSA, IP Rated
• Weight: 13 pounds
• Package Quantity: 6 per package

Standard Information

• Brand: COOPER LIGHTING
• Manufacturer Part Number: H99TAT
