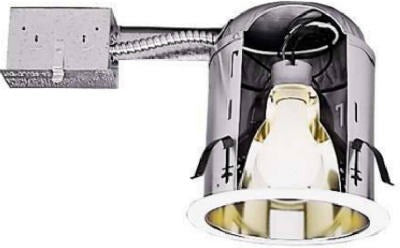

Cooper Lighting H7RICT 6 Inch Remodel Recessed Housing

Product Description

The COOPER LIGHTING H7RICT is a 6-inch remodel recessed housing designed for retrofit installations in existing ceilings where insulation is present. It carries an IC rating, meaning it can be installed in direct contact with insulation without creating a fire hazard. The integral thermal protector provides an additional layer of protection by shutting down the fixture if temperatures exceed safe operating limits. Intended for use in 2-inch by 8-inch joist construction, this housing suits residential and light commercial ceiling installations performed by licensed electricians or qualified contractors.

This housing is built for remodel applications where the ceiling surface is already in place. Pre-installed captive nailless bar hangers extend to a 24-inch joist span, and the hanger bars can be repositioned 90 degrees without tools, making tight attic or plenum work more manageable. The adjustable socket bracket accommodates different lamp positions, and the plaster frame includes a locking screw for the hanger bars while adjusting to varying ceiling thicknesses. The housing fits T-bar spline framing as well as standard joist construction.

Key Features

• IC-rated for direct contact with insulation in insulated ceiling applications
• Integral thermal protector shuts down housing if operating temperature exceeds safe limits
• Pre-installed captive nailless bar hangers span up to 24 inches between joists
• Bar hangers reposition 90 degrees without tools for flexible installation
• Junction box listed for through-circuit wiring, including 7 half-inch knockouts and 4 non-metallic knockouts with pry-out slots and strain relief
• Plaster frame with locking screw adjusts to ceiling thickness and fits T-bar spline
• UL and CSA listed for damp locations; IP rated

Compatibility

Designed for remodel recessed lighting installations in 2-inch by 8-inch joist construction with insulated or non-insulated ceilings; compatible with Halo-series 6-inch trim accessories designed for IC-rated remodel housings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local building codes. Shut off circuit power at the breaker before beginning any wiring work and verify the circuit is de-energized with a non-contact voltage tester. Do not exceed the maximum lamp wattage rating marked on the housing label. Confirm the ceiling opening diameter and joist spacing before securing the bar hangers to avoid repositioning after drywall finishing.

Technical Specifications

• Housing Size: 6 inches
• Actual Housing Height: 7.5 inches
• Ceiling Opening Diameter: 6.5 inches
• Joist Construction: 2 inches x 8 inches
• Maximum Joist Span: 24 inches
• Insulation Rating: IC Rated (insulated ceiling approved)
• Thermal Protection: Integral thermal protector included
• Knockouts: 7 half-inch metal knockouts; 4 non-metallic knockouts with pry-out slots and strain relief
• Listings: UL, CSA, Damp Location, IP Rated
• Package Quantity: 6 per package
• Weight: 20 pounds

Standard Information

• Brand: COOPER LIGHTING
• Manufacturer Part Number: H7RICT
