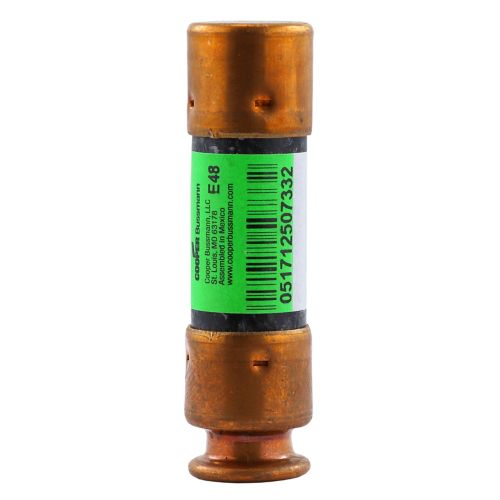

Cooper Industries FRN-R-40 Bussmann FRN-R-40 40amp Fusetron Dual-Element Time-Delay Fuse, Class RK5, 250Vac/125Vdc

Product Description

The COOPER INDUSTRIES FRN-R-40 is a Bussmann FRN-R-40 40amp Fusetron dual-element, time-delay fuse, Class RK5, 250Vac/125Vdc. This Eaton Bussmann Series Class RK5 fuse is a current limiting fuse with an interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc.

• Time-delay
• Dual-element
• Current limiting
• Finger safe

Product Highlights

The COOPER INDUSTRIES FRN-R-40 fuse is ideal for use in circuits that have inrush currents. It provides superior protection for motors, transformers, and other inductive loads.

Product Information

Standard Information

• Brand: COOPER INDUSTRIES
• Manufacturer Part Number: FRN-R-40

Technical Specifications

• Product Name: Eaton Bussmann series FRN-R fuse
• Catalog Number: FRN-R-40
• UPC: 051712101783
• Product Length/Depth: 3 in
• Product Height: 0.81 in
• Product Width: 0.81 in
• Amperage Rating: 40 A
• Interrupt rating: 20 kAIC at 125 Vdc 200 kAIC at 250 Vac
• Response time: 10 sec at 500%
• Voltage rating: 250 Vac, 125 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Class: Class RK5
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Finger safe
• Product Type: Fuse
