Product Description

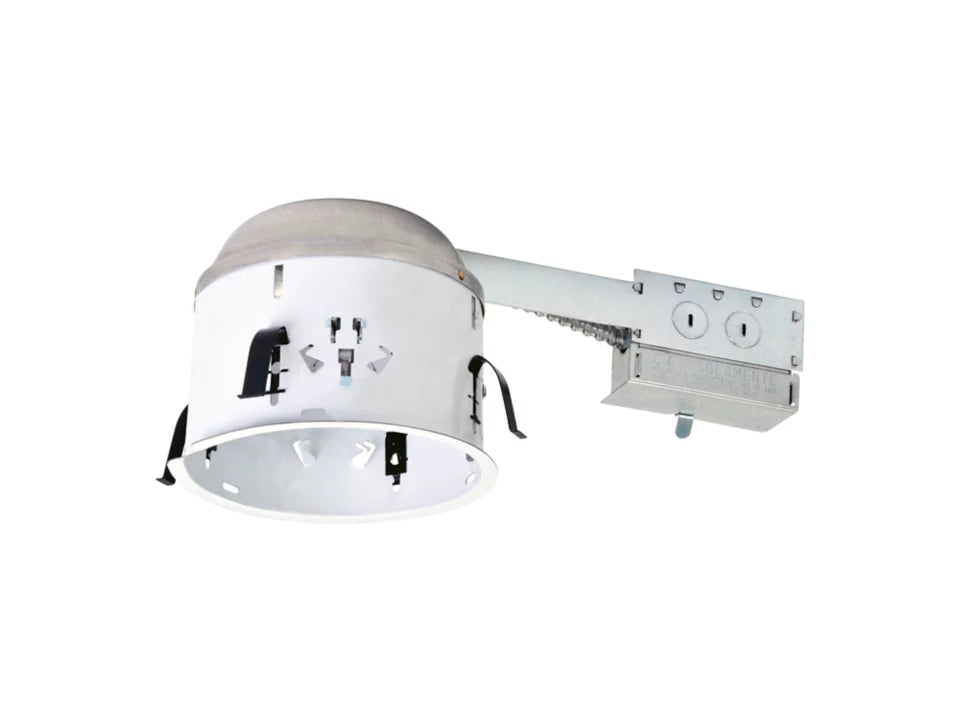

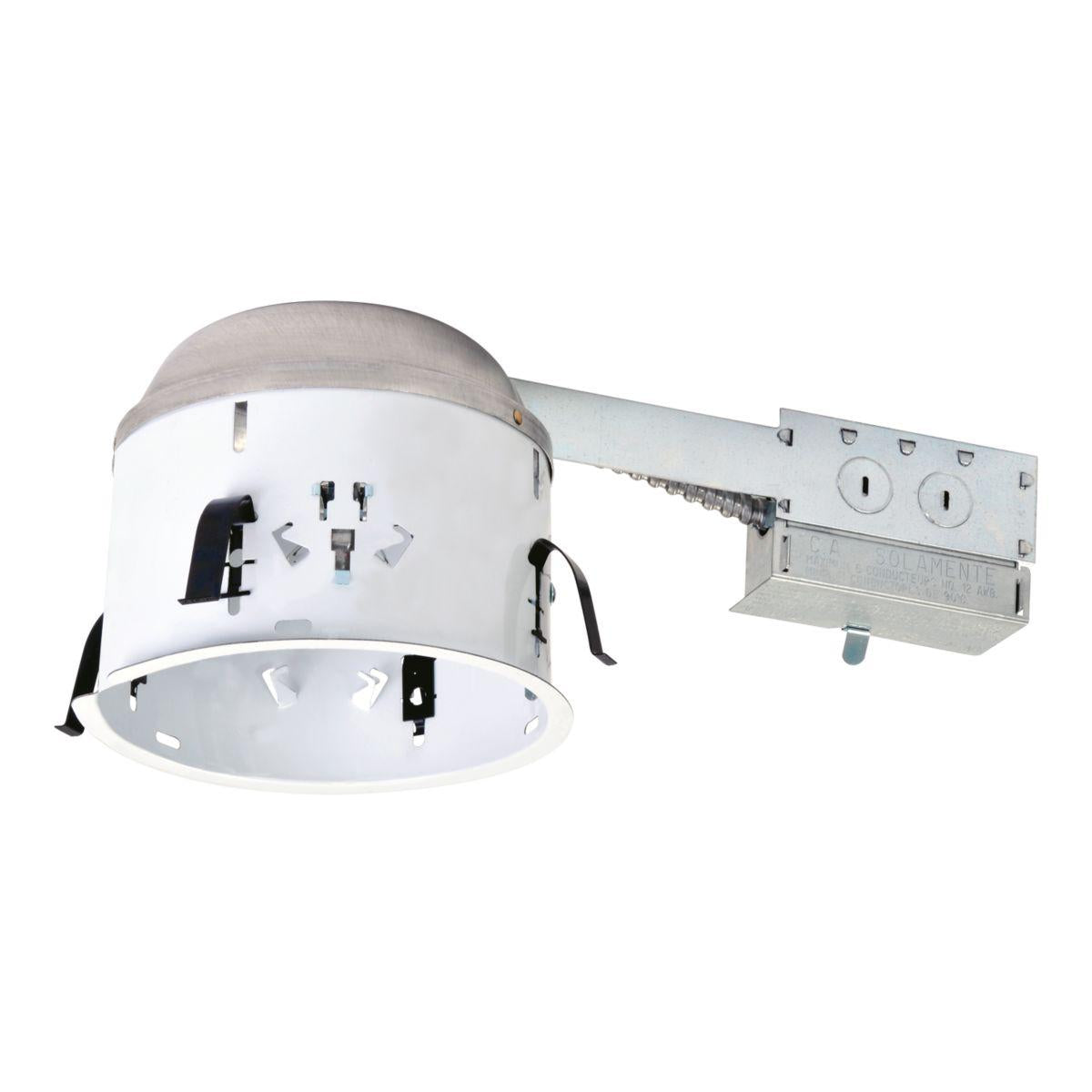

The Halo H27RT AIR-TITE line voltage remodel shallow recessed lighting housing is designed for remodeling use in shallow ceilings. It uses an incandescent lamp and is suitable for non-insulated insulation. This housing operates at 120 VAC and requires a 6-1/4 in ceiling opening. The housing is constructed from steel.
- Designed for remodeling in shallow ceilings
- Suitable for non-insulated insulation
- Quick connect wiring connectors included in junction box
Product Highlights
The Halo H27RT is ideal for creating various lighting effects in non-insulated shallow ceilings. It features quick connect wiring and accommodates 1/2 and 5/8 in ceiling material.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: H27RT
-
Country of Origin: Mexico
Technical Specifications
-
Lamp Type: Incandescent
-
Voltage: 120 VAC
-
Ceiling Opening: 6.25 in
-
Housing Material: Steel
-
Insulation Type: Non-Insulated
-
Lens: N/A
-
Type: 6IN H27 Shallow Housing
-
Wattage: N/A
-
Standard: UL Listed - Damp Location;CSA Certified
-
Sub Brand: H27RT Series
-
Brand Name: Cooper Halo
-
Application: Remodel
-
Ballast Type: N/A
-
Manufacturer: HALO
-
Voltage Rating: 120 V
-
Amperage Rating: 0.625 at (120V)
-
Number Of Lamps: 1
-
Special Features: Quick Connect wiring connectors included in junction box
-
Width: 13.25 in
-
Suitable For Use With: HALO® Non-Insulated/Shallow Ceilings/6 in Trim
-
Diameter: 6 in
-
Standard & Approvals: ARRA, BuyAmerican Act, cULus Listed, RoHS Compliant
-
Features & Benefits: Quick connect wiring connectors included in junction box
NM cable pry outs and conduit knockouts in junction box
Remodel springs accommodate 1/2 and 5/8 in ceiling material
Thermally protected
Die-formed housing
Shallow ceiling housing
-
Lamp Type/Designation: 65/75 Watt R30/BR30/PAR30 Incandescent
-
Manufacturer Name: Cooper Lighting
-
Manufacturer Part Number: H27RT
-
Country Of Origin: Mexico
-
Feature8: Four remodel clips secure housing
-
UNSPSC: 39111515
-
Energy Star Flag: No
-
RoHS Flag: Contact manufacturer
-
For Use With: Non-Insulated Shallow Ceilings and for Use in Insulated Ceilings if Insulation is 3 Inch From All Sides of Housing
-
Shape: Round
-
Mounting: Recessed
-
Lamp Wattage: 65/75 Watt
-
Finish: White Powder Coated
-
Dimmable: No
-
Cutout Size: 6-7/8 Inch
-
Construction: 20 Gauge Cold Rolled Steel
-
Item Name: Shallow Ceiling Remodel Recessed Housing
-
Standards: UL Listed, CSA Certified
-
Component Type: Housing
-
Trim Size: 6 Inch
-
Lamp Included: No
-
Ceiling Type: Non-Insulated
-
Junction Box: Quick Connect wiring connectors included, NM cable pry-outs and conduit knockouts
-
Remodel Springs: Accommodate 1/2" and 5/8" ceiling material
-
Protection: Thermally protected
-
Housing: Die-formed housing, Shallow ceiling housing
-
Volts AC: 120
-
Length: 14.500 in
-
Air Rating: Airtight
-
Housing Compatibility: H27
-
Fixture Type: 6 in Housing
-
Insulation Rating: Non-IC
-
Depth: 13.25 in.
-
Height: 5 in.
-
Nominal Width: 13 in.
-
Airtight: No
-
Housing Type: Remodel Housing
-
Light Direction: Down Lighting
-
Material: Steel
-
Number of Light Source(s): 1
-
Shallow Ceiling Compatible: Yes
-
Power Source: Hardwired
-
Voltage Type: Line Voltage (110-120V)
-
Approved for Commercial Use: Yes
-
Certifications: UL
-
Collection: H27
-
Energy Star: No
-
Fire Rated: No
-
IC Rating: Non-IC
-
Location Rating: Damp Location
