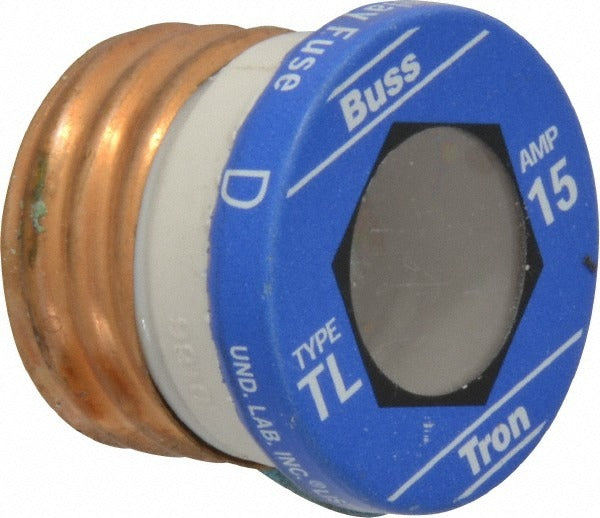

Cooper Bussmann TL-15 Plug Time Delay Fuse 15A

Product Description

The COOPER BUSSMANN TL-15 is a plug-style, time-delay fuse rated at 15 amps and 125 volts with a 10 kA RMS symmetrical interrupting capacity. The plastic body measures 2.25 inches in diameter and fits standard Edison-base fuse holders commonly found in residential load centers, fused disconnects, and older panel configurations. The time-delay characteristic allows brief motor-start inrush currents to pass without nuisance opening while still providing reliable overcurrent protection for branch circuits. Licensed electricians and HVAC technicians install this fuse as part of routine maintenance or panel service on 125-volt branch circuits.

The TL-15 is suited for residential and light commercial applications where an Edison-base plug fuse socket is present. Typical installations include fused main panels, sub-panels, and equipment disconnects that require a time-delay fuse on 125-volt single-phase circuits. The time-delay rating makes this fuse appropriate for circuits serving small motor loads such as fans and pumps where momentary inrush current would trip a standard fast-acting fuse. Package quantity is 1 unit per package with a minimum order quantity of 4.

Key Features

• 15-amp rating with time-delay characteristic for motor-load compatibility
• 125-volt AC rated for standard residential branch circuits
• 10 kA RMS symmetrical interrupting capacity
• 2.25-inch diameter plastic plug body fits Edison-base fuse holders
• UL Listed under Guide JEF File E12112 and CE Certified per standard 248-11

Compatibility

Designed as an OEM-style replacement plug time-delay fuse for residential and light commercial Edison-base fuse holders rated for 125-volt, 15-amp branch circuits.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC). Always disconnect power to the panel or disconnect before removing or installing any fuse. Verify that the replacement fuse amperage and voltage ratings match the circuit requirements before installation. Do not substitute a higher-amperage fuse in a circuit that calls for a 15-amp device.
