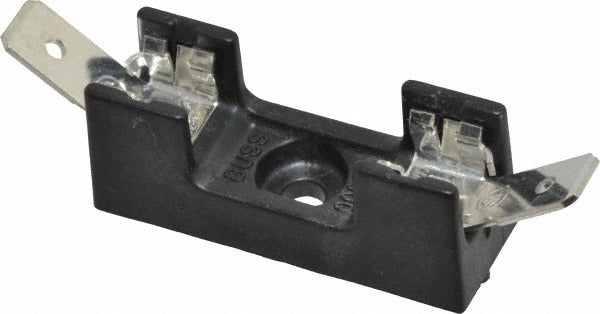

Cooper Bussmann S-8202-1-R 1-pole 30A Fuse Block

Product Description

The COOPER BUSSMANN S-8202-1-R is a single-pole, bolt-in fuse block rated for 30 amps at 300 VAC/VDC. It accepts 3AG-class fuses measuring 0.25 inches in diameter by 1.25 inches in length and features quick-connect wire termination for fast, reliable circuit connections. The block itself measures 2 inches long by 12.7 mm wide by 14.3 mm high and is rated for operation up to 266 degrees F. Licensed electricians and panel technicians install this type of component in control panels, equipment enclosures, and low-voltage distribution assemblies where individual circuit fuse protection is required.

This fuse block is suited for both AC and DC applications at up to 300 volts, making it a practical choice for industrial controls, HVAC equipment controls, and electrical distribution panels in light commercial and residential settings. Its bolt-in mounting style provides a secure, vibration-resistant installation. The quick-connect termination accepts standard spade or push-on connectors, simplifying wiring during panel builds or field service calls.

Key Features

• Single-pole design rated 30 amps at 300 VAC/VDC
• Compatible with 3AG fuse class, 0.25 inches diameter by 1.25 inches length
• Bolt-in mounting for secure, vibration-resistant panel installation
• Quick-connect wire termination for fast field wiring
• Maximum operating temperature of 266 degrees F
• CE Certified, CSA Certified, UL Recognized, and RoHS Compliant

Compatibility

Designed for use with 3AG-class cylindrical fuses measuring 0.25 inches in diameter by 1.25 inches in length. Suitable for 300 VAC or 300 VDC single-pole fused circuit protection applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit and verify zero voltage at all terminals before mounting or wiring the fuse block. Ensure the selected fuse rating does not exceed the 30-amp block rating. Confirm terminal connections are fully seated before restoring power.
