Cooper Bussmann RLNL56109FSD2W1EWH Led Recessed Downlight

Product Description

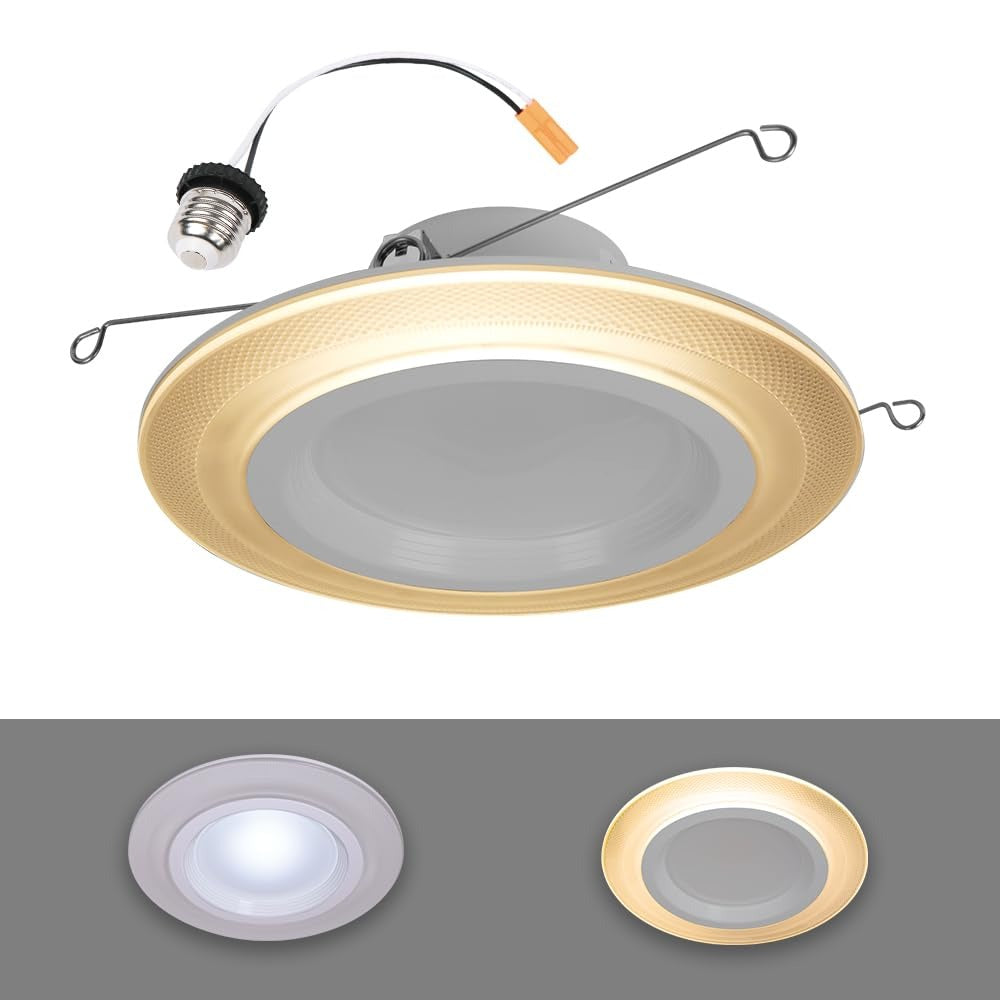

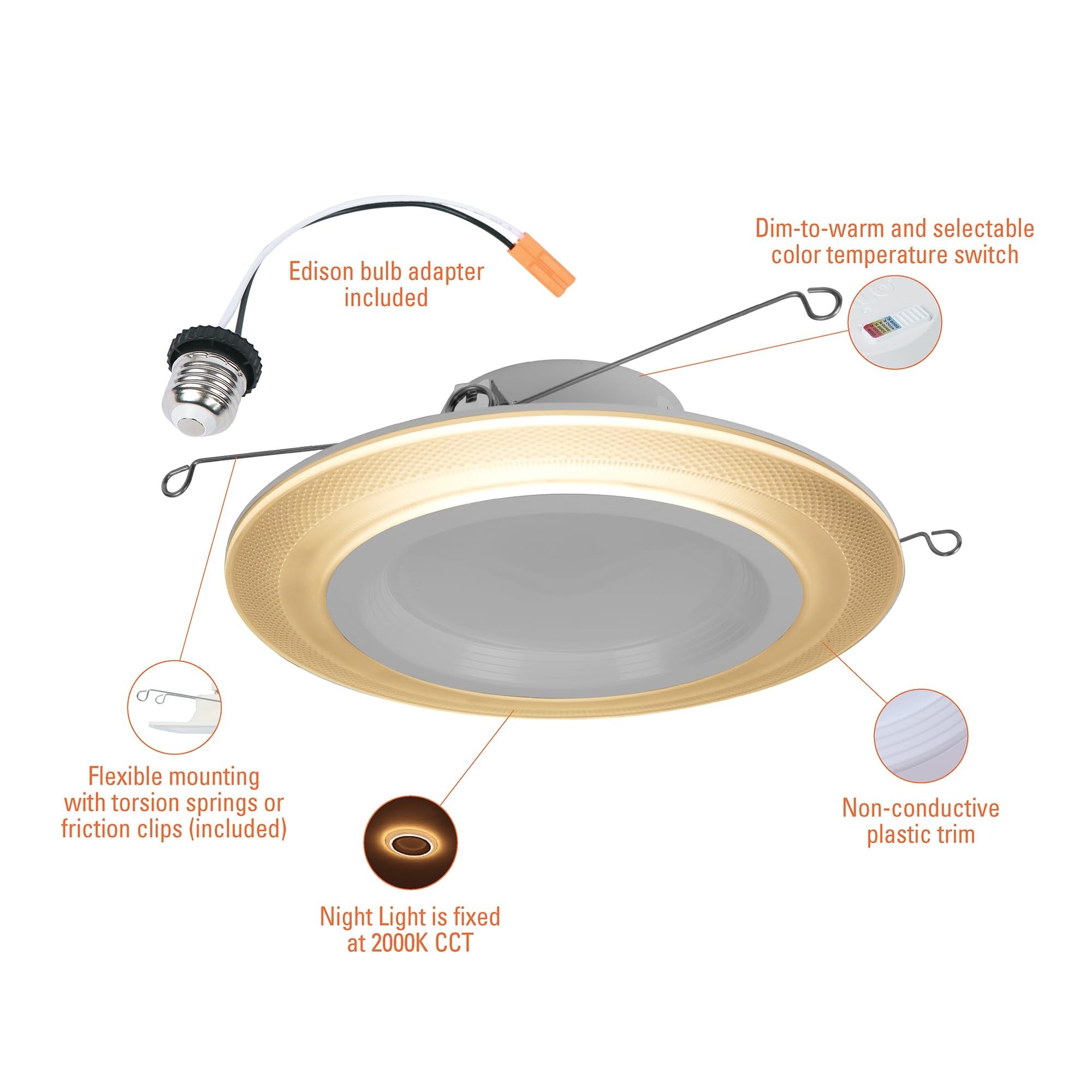

The COOPER BUSSMANN RLNL56109FSD2W1EWH is a dual-mode LED recessed downlight module designed for 5-inch and 6-inch recessed housing cans. It delivers 1000 lumens in standard downlight mode and switches to a low-level night light mode using the existing wall switch - no additional wiring or smart controls required. The fixture offers five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K) plus a dim-to-warm option, all adjustable directly on the fixture before installation. The polycarbonate construction keeps weight low and the slim 2.56-inch depth fits within standard housing envelopes. Electrical and lighting contractors, as well as experienced retrofitters, are the primary installers for this type of product.

This module is suited for retrofit and new-construction residential applications including bedrooms, bathrooms, hallways, nurseries, children's rooms, and stairwells where a secondary low-level light source is useful overnight. It also fits light commercial spaces that use standard 5-inch or 6-inch recessed can housings. The mode-switching function is triggered by toggling the wall switch off and on within 1.5 seconds, making it a practical upgrade with no change to existing switch wiring. The selectable CCT range supports projects where a single SKU must serve multiple room environments with different desired color tones.

Key Features

• Dual-mode operation: full downlight mode and low-level night light mode, switched via existing wall switch toggle within 1.5 seconds
• 1000 lumens output in downlight mode for general area illumination
• Five selectable color temperatures - 2700K, 3000K, 3500K, 4000K, 5000K - plus dim-to-warm, set directly on the fixture
• Retrofit-compatible with standard 5-inch and 6-inch new-construction and remodel recessed housings

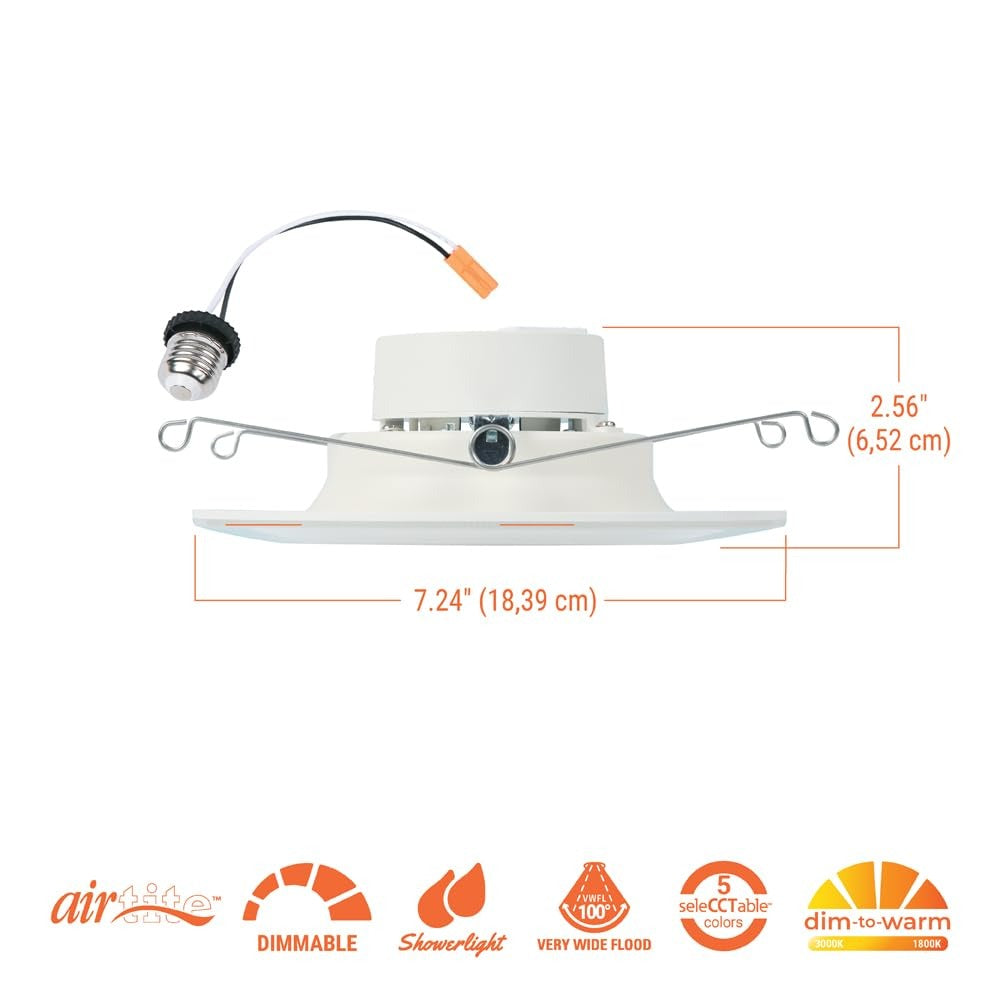

• Polycarbonate construction, measuring 7.24 inches x 7.24 inches x 2.56 inches
• No additional wiring required for night light mode activation

Compatibility

Compatible with standard 5-inch and 6-inch recessed light fixture housings, including both new-construction and remodel (old-work) can types. Suitable as a direct retrofit replacement for existing incandescent or CFL recessed trim modules in residential and light commercial applications.

Installation Notes

Installation is performed by a licensed electrician or qualified electrical contractor in accordance with NEC requirements and local code. Power to the circuit must be shut off at the breaker before handling the housing or making any wiring connections. Color temperature selection should be made on the fixture selector prior to final installation, as access to the selector after ceiling mounting may be limited. Do not exceed the housing's rated insulation contact or non-insulation contact designation when choosing a compatible can.
