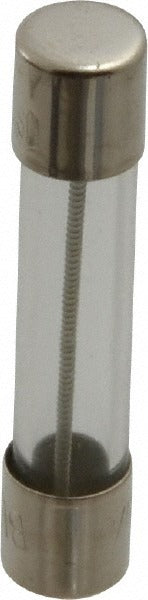

Cooper Bussmann MDL-6/10-R Time Delay Cartridge Fuse 0.6A

Product Description

The COOPER BUSSMANN MDL-6/10-R is a miniature time delay cartridge fuse rated at 0.6 amps. It features a glass body measuring 1.25 inches in overall length and 0.25 inches in diameter. The time delay characteristic allows brief inrush currents to pass without nuisance opening, making it well suited for circuits with motor loads, transformers, or capacitive startup draw. Licensed electricians and electronics technicians install this fuse in control panels, instrumentation, and low-current branch circuits. It carries an interrupting rating of 10,000 amps at 125 volts and 35 amps at 250 volts.

This fuse is used in residential and light commercial control circuits, industrial instrumentation panels, and electronic equipment requiring a compact, low-amperage overcurrent device. Its glass body allows visual inspection of the element without removing the fuse from the holder. Typical applications include HVAC control boards, metering equipment, and general-purpose fuse blocks that accept standard 0.25-inch diameter cartridge fuses.

Key Features

• Time delay action accommodates brief inrush currents without nuisance tripping
• Glass body enables visual fuse inspection without removal
• Interrupting rating of 10,000 amps at 125 volts and 35 amps at 250 volts
• Compact miniature form factor: 1.25 inches OAL, 0.25 inches diameter
• CE Certified, CSA Class 1422-01 Certified, UL Listed (Guide JDYX File E19180), and RoHS compliant
• Meets MIL-STD-202 Method 204 for environmental and mechanical durability

Compatibility

Designed as an OEM-style replacement for standard 0.25-inch diameter miniature cartridge fuse holders rated for time delay, low-amperage overcurrent protection applications.

Installation Notes

Fuse replacement should be performed by a qualified electrician or instrumentation technician. De-energize and lock out the circuit before removing or installing any fuse. Confirm the replacement fuse amperage, voltage rating, and time delay classification match the original before installation. Never substitute a higher-amperage fuse or a fast-acting fuse for a specified time delay device.
