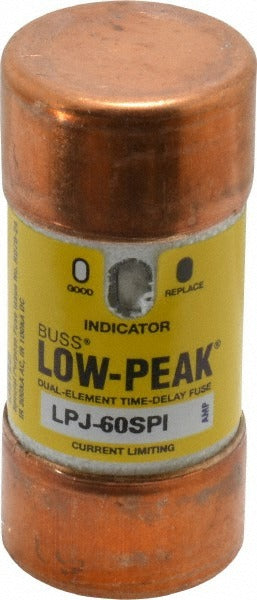

Cooper Bussmann LPJ-60SPI 60A Class J Time Delay Fuse

Product Description

The COOPER BUSSMANN LPJ-60SPI is a Class J time delay cartridge fuse rated at 60 amps for use in industrial and commercial electrical systems. It features a dual-element design that tolerates temporary inrush currents while still providing fast, reliable overcurrent protection under fault conditions. The fuse body measures 27 mm in diameter and 60.30 mm in length, fitting standard Class J fuse holders. At 0.18 pounds, it is a compact component with a high interrupting rating of 100 kA at DC and 300 kA at AC (RMS), making it suitable for demanding service environments where high available fault current is a concern.

This fuse is used in panel boards, motor control centers, and other Class J fuse holder applications in residential, commercial, and industrial settings. The indicating feature signals when the fuse has opened, helping electricians quickly identify a blown fuse during troubleshooting without removing it from the holder. Its general-purpose classification makes it a common choice for branch circuit and feeder protection in a wide range of electrical distribution equipment.

Key Features

• 60-amp time delay rating accommodates motor inrush and transformer magnetizing currents
• Dual-element construction provides both overload and short-circuit protection
• High interrupting rating: 100 kA at DC, 300 kA at AC (RMS)
• Indicating design shows fuse status without removal from holder
• Class J form factor fits standard Class J fuse holders
• UL Listed, CSA Certified, CE Certified, and RoHS Compliant

Compatibility

Designed for use with standard Class J fuse holders rated for 60-amp, time delay cartridge fuses.

Installation Notes

Installation and replacement of this fuse must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before removing or installing the fuse. Use an insulated fuse puller rated for the voltage and current of the circuit. Verify the replacement fuse class, ampere rating, and voltage rating match the original before restoring power.
