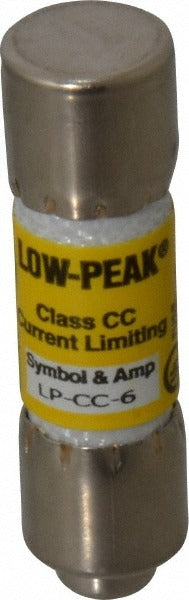

Cooper Bussmann LP-CC-6 Time Delay Cartridge Fuse 6A Cc

Product Description

The COOPER BUSSMANN LP-CC-6 is a Class CC time delay cartridge fuse rated at 6 amps, designed for use in industrial control panels, motor branch circuits, and related low-voltage electrical equipment. It features a dual-element construction that tolerates normal motor inrush and transformer inrush currents without nuisance opening, while still interrupting true fault currents quickly. The fuse body measures 10.3 mm in diameter and 1.5 inches in overall length. It carries an interrupting rating of 200 kA at AC (RMS) and 20 kA at DC, making it suitable for high-fault-current environments where Class CC form factor is specified.

The LP-CC-6 is used in commercial and industrial electrical systems where Class CC fuseholders are installed. Typical applications include motor control centers, combination motor starters, control transformers, and machine tool panels. The Class CC form factor is recognized for its rejection feature, which prevents substitution of lower-rated fuses and helps maintain system coordination. Licensed electricians and industrial maintenance technicians are the primary installers of this fuse type.

Key Features

• Class CC rejection-style cartridge body prevents installation of non-CC fuses in Class CC fuseholders
• Time delay dual-element construction tolerates motor and transformer inrush without nuisance tripping
• 200 kA interrupting rating at AC (RMS) for high-fault-current industrial environments
• 20 kA interrupting rating at DC
• Compact 10.3 mm diameter body fits standard Class CC fuse holders
• CE Certified, CSA Certified (Class 1422-02 File 53787), and UL Listed (248-4 Guide JDDZ File E4273)

Compatibility

Designed for use in standard Class CC fuseholders. No specific compatible model numbers or replacement part numbers were stated in the product data.

Installation Notes

Installation and replacement of fuses in live panels must be performed by a qualified electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before removing or installing this fuse. Use an appropriate fuse puller rated for the fuseholder type. Verify that the fuseholder is rated for Class CC fuses and that the circuit voltage and amperage do not exceed the fuse ratings.
