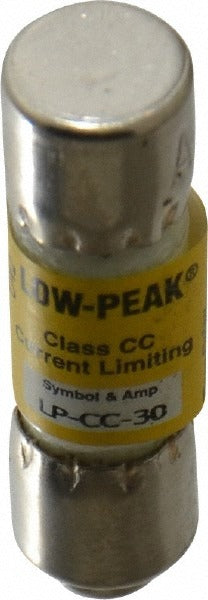

Cooper Bussmann LP-CC-30 Time Delay Fuse 30A Cc Class

Product Description

The COOPER BUSSMANN LP-CC-30 is a CC-class, time delay cartridge fuse rated at 30 amps for use in industrial and commercial electrical systems. Built with a dual-element design, it tolerates brief inrush currents without nuisance tripping while providing reliable overload and short-circuit protection. The fuse measures 1.5 inches in length and 10.3 mm in diameter, fitting standard CC-class fuse holders. It carries an interrupting rating of 200 kA at AC (RMS) and 20 kA at DC, making it suitable for demanding branch circuit and control circuit applications. Licensed electricians and industrial maintenance technicians are the primary installers.

This fuse is designed for use in control panels, motor control circuits, and branch circuit protection in commercial and light industrial settings. The CC-class form factor is widely used in combination motor controllers, drives, and transformer primary circuits where time delay characteristics are required to ride through motor starting currents. Its compact cartridge body seats into standard CC-class fuse holders and disconnects.

Key Features

• 30-amp, CC-class time delay cartridge fuse for control and branch circuit protection
• Dual-element construction allows inrush tolerance while protecting against sustained overloads
• 200 kA interrupting rating at AC (RMS) for high fault-current environments
• 20 kA interrupting rating at DC
• Compact 1.5-inch length and 10.3 mm diameter fits standard CC fuse holders
• UL Listed, CSA Certified, CE Certified, and RoHS Compliant

Compatibility

Designed as an OEM-style replacement for CC-class fuse holders and disconnects requiring a 30-amp time delay cartridge fuse with a 10.3 mm diameter body.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always de-energize and lock out the circuit before removing or installing fuses. Confirm the fuse holder is rated for CC-class cartridge fuses and verify the circuit voltage and amperage do not exceed the fuse ratings. Do not substitute fuse classes or bypass protective devices.
