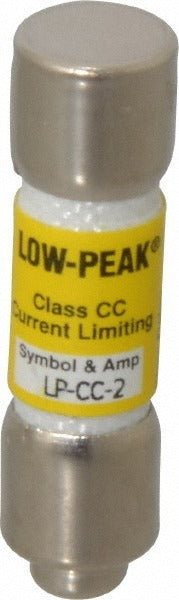

Cooper Bussmann LP-CC-2 Cc Time Delay Fuse 2A

Product Description

The COOPER BUSSMANN LP-CC-2 is a Class CC time delay cartridge fuse rated at 2 amps, designed for general-purpose overcurrent protection in industrial control panels, motor control circuits, and low-voltage distribution systems. It measures 1.5 inches in overall length with a 0.406-inch (10.3 mm) diameter body. The time delay characteristic allows the fuse to ride through harmless inrush currents while still providing fast response to sustained overloads and short circuits. Licensed electricians and industrial maintenance technicians install this fuse as part of UL-listed and CSA-certified protection schemes. It carries a 200 kA AC (RMS) interrupting rating and a 20 kA DC interrupting rating, making it suitable for high-fault-current environments.

The LP-CC-2 is used in residential, commercial, and light industrial applications wherever Class CC fuse holders are specified. Typical installations include motor starters, control transformers, and panel feeders requiring coordinated overcurrent protection. Its cartridge form factor fits standard CC fuse clips and fuse holders. The two-element construction provides the dual functionality of overload time delay and short-circuit protection in a single compact body.

Key Features

• Class CC fuse classification for use with CC-rated holders and fuse blocks
• 2-amp rating with time delay characteristic to handle normal inrush without nuisance opening
• 200 kA AC (RMS) interrupting rating for high-fault-current installations
• 20 kA DC interrupting rating for DC circuit applications
• Dual-element cartridge body, 1.5 inches long and 10.3 mm in diameter
• CE Certified, CSA Class 1422-02 Certified, and UL Listed 248-4

Compatibility

Designed for use in standard Class CC fuse holders and fuse blocks accepting cartridge fuses with a 10.3 mm diameter and 1.5-inch overall length.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize and lockout/tagout the circuit before replacing fuses. Use an insulated fuse puller rated for the voltage and current of the circuit when removing or inserting cartridge fuses. Never replace a fuse with one of a higher ampere rating, as this will defeat the overcurrent protection for which the circuit was designed.
