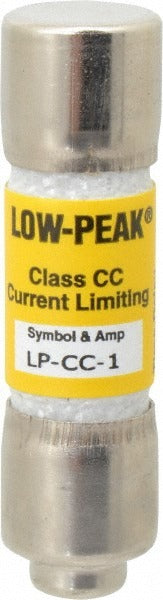

Cooper Bussmann LP-CC-1 Time Delay Cartridge Fuse 1A Cc

Product Description

The COOPER BUSSMANN LP-CC-1 is a CC-class, time delay cartridge fuse rated at 1 ampere for use in industrial and commercial control circuits. It features a dual-element design that provides time delay characteristics, allowing temporary inrush currents to pass without nuisance opening while still providing reliable overcurrent protection. The fuse body measures 10.3 mm in diameter and 1.5 inches in overall length. With an AC interrupting rating of 200 kA (RMS) and a DC interrupting rating of 20 kA, the LP-CC-1 is suited for demanding electrical environments where high fault-current capacity is required. Licensed electricians and industrial controls technicians are the primary installers.

The LP-CC-1 is used in motor control centers, control panels, and branch circuit protection applications where CC-class fuse holders are specified. The time delay design makes it appropriate for protecting small motors and transformer primaries that draw brief inrush currents on startup. This fuse mounts in a standard CC-class fuse holder and is a common fit in residential, light commercial, and industrial control wiring systems.

Key Features

• CC-class time delay dual-element cartridge fuse rated at 1 amp
• High interrupting capacity: 200 kA at AC (RMS) and 20 kA at DC
• Overall dimensions: 1.5 inches length, 10.3 mm diameter for CC fuse holder compatibility
• CE Certified, CSA Class 1422-02 File 53787 Certified, and UL Listed 248-4 Guide JDDZ File E4273
• Two-element construction allows time delay on inrush without sacrificing overload response

Compatibility

Designed for use with CC-class fuse holders. Installs in control panels and motor control applications specifying CC-class time delay fuses.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always de-energize and lock out the circuit before removing or installing fuses. Use a fuse puller rated for this fuse class to avoid contact with live components. Verify that the fuse holder is rated for CC-class fuses and that the circuit voltage and amperage do not exceed the fuse ratings.
