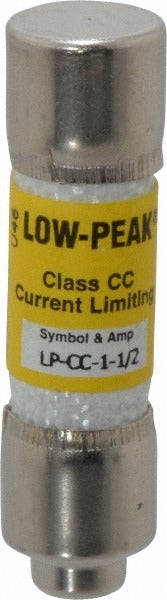

Cooper Bussmann LP-CC-1-1/2 Time Delay Fuse 1.5A Cc

Product Description

The COOPER BUSSMANN LP-CC-1-1/2 is a Class CC time delay cartridge fuse rated at 1.5 amps. It is designed for general-purpose overcurrent protection in control circuits, motor control centers, and industrial panel applications. The cartridge body measures 10.3 mm in diameter and 1.5 inches (38.1 mm) in length, making it a compact fit for standard CC-class fuse holders. With an interrupting rating of 200 kA at AC (RMS) and 20 kA at DC, it provides high fault-current capacity appropriate for demanding electrical environments. Licensed electricians and industrial maintenance technicians are the primary installers of this component.

This fuse is suited for residential, commercial, and light industrial control panel applications where Class CC fusing is specified. Its time delay characteristic allows it to tolerate brief inrush currents common in motor and transformer circuits without nuisance tripping, while still responding quickly to sustained overcurrent conditions. The dual-element construction supports this behavior reliably across its rated service life.

Key Features

• Class CC fuse rated at 1.5 amps with time delay characteristics
• High interrupting rating: 200 kA at AC (RMS) and 20 kA at DC
• Dual-element construction for inrush tolerance without nuisance tripping
• Compact cartridge body: 10.3 mm diameter, 38.1 mm overall length
• Mounts in standard CC-class fuse holders
• CE Certified, CSA Certified, and UL Listed to applicable standards

Compatibility

Designed for use in standard Class CC fuse holders. Consult your panel or fuse holder documentation to confirm CC-class fuse sizing requirements before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before removing or installing any fuse. Verify the fuse holder is rated for Class CC cartridge fuses and that the circuit voltage and amperage fall within the fuse rating before energizing.
